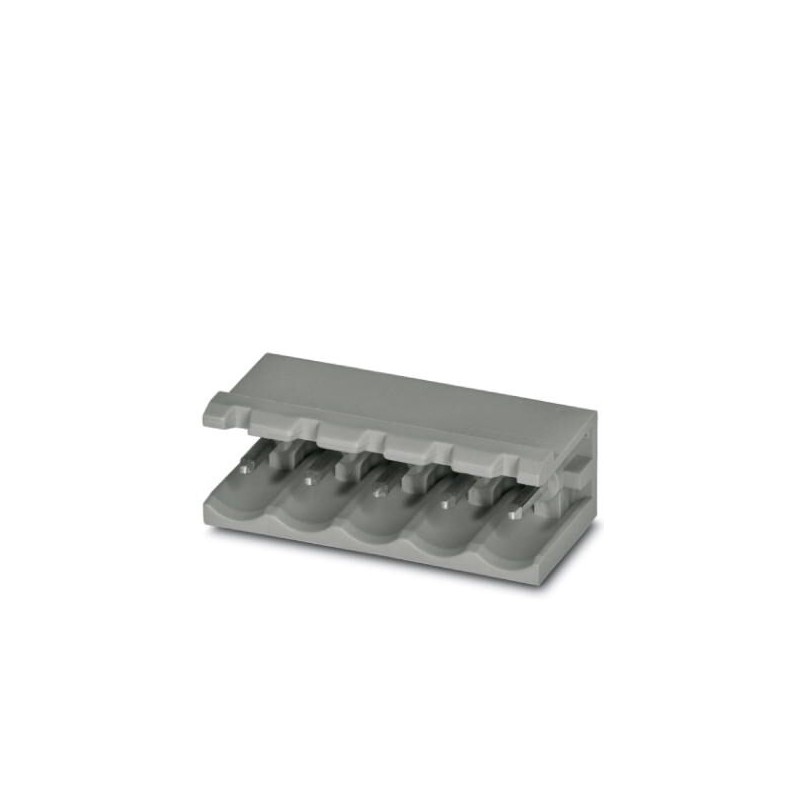

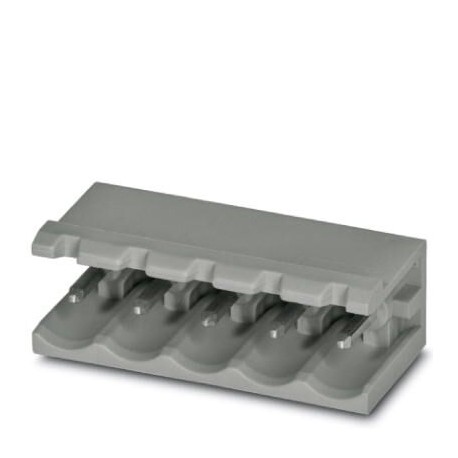

BCH-508H- 7 GN 4PA 5453486 PHOENIX CONTACT Printed-circuit board connector
BCH-508H- 7 GN 4PA
5453486
PHOENIX_CONTACT
100
Printed-circuit board connector
Connectors > Printed circuit board connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | Five million four hundred fifty three thousand four hundred eighty six |
|---|---|
| Packing unit | 100 pcs |
| Key selling | AAYBFA - |
| Minimum order quantity | 100 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million nine hundred two thousand two hundred thirty six |
| Unit weight (excluding packaging) | 2,300 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | CN (China) |
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Width | 35,56 mm |
| Step | 5,08 mm |
| Average | 30,48 mm |
| Width [ w ] | 35,56 mm |
| Height [ h ] | 11.8 mm |
| Height of construction | 8.6 mm |
| Length of the pin welding | 3.2 mm |
| Dimensions of pin | 1 x 1 mm |
| Length | 12 mm |
Overview
| Family of articles | BCH-H |
|---|---|
| Group insulating material | I |
| Transient voltage design (III/3) | 4 kV |
| Transient voltage design (III/2) | 4 kV |
| Transient voltage design (II/2) | 4 kV |
| Tension and sizing (III/3) | 250 V |
| Tension and sizing (III/2) | 320 V |
| Tension and sizing (II/2) | 400 V |
| Connection according to standard | EN-VDE |
| Nominal current IN | 12 To |
| Isolation | PA |
| Class of flammability according to UL 94 | V0 |
| Color | whitish green |
| Number of poles | Seven |
Standards and specifications
| Connection according to standard | EN-VDE |
|---|---|
| CUL | |
| Class of flammability according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Space of time for the intended use: unlimited = FEUP-e |
|---|---|
| No dangerous substances above the thresholds |
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million two hundred sixty thousand seven hundred |
|---|---|
| eCl@ss 4.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand four hundred two |
UNSPSC
| UNSPSC 13.2 | Thirty nine million one hundred twenty one thousand four hundred nine |
|---|---|
| UNSPSC 18.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 19.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 20.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 21.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
