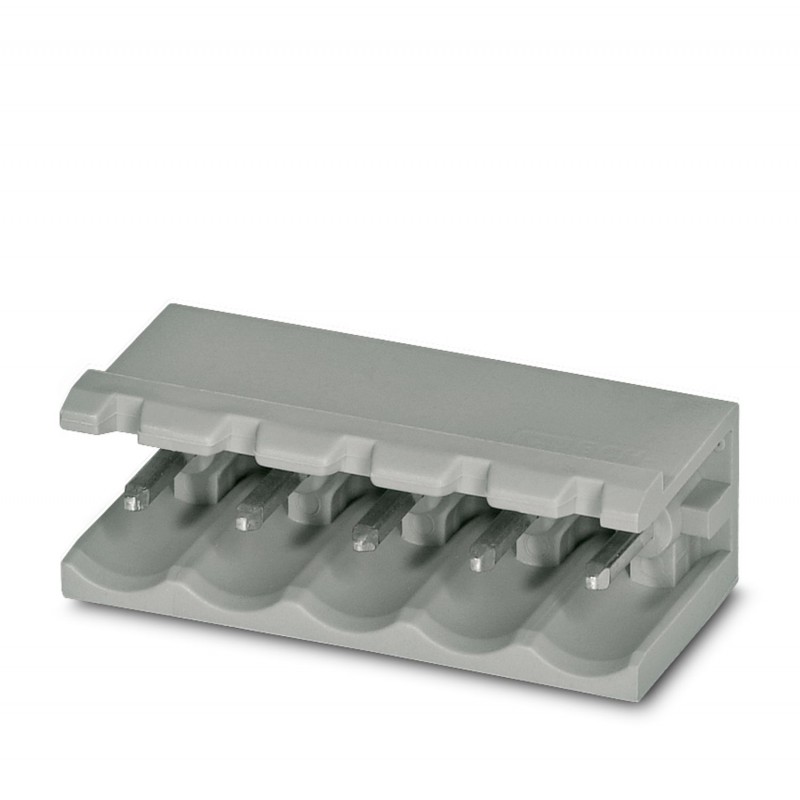

BCH-508H-23 GN 5446529 PHOENIX CONTACT Printed-circuit board connector
BCH-508H-23 GN
5446529
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Printed-circuit board connector
Printed circuit board base housing, nominal section: 2.5 mm², color: whitish green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact connection type: Male, number of potentials: 23, number of rows: 1, number of poles: 23, number of connections: 23, article family: BCH-H, pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: BASICLINE 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 1.5 mm², number of positions: 23, pitch: 5.08 mm, color: pastel green, contact surface: Tin, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Data commercial
| Key order | Five million four hundred forty six thousand five hundred twenty nine |
|---|---|
| Packing unit | 100 pcs |
| Key selling | AAYBFA - |
| Minimum order quantity | 100 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million eight hundred thirty three thousand one hundred forty one |
| Unit weight (excluding packaging) | 8,520 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | CN (China) |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Width | 116,84 mm |
| Step | 5,08 mm |
| Average | 111,76 mm |
| Width [ w ] | 116,84 mm |
| Height [ h ] | 12,1 mm |
| Height of construction | 8.6 mm |
| Length of the pin welding | 3.5 mm |
| Dimensions of pin | 1 x 1 mm |
| Length | 12 mm |
Overview
| Family of articles | BCH-H |
|---|---|
| Group insulating material | I |
| Transient voltage design (III/3) | 4 kV |
| Transient voltage design (III/2) | 4 kV |
| Transient voltage design (II/2) | 4 kV |
| Tension and sizing (III/3) | 250 V |
| Tension and sizing (III/2) | 320 V |
| Tension and sizing (II/2) | 400 V |
| Connection according to standard | EN-VDE |
| Nominal current IN | 12 To |
| Maximum load current | 12 To |
| Isolation | PA |
| Class of flammability according to UL 94 | V0 |
| Color | whitish green |
| Number of poles | Twenty three |
Standards and specifications
| Connection according to standard | EN-VDE |
|---|---|
| CUL | |
| Class of flammability according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Space of time for the intended use: unlimited = FEUP-e |
|---|---|
| No dangerous substances above the thresholds |
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million two hundred sixty thousand seven hundred |
|---|---|
| eCl@ss 4.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand four hundred two |
UNSPSC
| UNSPSC 6.01 | Thirty million two hundred eleven thousand eight hundred one |
|---|---|
| UNSPSC 7.0901 | Thirty nine million one hundred twenty one thousand four hundred thirty two |
| UNSPSC 11 | Thirty nine million one hundred twenty one thousand four hundred thirty two |
| UNSPSC 12.01 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 13.2 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 18.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 19.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 20.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 21.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 23 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 3.23 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
