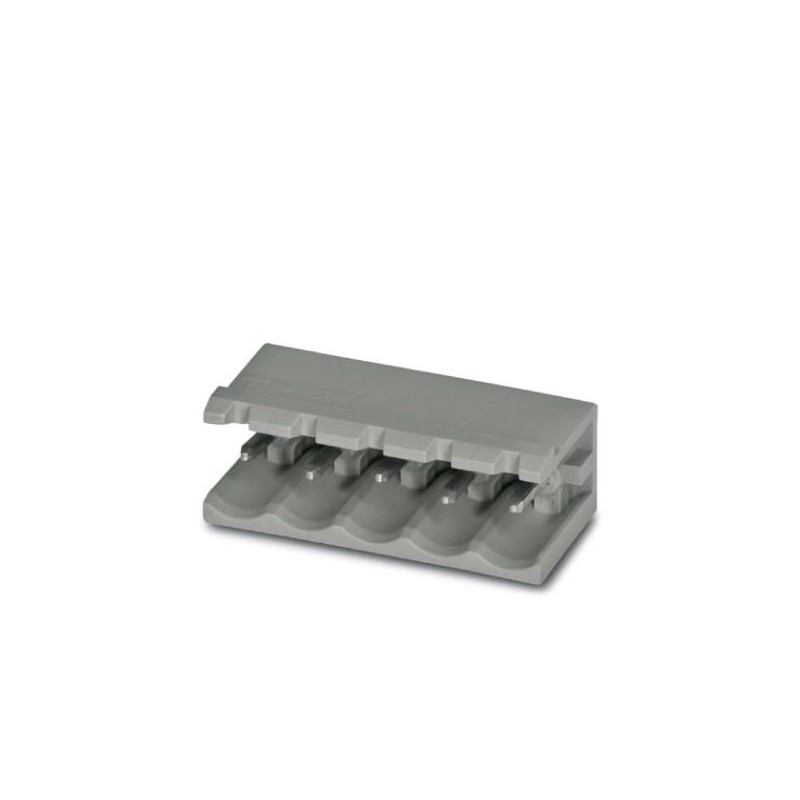

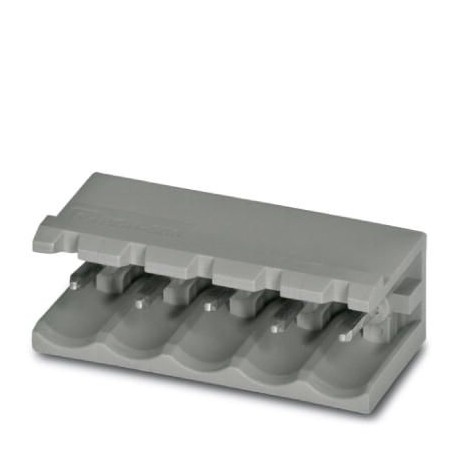

BCH-500H-3 BK 5452268 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º p..
BCH-500H-3 BK
5452268
PHOENIX_CONTACT
100
Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 3,Pitch: 5 mm,Color: black,contact Surface: Tin,Assembly: wave Soldering
Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact connection type: Male, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, family of articles: BCH-H, pitch: 5 mm, mounting: Wave soldering, Pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: BASICLINE 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Trade data
| Order Code | Five million four hundred fifty two thousand two hundred sixty eight |
|---|---|
| Packaging unit | 100 pcs |
| Minimum order quantity | 100 pcs |
| Note | Manufacturing to the order (no recovery) |
| GTIN | Four trillion forty six billion three hundred fifty six million eight hundred fifty three thousand one hundred thirty two |
| Weight per piece (excluding packing) | Of 0.001 KGM |
| Number of the customs tariff | Eighty five million three hundred sixty six thousand nine hundred thirty |
| Country of origin | CN (China) |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Width | 15 mm |
| Not | 5 mm |
| Rated | 10 mm |
| Width [ w ] | 15 mm |
| Height [ h ] | 12 mm |
| Mounting height | The 8.6 mm |
| Length of the picot | 3.4 mm |
| Dimensions of spikes | 1 x 1 mm |
| Length | 12 mm |
General
| Family articles | BCH-H |
|---|---|
| Group of insulation | I |
| Impulse voltage assigned (III/3) | 4 kV |
| Impulse voltage assigned (III/2) | 4 kV |
| Impulse voltage assigned to (II/2) | 4 kV |
| Reference voltage (III/3) | 250 V |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 400 V |
| Connection according to standard | EN-VDE |
| Rated current IN | Twelve |
| Maximum charge current | Twelve |
| Insulating material | PA |
| Flammability class according to UL 94 | V0 |
| Colours | black |
| Number of poles | Three |
Standards and specifications
| Connection according to standard | EN-VDE |
|---|---|
| ASS | |
| Flammability class according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Period of intended use : unlimited = EFUP-e |
|---|---|
| No hazardous substances exceeding the threshold values ; |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.0Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundredeCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundredeCl@ss 7.0Twenty seven million four hundred forty thousand four hundred twoeCl@ss 8.0Twenty seven million four hundred forty thousand four hundred twoeCl@ss 9.0Twenty seven million four hundred forty thousand four hundred two
UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred oneUNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 11Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred nineUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred nine
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 3 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5 mm |
| Modular spacing connections (EF006827) | 5 mm |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 3.23 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
