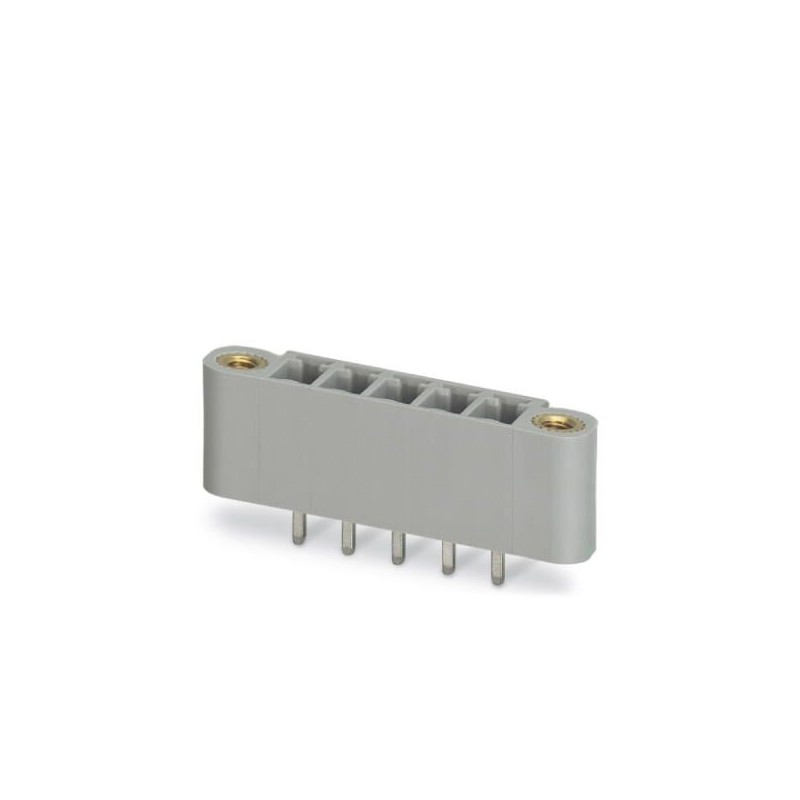

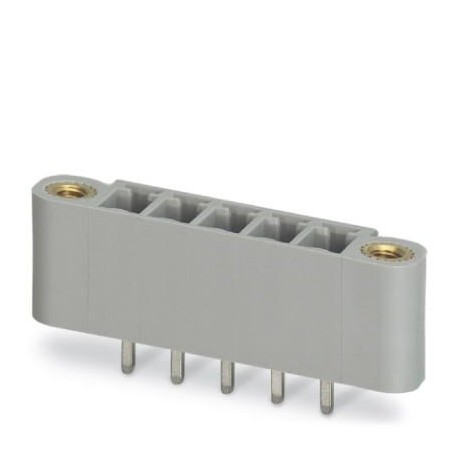

BCH-381VF- 9 BK 5452461 PHOENIX CONTACT Housing base,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º ..
BCH-381VF-9 BK
5452461
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Housing base,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º poles: 9,Pitch: 3,81 mm,Color: black,contact Surface: Tin,Assembly: wave Soldering
Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 9, number of rows: 1, number of poles: 9, number of connections: 9, family of articles: BCH-VF, pitch: 3.81 mm, mounting: Wave soldering, Pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of welding pins per potential: 1, plug-in system: BASICLINE 1.5, Plug-in face orientation: Standard, lock: Screw lock, fixing type: Air clamping (thread), packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Commercial data
| Order code | Five million four hundred fifty two thousand four hundred sixty one |
|---|---|
| Packaging unit | 100 stk |
| Minimum order quantity | 100 stk |
| Note | Order-related production (return impossible) |
| GTIN | Four trillion forty six billion three hundred fifty six million eight hundred fifty one thousand two hundred six |
| Weight/PCs (without packing) | 3,240 GRM |
Dimensions
| Length [ l ] | 7.4 mm |
|---|---|
| Width | 44,68 mm |
| The step size | 3.81 mm |
| Size a | 30.48 mm |
| Width [ w ] | 44,68 mm |
| Height [ h ] | 12.7 mm |
| Height | 9.2 mm |
| Pin length solder | 3.5 mm |
| The dimensions of the pin | 0.8 x 0.8 mm |
| Length | 7.4 mm |
General information
| Series products | BCH-VF |
|---|---|
| Insulating material group | I |
| Rated impulse withstand voltage (III/3) | 2.5 kV |
| Rated impulse withstand voltage (III/2) | 2.5 kV |
| Rated impulse withstand voltage (II/2) | 2.5 kV |
| Rated voltage (III/3) | One hundred sixty |
| Rated voltage (III/2) | One hundred sixty |
| Rated voltage (II/2) | Three hundred twenty |
| Connection according to standard | EN-VDE |
| Nominal current IN | 8 A |
| Maximum load current | 8 A |
| The insulating material | PA |
| Class of Flammability according to UL 94 | V0 |
| Color | black |
| Poles | Nine |
Standards and regulations
| Connection according to standard | EN-VDE |
|---|---|
| CUL | |
| Class of Flammability according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | The time period for use (EFUP) of 50 years |
| Information on hazardous substances is given in the manufacturer's Declaration in tab "Download" |
Classification
eCl@ss 4.0272607xxeCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.0Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundredeCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundredeCl@ss 7.0Twenty seven million four hundred forty thousand four hundred twoeCl@ss 8.0Twenty seven million four hundred forty thousand four hundred twoeCl@ss 9.0Twenty seven million four hundred forty thousand four hundred two
UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred oneUNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 11Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred nineUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred nine
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 9 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 3.81 mm |
| Modular spacing connections (EF006827) | 3.81 mm |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.2 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
