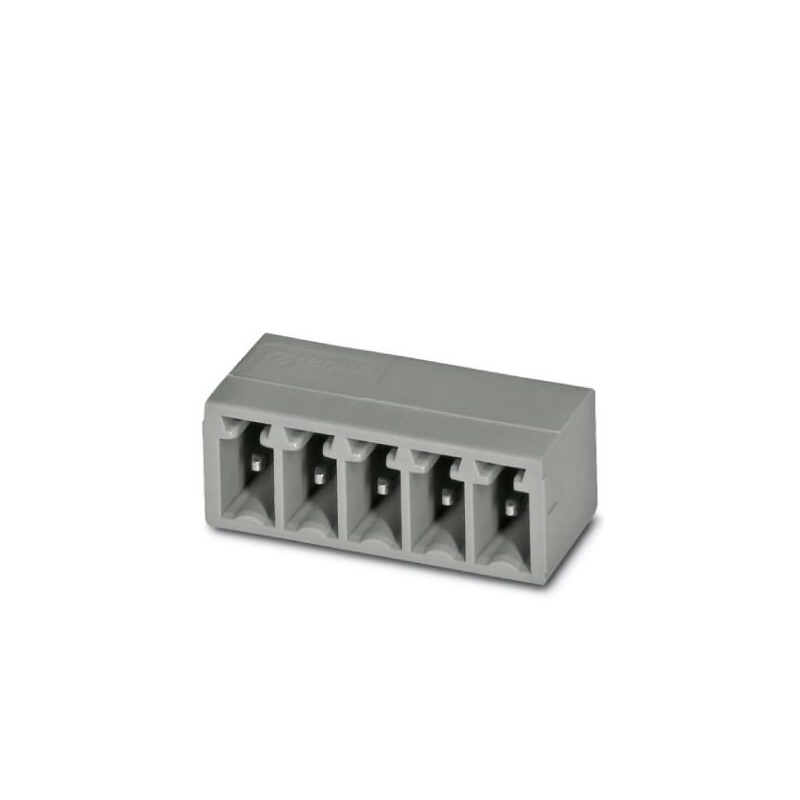

BCH-381H-15 BK 5452040 PHOENIX CONTACT Housing base,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º p..
BCH-381H-15 BK
5452040
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Housing base,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º poles: 15,Pitch: 3,81 mm,Color: black,contact Surface: Tin,Assembly: wave Soldering
Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 15, number of rows: 1, number of poles: 15, number of connections: 15, article family: BCH-H, pitch: 3.81 mm, mounting: Wave soldering, Pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: BASICLINE 1.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Commercial data
| Order key | 5452040 |
|---|---|
| Packaging unit | 100 pcs |
| Sell key | AAYBFA - |
| Minimum Order Quantity | 100 pcs |
| Ean | 4046356855419 |
| Weight per unit (excluding packaging) | 3,500 g |
| Tariff rate number | 85366990 |
| Country of origin | CN (China) |
Dimensions
| Length [ l ] | 9.2 mm |
|---|---|
| Width | 58.54 mm |
| Step | 3.81 mm |
| Medium to | 53.34 mm |
| Width [ w ] | 58.54 mm |
| Height [ h ] | 10.8 mm |
| Construction height | 7.4 mm |
| Weld pin length | 3.4 mm |
| Temple Dimensions | 0.8 x 0.8 mm |
| Longitude | 9.2 mm |
General
| Article Family | BCH-H |
|---|---|
| Insulating material group | I |
| Dimensioning transient voltage (III/3) | 2.5 kV |
| Dimensioning Transient Voltage (III/2) | 2.5 kV |
| Dimensioning transient voltage (II/2) | 2.5 kV |
| Sizing voltage (III/3) | 160 V |
| Dimensioning voltage (III/2) | 160 V |
| Sizing voltage (II/2) | 320 V |
| Standard-compliant connection | EN-VDE |
| Nominal Current IN | 8 A |
| Isolation | PA |
| Combustibility class according to UL 94 | V0 |
| Colour | black |
| Number of poles | 15 |
Standards & Specifications
| Standard-compliant connection | EN-VDE |
|---|---|
| CUL | |
| Combustibility class according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Time slot for intended use: unlimited = EFUP-e |
|---|---|
| No hazardous substances above thresholds |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440402eCl@ss 8.027440402eCl@ss 9.027440402
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
