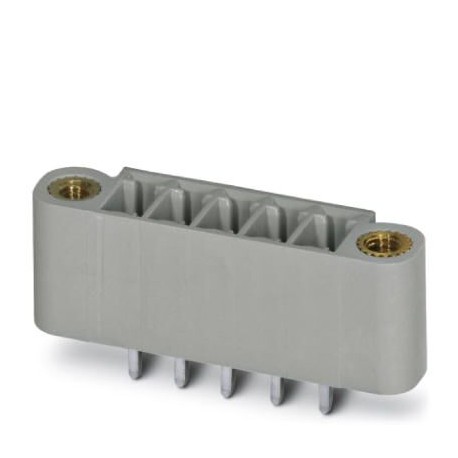

BCH-350VF- 3 BK 5452436 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

BCH-350VF- 3 BK 5452436 PHOENIX CONTACT Printed-circuit board connector

BCH-350VF- 3 BK

5452436

PHOENIX_CONTACT

100

Available Ship on today

New orders for this item will be processed from April 13

Printed-circuit board connector

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Quantity Price
100+$1.70
200+$1.54
400+$1.44
500+$1.42
700+$1.39
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey 5452436
Packing unit 100 pc
Minimum order quantity100 pc
NoteMade to Order (non-returnable)
GTIN4046356851459
Weight per Piece (excluding packing)1.010 g
Custom tariff number85366930
Country of originCN (China)

Dimensions

Length [ l ]7.4 mm
Width20.8 mm
Pitch3.5 mm
Dimension a7 mm
Width [ w ]20.8 mm
Height [ h ]12.6 mm
Height9.2 mm
Length of the solder pin3.4 mm
Pin dimensions0.8 x 0.8 mm
Length7.4 mm

General

Range of articlesBCH-VF
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Maximum load current8 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorblack
Number of positions3

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications
