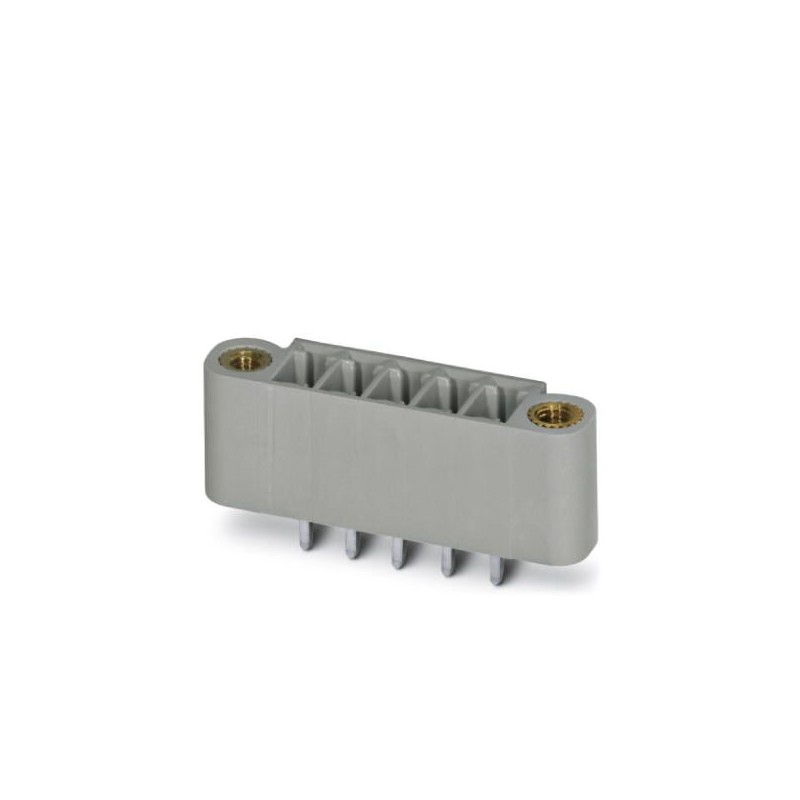

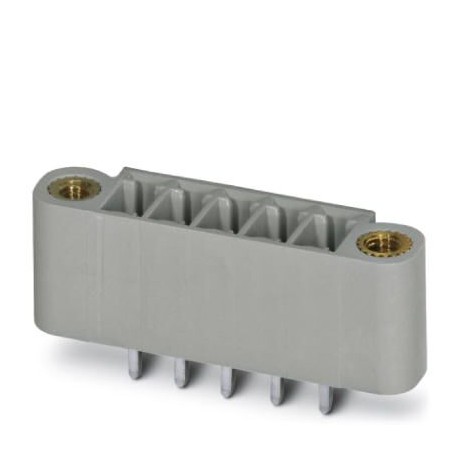

BCH-350VF- 2 BK 5452435 PHOENIX CONTACT Housing base,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

BCH-350VF- 2 BK 5452435 PHOENIX CONTACT Housing base,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º ..

BCH-350VF- 2 BK

5452435

PHOENIX_CONTACT

100

Available Ship on today

New orders for this item will be processed from April 13

Housing base,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º poles: 2,Pitch: 3.5 mm,Color: black,contact Surface: Tin,Assembly: wave Soldering

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Quantity Price
100+$1.52
200+$1.37
400+$1.27
600+$1.23
800+$1.21
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Data commercial

Key orderFive million four hundred fifty two thousand four hundred thirty five
Packing unit100 pcs
Key sellingAAYBHA -
Minimum order quantity100 pcs
EANFour trillion forty six billion three hundred fifty six million eight hundred fifty one thousand four hundred sixty six
Unit weight (excluding packaging)1,459 g
Tariff number tariffEighty five million three hundred sixty six thousand nine hundred ninety
Country of originCN (China)

Dimensions

Length [ l ]7.4 mm
Width17,3 mm
Step3.5 mm
Average3.5 mm
Width [ w ]17,3 mm
Height [ h ]12,6 mm
Height of construction9,2 mm
Length of the pin welding3.4 mm
Dimensions of pin0.8 x 0.8 mm
Length7.4 mm

Overview

Family of articlesBCH-VF
Group insulating materialI
Transient voltage design (III/3)2.5 kV
Transient voltage design (III/2)2.5 kV
Transient voltage design (II/2)2.5 kV
Tension and sizing (III/3)160 V
Tension and sizing (III/2)160 V
Tension and sizing (II/2)320 V
Connection according to standardEN-VDE
Nominal current IN8 To
Maximum load current8 To
IsolationPA
Class of flammability according to UL 94V0
Colorblack
Number of polesTwo

Standards and specifications

Connection according to standardEN-VDE
CUL
Class of flammability according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSSpace of time for the intended use (FEUP): 50 years
You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab
