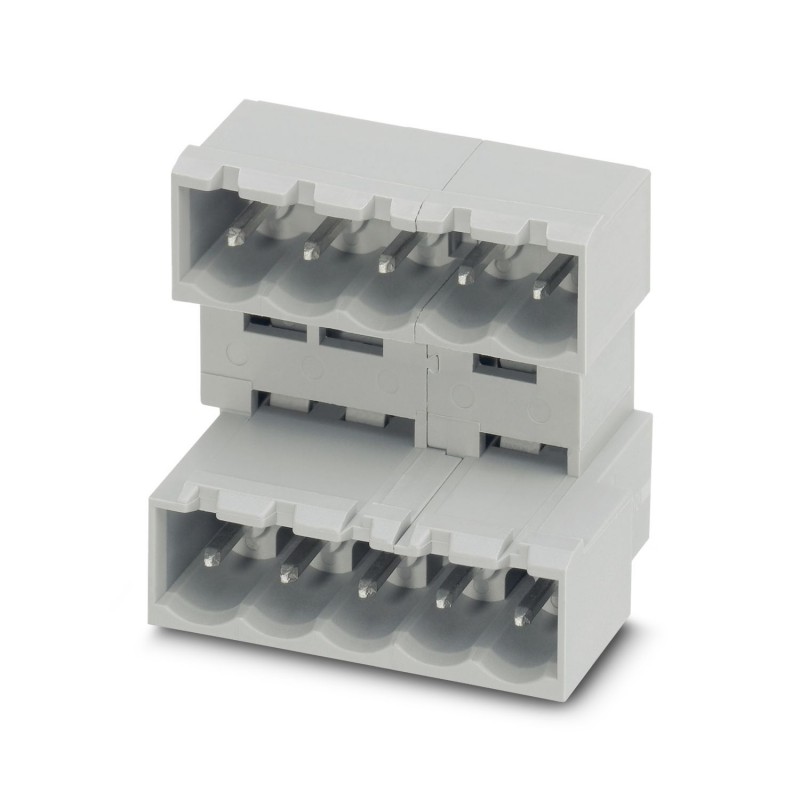

BCDH-508HS- 5 GN 5443564 PHOENIX CONTACT Printed-circuit board connector
BCDH-508HS- 5 GN
5443564
PHOENIX_CONTACT
100
Printed-circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Type | Standard |
| Number of positions | 5 |
| Pitch | 5.08 mm |
| Mounting flange | without |
| Pin layout | Linear pinning |
| Data management status | |
| Article revision | 00 |
| Maximum load current | 10 A |
| Rated voltage (II/2) | 400 V |
| Rated voltage (III/2) | 320 V |
| Rated surge voltage (II/2) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (III/3) | 4 kV |
| Maximum load current | 10 A |
| Dimensional drawing |  |
| Length of the solder pin | 3.2 mm |
| Length | 22.1 mm |
| Length of the solder pin | 3.2 mm |
| Hole diameter | 1.4 mm |
| Pitch | 5.08 mm |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Contact surface | Tin Sn |
| Mechanical data | |
| Open side panel | No |
| Connection in acc. with standard | EN-VDE |
| Mounting type | Wave soldering |
| Pin layout | Linear pinning |
| Type of packaging | packed in cardboard |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
