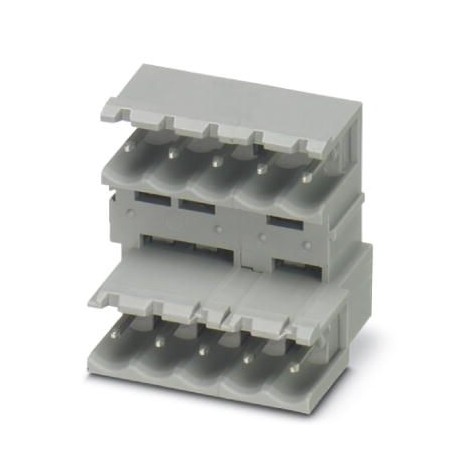

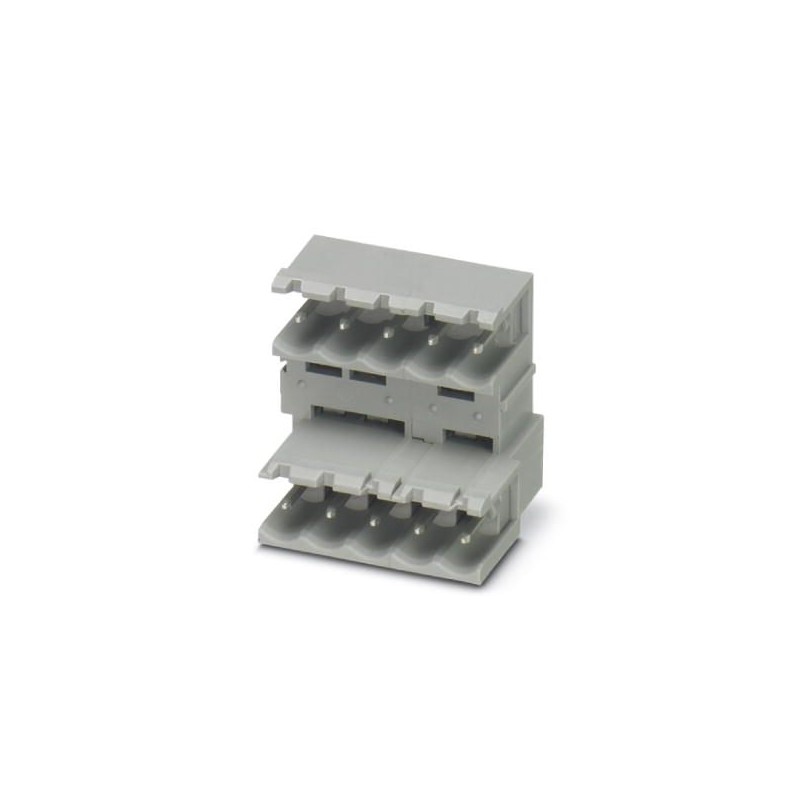

BCDH-508H- 5 GN 5443344 PHOENIX CONTACT Housing base,nominal Current: 10 A,rated Voltage (III/2): 320 V,N. º..
BCDH-508H- 5 GN
5443344
PHOENIX_CONTACT
100
Housing base,nominal Current: 10 A,rated Voltage (III/2): 320 V,N. º poles: 5,Pitch: 5,08 mm,Color: whitish green,contact Surface: Tin,Assembly: wave Soldering
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 5443344 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| GTIN | 4046356839167 |
| Weight per Piece (excluding packing) | 6.600 g |
| Custom tariff number | 85366930 |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 22.1 mm |
|---|---|
| Pitch | 5.08 mm |
| Dimension a | 20.32 mm |
| Length of the solder pin | 3.2 mm |
| Length | 22.1 mm |
General
| Range of articles | BCDH-H |
|---|---|
| Insulating material group | I |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 250 V |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 400 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 10 A |
| Maximum load current | 10 A |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Color | pastel green |
| Number of positions | 5 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| CUL | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440402eCl@ss 8.027440402eCl@ss 9.027440402
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
