BCA-508X15- 3 GY
5440923
PHOENIX_CONTACT
100

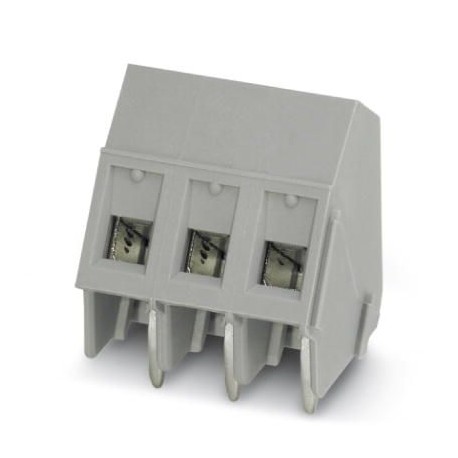

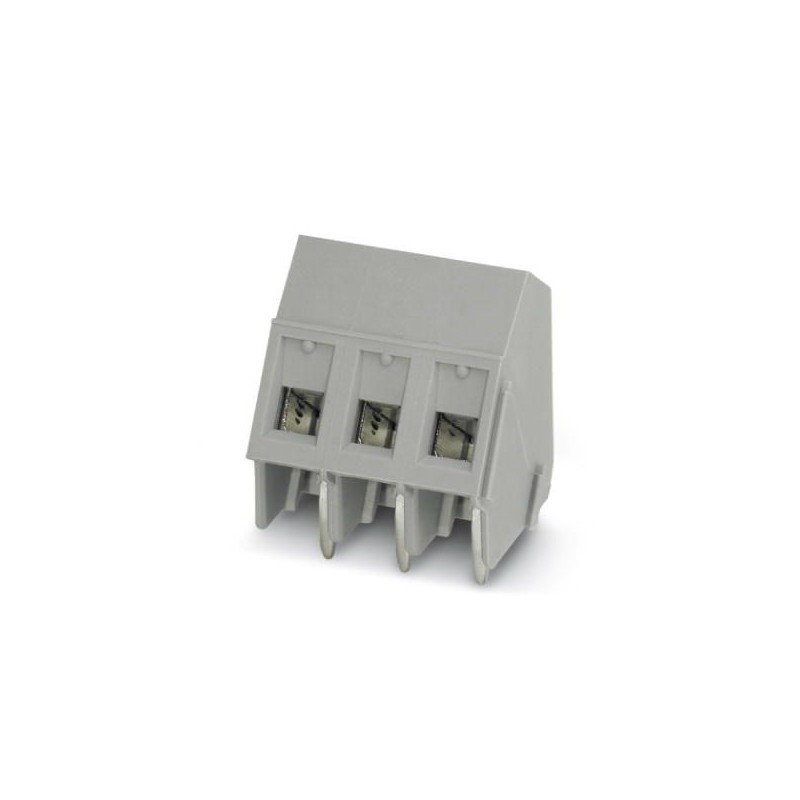

Terminal p. printed circuit board, nominal Current: 24 A, nominal Voltage: 320 V, Pitch: 5,08 mm, Number of poles: 3, Type of connection: Connection by screw with capsule-traction, Assembly: Soldering by wave Direction for connection Conductor/pcb: 55 °, Color: gray signals
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Order Code | Five million four hundred forty thousand nine hundred twenty three |
---|---|
Packaging unit | 100 pcs |
Minimum order quantity | 100 pcs |
GTIN | Four trillion forty six billion three hundred fifty six million four hundred seventy three thousand two |
Weight per piece (excluding packing) | Is 0.004 KGM |
Number of the customs tariff | Eighty five million three hundred sixty nine thousand ten |
Country of origin | (Germany) |
Length [ l ] | The 13.4 mm |
---|---|
Not | 5.08 mm |
Rated | 10.16 mm |
Width [ w ] | 15.19 mm |
Mounting height | 15,3 mm |
Height [ h ] | 18.8 mm |
Length of pin [P] | 3.5 mm |
Drilling diameter | 1.3 mm |
Family articles | BCA-X15 |
---|---|
Impulse voltage assigned (III/3) | 4 kV |
Impulse voltage assigned (III/2) | 4 kV |
Impulse voltage assigned to (II/2) | 4 kV |
Reference voltage (III/3) | 250 V |
Rated voltage (III/2) | 320 V |
Rated voltage (II/2) | 630 V |
Connection according to standard | EN-VDE |
Rated current IN | Twenty four |
Nominal Section | 2.5 mm2 |
Insulating material | PA |
Pin soldering surface | |
Flammability class according to UL 94 | V0 |
Length stripping tool | 7 mm |
Number of poles | Three |
Thread screws | M3 |
Tightening torque min. | 0.5 Nm |
Tightening torque max. | 0.6 Nm |
Wire cross-Section, rigid min. | 0.14 mm2 |
---|---|
Wire cross-Section rigid max. | 2.5 mm2 |
Wire cross-Section flexible min. | 0.14 mm2 |
Wire cross-Section flexible max. | 1.5 mm2 |
Wire cross-Section flexible with wire-end sleeve without inlet cone insulation max. | 0.25 mm2 |
1.5 mm2 | |
Wire cross-Section flexible with ferrule and inlet cone insulation min. | 0.25 mm2 |
Wire cross-Section flexible with ferrule and inlet cone insulation max. | 1.5 mm2 |
Cross Section of the conductor AWG min. | Twenty six |
Cross Section of wire AWG max. | Fourteen |
2 solid conductors of the same cross-section min. | 0.14 mm2 |
2 solid conductors of the same cross-section max. | 1 mm2 |
2 conductors flexible same cross-section min. | 0.14 mm2 |
2 conductors flexible same cross-section max. | 0.75 mm2 |
2-conductor, flexible, in the same section with AEH without inlet cone insulation min. | 0.25 mm2 |
2-conductor, flexible, in the same section with AEH without inlet cone insulation max. | 0.5 mm2 |
2-conductor, flexible, in the same section with TWIN-AEH and inlet cone insulation min. | 0.5 mm2 |
2-conductor, flexible, in the same section with TWIN-AEH and inlet cone insulation max. | 1 mm2 |
Connection according to standard | EN-VDE |
---|---|
ASS | |
Flammability class according to UL 94 | V0 |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Period of intended use (EFUP) : 50 years |
The manufacturer's declaration in the tab "Downloads" contains detailed information on hazardous substances. |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
![]() |
