BC-508X14- 2 BK 5452261 PHOENIX CONTACT Terminal p. printed circuit board, rated Current: 17,5 A, rated Volt..
BC-508X14-2 BK
5452261
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.

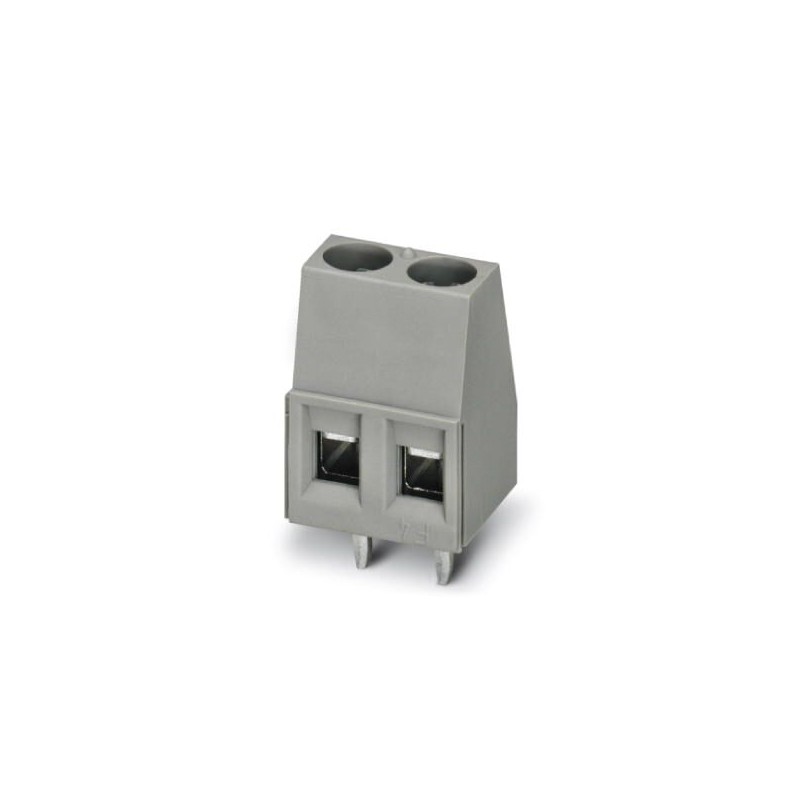

Terminal p. printed circuit board, rated Current: 17,5 A, rated Voltage: 400 V, Pitch: 5,08 mm, Number of poles: 2, Type of connection: Connection by screw with capsule-traction, Assembly: Soldering by wave Direction for connection Conductor/pcb: 0 °, Color: black, The article can be aligned with different numbers of poles!
Terminal block for printed circuit board, rated current: 17.5 A, rated voltage (III/2): 400 V, rated cross-section: 1.5 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2, article family: BC-X14, pitch: 5.08 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, conductor connection direction/printed circuit board: 0 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, packaging type: boxed packaging. The item can be aligned with different numbers of poles!
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Trade data
| Order Code | Five million four hundred fifty two thousand two hundred sixty one |
|---|---|
| Packaging unit | 100 pcs |
| Minimum order quantity | 100 pcs |
| Note | Manufacturing to the order (no recovery) |
| GTIN | Four trillion forty six billion three hundred fifty six million eight hundred fifty three thousand two hundred |
| Weight per piece (excluding packing) | Of 0.003 KGM |
| Number of the customs tariff | Eighty five million three hundred sixty nine thousand ten |
| Country of origin | CN (China) |
General
| Family articles | BC-X14 |
|---|---|
| Group of insulation | I |
| Impulse voltage assigned (III/3) | 4 kV |
| Impulse voltage assigned (III/2) | 4 kV |
| Impulse voltage assigned to (II/2) | 4 kV |
| Reference voltage (III/3) | 250 V |
| Rated voltage (III/2) | 400 V |
| Rated voltage (II/2) | 630 V |
| Connection according to standard | EN-VDE |
| Rated current IN | 17,5 A |
| Nominal Section | 1.5 mm2 |
| Insulating material | PA |
| Pin soldering surface | |
| Flammability class according to UL 94 | V0 |
| Template | A1 |
| Length stripping tool | 7 mm |
| Number of poles | Two |
| Thread screws | M3 |
| Tightening torque min. | 0.5 Nm |
| Tightening torque max. | 0.6 Nm |
Characteristics of connection
| Wire cross-Section, rigid min. | 0.14 mm2 |
|---|---|
| Wire cross-Section rigid max. | 2.5 mm2 |
| Wire cross-Section flexible min. | 0.14 mm2 |
| Wire cross-Section flexible max. | 1.5 mm2 |
| Wire cross-Section flexible with wire-end sleeve without inlet cone insulation max. | 0.25 mm2 |
| 1.5 mm2 | |
| Wire cross-Section flexible with ferrule and inlet cone insulation min. | 0.25 mm2 |
| Wire cross-Section flexible with ferrule and inlet cone insulation max. | 1.5 mm2 |
| Cross Section of the conductor AWG min. | Twenty six |
| Cross Section of wire AWG max. | Fourteen |
| 2 solid conductors of the same cross-section min. | 0.14 mm2 |
| 2 solid conductors of the same cross-section max. | 1 mm2 |
| 2 conductors flexible same cross-section min. | 0.14 mm2 |
| 2 conductors flexible same cross-section max. | 0.75 mm2 |
| 2-conductor, flexible, in the same section with AEH without inlet cone insulation min. | 0.25 mm2 |
| 2-conductor, flexible, in the same section with AEH without inlet cone insulation max. | 0.5 mm2 |
| 2-conductor, flexible, in the same section with TWIN-AEH and inlet cone insulation min. | 0.5 mm2 |
| 2-conductor, flexible, in the same section with TWIN-AEH and inlet cone insulation max. | 1 mm2 |
Standards and specifications
| Connection according to standard | EN-VDE |
|---|---|
| ASS | |
| Flammability class according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Period of intended use (EFUP) : 50 years |
| The manufacturer's declaration in the tab "Downloads" contains detailed information on hazardous substances. |
Classifications
eCl@ss 4.0Twenty seven million one hundred forty one thousand one hundred nineeCl@ss 4.1Twenty seven million one hundred forty one thousand one hundred nineeCl@ss 5.0Twenty seven million one hundred forty one thousand one hundred ninetyeCl@ss 5.1Twenty seven million two hundred sixty one thousand one hundredeCl@ss 6.0Twenty seven million two hundred sixty one thousand one hundredeCl@ss 7.0Twenty seven million four hundred forty thousand four hundred oneeCl@ss 8.0Twenty seven million four hundred forty thousand four hundred oneeCl@ss 9.0Twenty seven million four hundred forty thousand four hundred one
UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred oneUNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 11Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred thirty two
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 21.5 mm |
| Number of electrical connections (EF008252) | 2 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 5.08 mm |
| Rated current In (EF008250) | 17.5 A |
| Rated voltage (EF000228) | 400 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Screw connection |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.14 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.3 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
