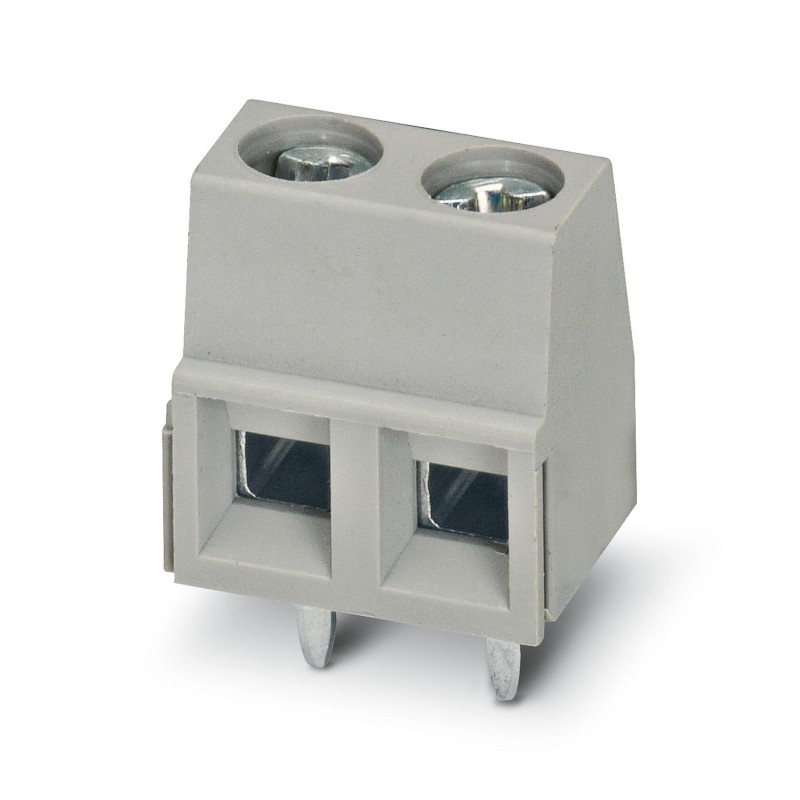

BC-508X10- 8 GN 5430073 PHOENIX CONTACT PCB terminal block
BC-508X10-8 GN
5430073
PHOENIX_CONTACT
100
PCB terminal block
Terminal block for printed circuit board, nominal current: 13.5 A, nominal voltage (III/2): 400 V, nominal cross-section: 1.5 mm², number of potentials: 8, number of rows: 1, number of poles per row: 8, article family: BC-X10, pitch: 5.08 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, conductor connection direction/printed circuit board: 0°, color: off-white green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, packaging type: boxed
PCB terminal, Rated current: 13.5 A, Rated voltage (III/2): 400 V, Nominal cross-section: 1.5 mm2, Number of potentials: 8, Number of rows: 1, Number of poles per row: 8, Article family: BC-X10, Pitch: 5.08 mm, Connection type: Screw connection with pull sleeve, Screw attack shape: H1L Philipps-Recess with longitudinal slot, Mounting: wave soldering, Conductor/PCB connection direction: 0 °, Color: white-green, Pin layout: Linear pinning, Pin length [P]: 3.5 mm, Number of solder pins per potential: 1, Packing type: packed in carton
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 5430073 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| GTIN | 4055626027630 |
| Weight per Piece (excluding packing) | 7.570 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
