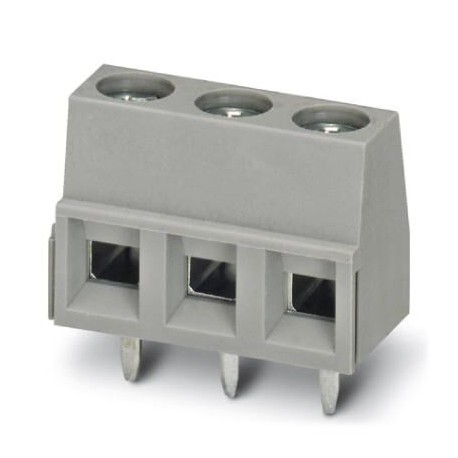

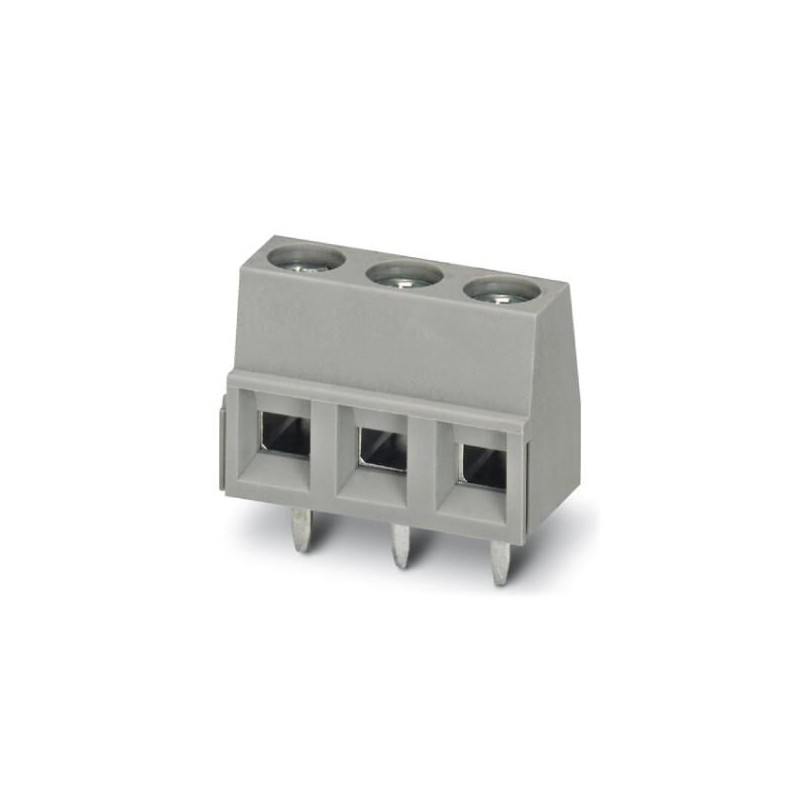

BC-500X10- 6 BK 5452256 PHOENIX CONTACT Terminal p. printed circuit board,nominal Current: 14 A,rated Voltag..
BC-500X10-6 BK
5452256
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Terminal p. printed circuit board,nominal Current: 14 A,rated Voltage (III/2): 400 V,N. º poles: 6,Pitch: 5,08 mm,the Technique of connection: Connection by screw with capsule-traction,Color: black,contact Surface: Tin,Assembly: wave Soldering
Printed circuit board terminal, nominal section: 1.5 mm², colour: black, rated current: 14 A, sizing voltage (III/2): 400 V, surface contacts: Tin, Number of potentials: 6, Number of rows: 1, Number of poles per row: 6, number of connections: 6, article family: BC-X10, pitch: 5 mm, connection type: Screw connection with traction capsule, Mounting: Wave welding, connection direction conductor/printed circuit board: 0°, pin length [P]: 3.5mm, packaging type: boxed packaging
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Data commercial
| Key order | Five million four hundred fifty two thousand two hundred fifty six |
|---|---|
| Packing unit | 100 pcs |
| Key selling | AAYAAA - |
| Minimum order quantity | 100 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million eight hundred fifty three thousand two hundred fifty five |
| Unit weight (excluding packaging) | 5,260 g |
| Tariff number tariff | Eighty five million three hundred sixty nine thousand ten |
| Country of origin | CN (China) |
Overview
| Family of articles | BC-X10 |
|---|---|
| Number of poles | Six |
| Type of connection | Connection by screw with capsule-traction |
| Group insulating material | I |
| Transient voltage design (III/3) | 4 kV |
| Transient voltage design (III/2) | 4 kV |
| Transient voltage design (II/2) | 4 kV |
| Tension and sizing (III/2) | 400 V |
| Tension and sizing (II/2) | 630 V |
| Connection according to standard | EN-VDE |
| Nominal current IN | 13.5 To |
| Nominal cross section | 1.5 mm2 |
| Isolation | PA |
| Class of flammability according to UL 94 | V0 |
| Gauge male | A1 |
| Length desaislar | 6 mm |
| Screw thread | M3 |
| Tightening torque min. | 0.5 Nm |
| Tightening torque max. | 0.6 Nm |
Data connection
| Core cross-section rigid min. | 0.14 mm2 |
|---|---|
| Section of conductor rigid max. | 1.5 mm2 |
| Section of flexible conductor, min. | 0.14 mm2 |
| Section of flexible conductor max. | 1.5 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve min. | 0.25 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve max. | 1 mm2 |
| Section of flexible conductor with toe, with plastic sleeve min. | 0.25 mm2 |
| Section of flexible conductor with toe, with plastic sleeve max. | 1.5 mm2 |
| Section of conductor AWG min. | Twenty six |
| Section of conductor AWG max. | Sixteen |
| 2 conductors with same cross section, rigid min. | 0.14 mm2 |
| 2 conductors with same cross section, rigid max. | 0.75 mm2 |
| 2 conductors with same cross section, flexible, min. | 0.14 mm2 |
| 2 conductors with same cross section, flexible max. | 0.75 mm2 |
| 2 conductors with same cross section, flexible with AEH without plastic sleeve min. | 0.25 mm2 |
| 2 conductors with same cross section, flexible with AEH without plastic sleeve max. | 0.5 mm2 |
| 2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve min. | 0.5 mm2 |
| 2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve max. | 0.75 mm2 |
Standards and specifications
| Connection according to standard | EN-VDE |
|---|---|
| CUL | |
| Class of flammability according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss 4.0272607xxeCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.0Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.1Twenty seven million two hundred sixty one thousand one hundredeCl@ss 6.0Twenty seven million two hundred sixty one thousand one hundredeCl@ss 7.0Twenty seven million four hundred forty thousand four hundred oneeCl@ss 8.0Twenty seven million four hundred forty thousand four hundred oneeCl@ss 9.0Twenty seven million four hundred forty thousand four hundred one
UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred oneUNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 11Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred nineUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred thirty two
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 13.47 mm |
| Number of electrical connections (EF008252) | 6 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 5 mm |
| Rated current In (EF008250) | 13.5 A |
| Rated voltage (EF000228) | 400 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Screw connection |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.14 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.3 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
