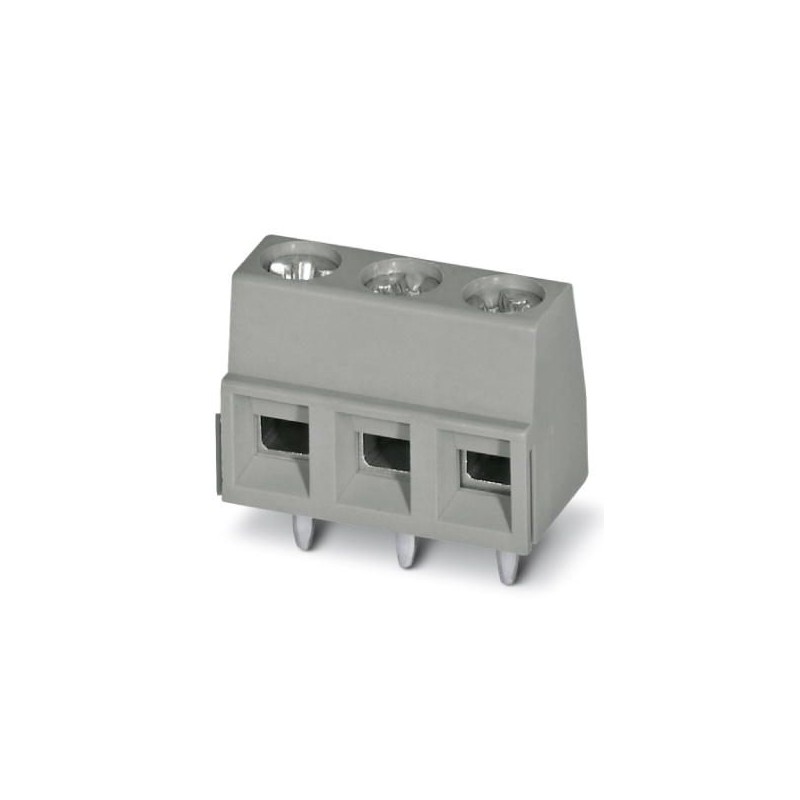

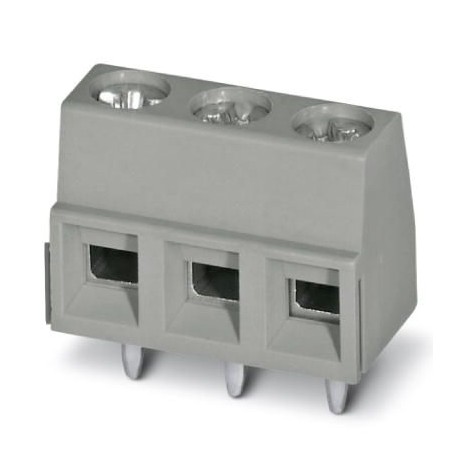

BC-500X10-21 GN 5430164 PHOENIX CONTACT PCB terminal block
BC-500X10-21 GN
5430164
PHOENIX_CONTACT
100
PCB terminal block
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 5430164 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626169613 |
| Weight per Piece (excluding packing) | 2.220 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
Dimensions
| Length [ l ] | 8.15 mm |
|---|---|
| Pitch | 5 mm |
| Dimension a | 95 mm |
| Height | 9.97 mm |
| Height [ h ] | 13.47 mm |
| Solder pin [P] | 3.5 mm |
| Hole diameter | 1.3 mm |
General
| Range of articles | BC-X10 |
|---|---|
| Insulating material group | I |
| Rated voltage (III/2) | 400 V |
| Nominal current IN | 13.5 A |
| Nominal cross section | 1.5 mm² |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 21 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
