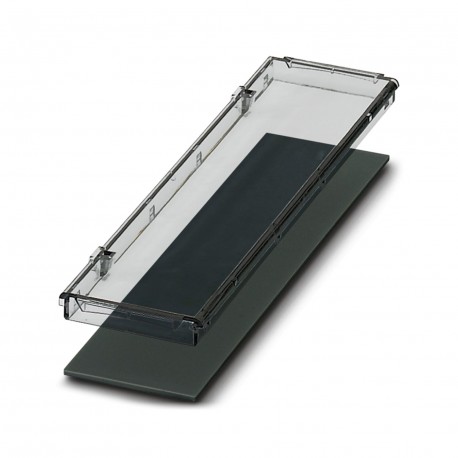

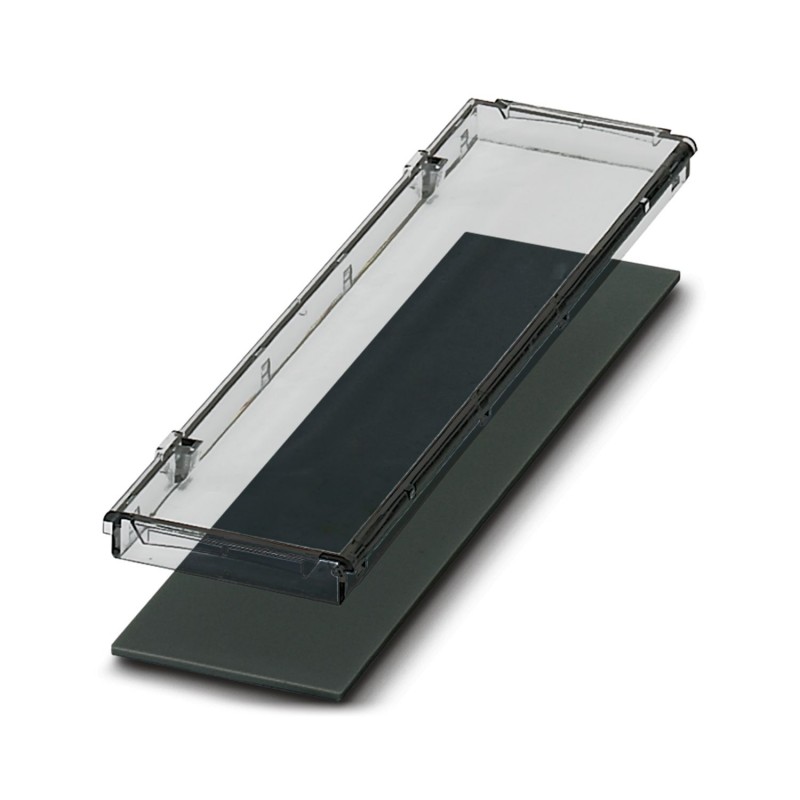

BC 161,6 DKL S TRANS BK S1201 1059059 PHOENIX CONTACT Installation component housing, Transparent hinged cov..
BC 161,6 DKL S TRANS BK S1201
1059059
PHOENIX_CONTACT
10
Installation component housing, Transparent hinged cover, Including insertion plate, width: 161.6 mm, height: 45 mm, color: light gray (9005)
Rail box for use in installation distributors according to DIN 43880, Transparent tilting cover, sealable, insertable blind cover included, width: 161.6 mm, height: 45 mm, depth: 8 mm, colour: light grey (9005)
DIN rail housing for use in distribution boards in accordance with DIN 43880, transparent hinged cover, can be sealed, including insertion plate, width: 161.6 mm, height: 45 mm, depth: 8 mm, color: black (similar RAL 9005)
Cabinet enclosures > Electronic enclosure
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Cover |
| Housing type | DIN rail housing for use in distribution boards in accordance with DIN 43880 |
| Housing series | BC |
| Product family | BC 161,6.. |
| Type | transparent hinged cover, can be sealed |
| Ventilation openings present | no |
| Data management status | |
| Article revision | 00 |
| Width | 161.6 mm |
| Height | 45 mm |
| Depth | 8 mm |
| Color (Insertion plate) | black (RAL 9005) |
| Color (Housing cover) | transparent |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polycarbonate |
| Surface characteristics | untreated |
| Vibration test | |
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
| Glow-wire test | |
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
| Mechanical strength / tumbling barrel | |
| Specification | IEC 60068-2-31:2008-05 |
| Height of fall | 50 cm |
| Frequency | 50 |
| Shocks | |
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Half-sine |
| Acceleration | 15g |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Degree of protection (IP code) | |
| Specification | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 95 % |
| Mounting type | can be swiveled and sealed |
| Type of packaging | Box packaging |
