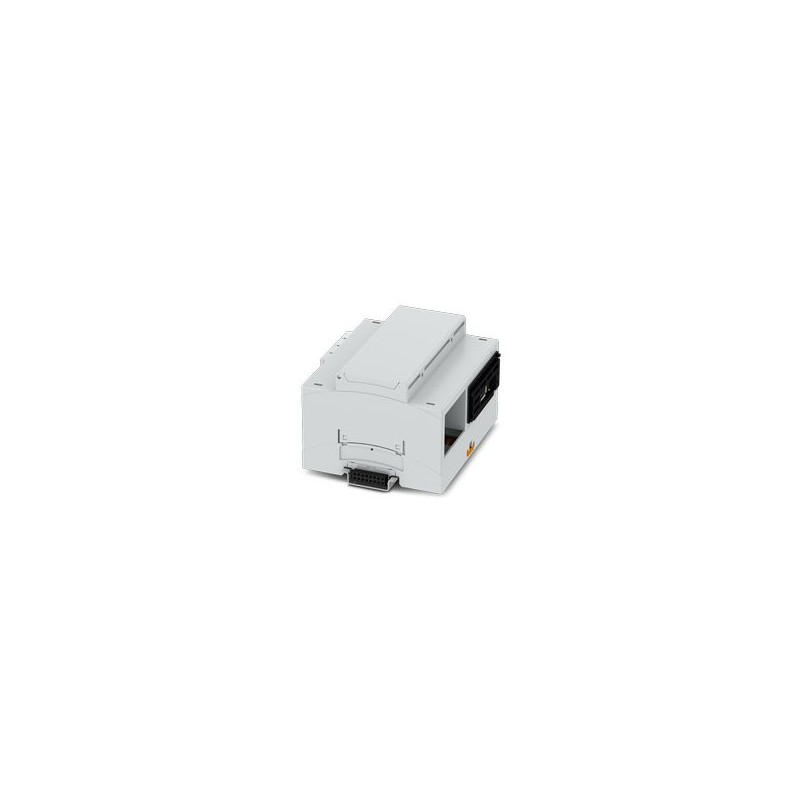

BC 107,6-KIT-RPI-7035+PCB 1311017 PHOENIX CONTACT Empty box, rail mount, light grey 7035, for Raspberry Pi c..
BC 107,6-KIT-RPI-7035+PCB
1311017
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Empty box, rail mount, light grey 7035, for Raspberry Pi computers (suitable for Raspberry Pi A+, B+, B2, B3, B4), incl. perforated weft plate and bracket, for connection to an HBUS strip and GPIO, width: 107.6 mm, height: 89.7 mm, depth: 60.7 mm
Empty enclosure, DIN rail mounting, light gray (7035), for Raspberry Pi computer (suitable for Raspberry Pi A+, B+, B2, B3, B4), incl. perfboard and holder, for connection to HBUS and GPIO strip, width: 107.6 mm, height: 89.7 mm, depth: 60.7 mm
Cabinet enclosures > Electronic enclosure
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Stackable housing set |
| Type | Housing set |
| Housing type | DIN rail housing for use in distribution boards in accordance with DIN 43880 |
| Ventilation openings present | yes |
| Housing series | BC |
| Dimensional drawing |  |
| Width | 107.6 mm |
| Height | 89.7 mm |
| Depth | 60.7 mm |
| Depth from top edge of DIN rail | 54.7 mm |
| Color | light grey (7035) |
| Flammability rating according to UL 94 | V0 |
| Insulating material | Polycarbonat |
| Housing material | Polycarbonate |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 95 % |
| Type of PCB mount | Latching |
| Mounting type | DIN rail mounting/wall mounting |
| Mounting position | parallel to the DIN rail |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Other |
| Colour (EF000007) | Grey |
