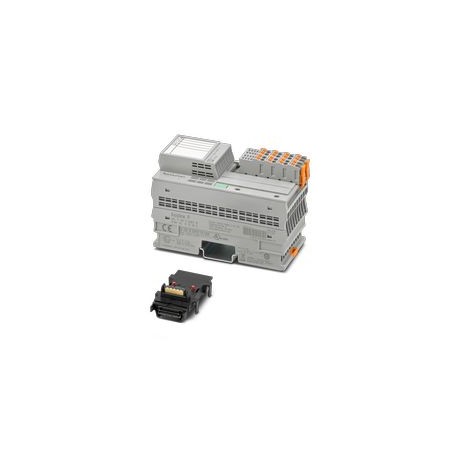

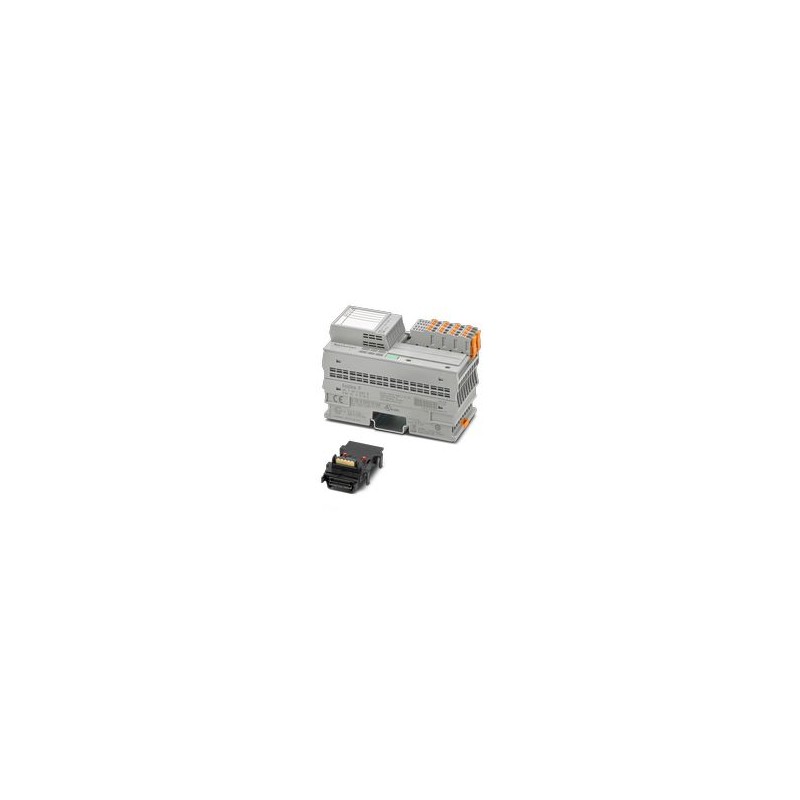

AXL P AI8 P HART 1F 1215392 PHOENIX CONTACT Axioline P, Analog Input Module, Passive Analog Inputs: 8 (HART)..
AXL P AI8 P HART 1F
1215392
PHOENIX_CONTACT
Axioline P, Analog Input Module, Passive Analog Inputs: 8 (HART), 0 mA ... 20 mA, 4 mA... 20 mA, connection technology: 2 conductors, transmission speed on the local bus: 100 MBit/s, HART - Functionality, protection index: IP20, Includes bus socket module and Axioline P male connectors
Axioline P, Analog Input Module, Passive Analog Inputs: 8 (HART), 0 mA ... 20 mA, 4 mA... 20 mA, connection technology: 2 conductors, HART - Functionality, protection rating: IP20
PLC's > Fieldbus, decentr. periphery - analogue I/O module
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Technical data
Dimensions
| Dimension Scheme |  |
| Width | 53.6 mm |
| Height | 126.1 mm |
| Depth | 77.14 mm |
| Note on Measurement Indications | The depth is valid in the use of a symmetrical rail TH 35-7.5 (according to EN 60715). |
Notes
| Restriction of Use | |
| EMC Indication | EMC: Class A product, see manufacturer's statement in the download center |
Material Data
| Colour | traffic grey A RAL 7042 |
Interfaces
| Bus local Axioline P | |
| Connection type | Bus Socket Module |
| Transmission speed | 100 MBit/s |
Input data
| Analog | |
| Denomination Entry | Passive Analog Inputs |
| Ticket Description | Passive analog input signals, HART-ready |
| Number of Entries | 8 (HART) |
| Connection type | Push-in connection |
| Connection technology | 2 conductors |
| A Note on Connection Technology | shielded, braided in pairs |
| Input Signal Current | 0 mA ... 20 mA |
| 4 mA ... 20 mA | |
| Protection Circuit | Prot. Departures against Inv. polarity |
Item Properties
| Construction | blockmodular |
| Product Type | I/O Component |
| Product Family | Axioline P |
| Position for mounting | at discretion (no temperature derating) |
| Insulation Properties | |
| Surge Category | Ii |
| Degree of pollution | 2 |
Electrical Properties
| Potentials: U Logic Voltage PowerL | |
| Supply voltage | 19.2 V DC ... 30 V DC (via bus socket module (UL) to AXL P BK...) |
| Potentials: Axioline P (U local bus power)bus) | |
| Supply voltage | 5 V DC (via bus socket module) |
| Current absorption | max. 135 mA |
| Potentials: Supply voltage for Axioline P expansion module | |
| Supply voltage | UL(via bus socket module) |
| Current absorption | max. 27 mA (via bus socket module) |
| Galvanic Separation/Isolation of Voltage Margins | |
| Test voltage: 5 V power supply from local bus (UBus)/Functional Earth | 500 V AC, 62 Hz, 1 min. |
| Test voltage: 24 V power supply (periphery) / functional ground | 500 V AC, 62 Hz, 1 min. |
| Test Voltage: Field for Functional Ground | 500 V AC, 62 Hz, 1 min. |
| Test voltage: Field for 5 V and 24 V power supplies | 1500 V AC, 62 Hz, 1 min. |
Connection data
| Connection technology | |
| Denomination Connection | Axioline P Connector |
| Note about the connection type | Please note the instructions on cable sections in the user manual "Axioline P: System and Installation". |
| Connecting Conductors | |
| Connection type | Push-in connection |
| Rigid conductor section | 0.2 mm² ... 1.5 mm² |
| Flexible conductor section | 0.2 mm² ... 1.5 mm² |
| AWG Conductor Section | 24 ... 16 |
| Length to be de-insulated | 8 mm |
| Axioline P Connector | |
| Connection type | Push-in connection |
| Note about the connection type | Please note the instructions on cable sections in the user manual "Axioline P: System and Installation". |
| Rigid conductor section | 0.2 mm² ... 1.5 mm² |
| Flexible conductor section | 0.2 mm² ... 1.5 mm² |
| AWG Conductor Section | 24 ... 16 |
| Length to be de-insulated | 8 mm |
Environmental and life-life conditions
| Environmental conditions | |
| Protection Index | IP20 |
| Ambient Temperature (Service) | -40 °C ... 70°C (Standard) |
| Protection Index | IP20 |
| Air Pressure (Service) | 70 kPa ... 106 kPa (up to 2000 m above NN) |
| Air Pressure (Storage/Transport) | 70 kPa ... 106 kPa (up to 2000 m above NN) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 85 °C |
| Permissible air humidity (service) | 5 % ... 95% (non-condensing) |
| Permissible air humidity (storage/transport) | 5 % ... 95% (non-condensing) |
Standards & Specifications
| Kind of protection | III (IEC 61140, EN 61140, VDE 0140-1) |
Approvals
| ATEX | |
| Marked | II 3G Ex ec IIC T4 Gc |
| Certificate | DEMKO 20 ATEX 2334X |
| IECEx | |
| Marked | Ex ec IIC T4 Gc |
| Certificate | IECEx UL 20.0002X |
| UKCA Ex (UKEX) | |
| Marked | II 3G Ex ec IIC T4 Gc |
| Certificate | PxCAI22UKEx1052416X |
| Ex Data | |
| UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, IIC T4 |
assembly
| Type of mounting | Rail mounting |
| Position for mounting | at discretion (no temperature derating) |
| Feature Name | Feature Value |
|---|---|
| Voltage type (supply voltage) (EF002991) | DC |
| Input, current (EF003204) | Yes |
| Input, voltage (EF003205) | No |
| Input, resistor (EF003206) | No |
| Input, resistance thermometer (EF003207) | No |
| Input, thermocouple (EF003208) | No |
| Input signal, configurable (EF003209) | Yes |
| Resolution of the analogue inputs (EF003575) | 12 Bit |
| Output, current (EF003212) | No |
| Output, voltage (EF003213) | No |
| Output signal configurable (EF003214) | No |
| Number of analogue inputs (EF001994) | 8 |
| Number of analogue outputs (EF001995) | 0 |
| Analogue inputs configurable (EF008518) | Yes |
| Analogue outputs configurable (EF008519) | No |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Type of electric connection (EF003961) | Other |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | Yes |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 53.6 mm |
| Height (EF000040) | 126.1 mm |
| Depth (EF000049) | 77.1 mm |
