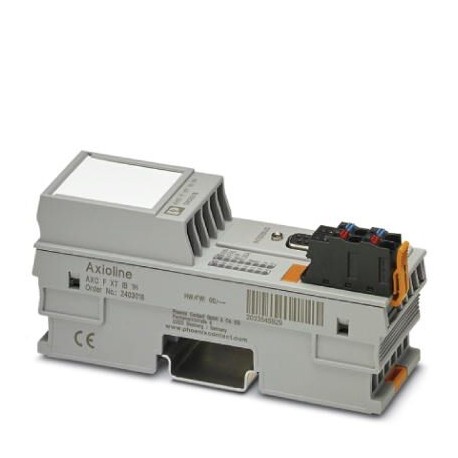

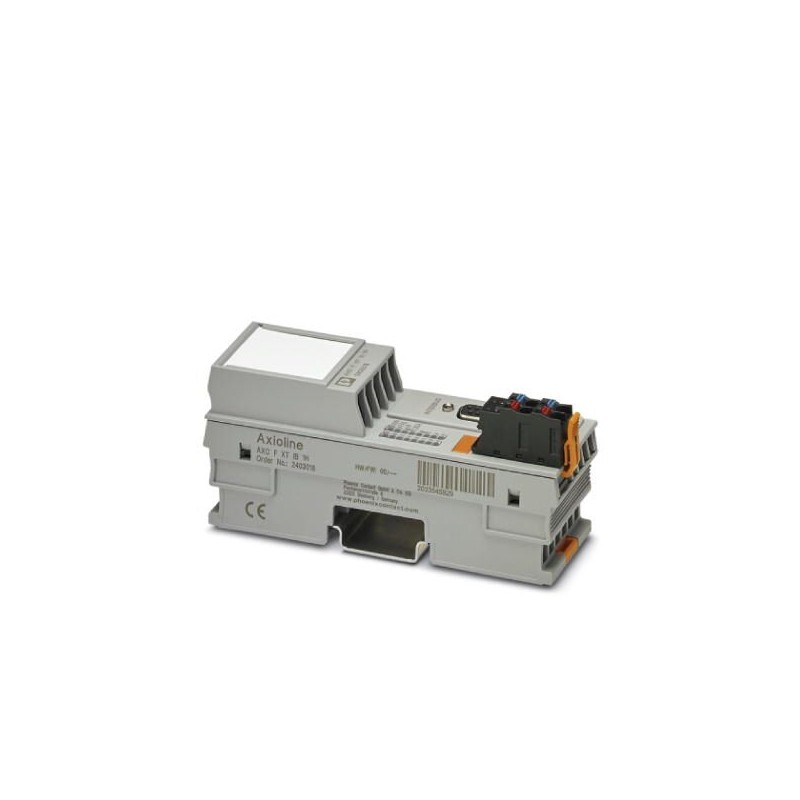

AXC F XT IB 2403018 PHOENIX CONTACT Left-alignable INTERBUS master, for the connection of INTERBUS remote bu..
AXC F XT IB
2403018
PHOENIX_CONTACT
Left-alignable INTERBUS master, for the connection of INTERBUS remote bus components to a compatible modular controller from the PLCnext Control range.
Left-aligned INTERBUS master for connecting INTERBUS remote bus components to a compatible modular control system from the PLCnext Control series.
PLC's > Fieldbus, decentr. periphery - communication module
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2403018 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626345819 |
| Weight per Piece (excluding packing) | 180.000 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Dimensions
| Dimensional drawing |  |
|---|---|
| Width | 35 mm |
| Height | 126.1 mm |
| Depth | 54 mm |
| Note on dimensions | The depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715). |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C (up to 2000 m above sea level) |
|---|---|
| -25 °C ... 55 °C (2000 m above sea level ... 3000 m above sea level) | |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level (at an operating temperature of up to 55°C, maximum)) |
| Air pressure (storage/transport) | 58 kPa ... 106 kPa (up to 4500 m above mean sea level) |
| Degree of protection | IP20 |
Connection data
| Designation | Axioline F connector |
|---|---|
| Connection method | Push-in connection |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
| Stripping length | 8 mm |
General
| Mounting type | DIN rail |
|---|---|
| Color | traffic grey A RAL 7042 |
| Net weight | 157.8 g |
| Diagnostics messages | Bus error in INTERBUS Yes |
| Peripheral fault in INTERBUS Yes | |
| Mounting type | DIN rail mounting |
Data interfaces
| Interface | INTERBUS remote bus |
|---|---|
| Number | 1 |
| Connection method | D-SUB-9 female connector |
Axioline potentials
| Designation | Supply of the logic voltage UL |
|---|---|
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 110 mA (without IBS OPTOSUB ... FO adapter) |
| max. 185 mA (with IBS OPTOSUB ... FO adapter) | |
| Protective circuit | Polarity reversal protection of the supply voltage Polarity protection diode |
| Transient protection Suppressor diode |
Standards and Regulations
| Mechanical tests | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g, 11 ms period, half-sine shock pulse |
|---|---|
| Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g | |
| Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
