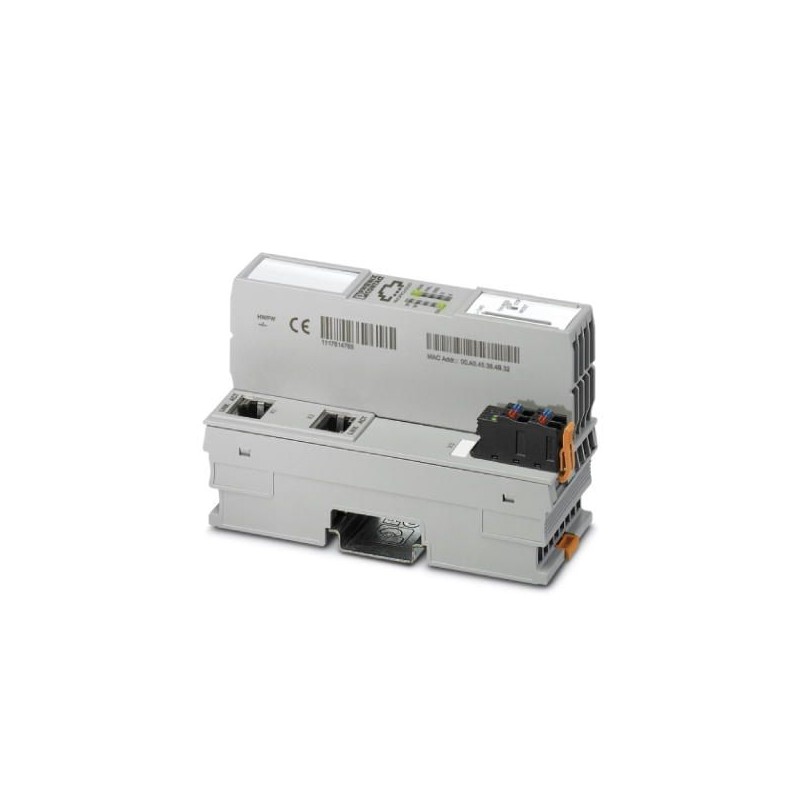

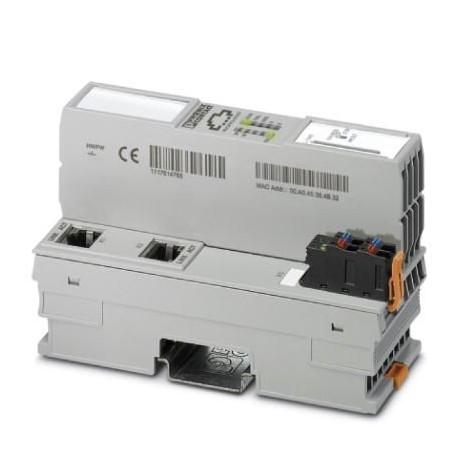

AXC CLOUD-PRO 2402985 PHOENIX CONTACT Controller
AXC CLOUD-PRO
2402985
PHOENIX_CONTACT
Controller
Axiocontrol for communication with PROFICLOUD. For direct control of Axioline I/O. With 2 Ethernet interfaces and programmability in accordance with IEC 61131-3. Complete with connection connector and labeling surface.
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2402985 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 7 (C-6-2017) |
| GTIN | 4055626231150 |
| Weight per Piece (excluding packing) | 246.300 g |
| Custom tariff number | 85371098 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Shock | 25g, Criterion 1, according to IEC 60068-2-27 |
| Vibration (operation) | 5g |
Control system
| Engineering tool | PC WORX |
|---|---|
| Programming languages supported | Programming in acc. with IEC 61131-3 |
Data interfaces
| Interface | Axioline F local bus |
|---|---|
| Number | 1 |
| Connection method | Bus base module |
| Transmission speed | 100 Mbps |
| Interface | Parameterization/operation/diagnostics |
| Number | 1 |
| Connection method | Micro USB type B |
| Interface | Ethernet |
| Number | 2 |
| Connection method | RJ45 socket |
| Transmission speed | 10/100 Mbps |
Power supply
| Typical current consumption | 125 mA |
|---|---|
| Max. current consumption | 160 mA |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC |
| Residual ripple | ± 5 % |
| Power dissipation | max. 3 W |
IEC 61131 runtime system
| Engineering tool | PC WORX |
|---|---|
| Program memory | 1 Mbyte |
| Mass storage | 1 Mbyte |
| Retentive mass storage | 48 kByte (NVRAM) |
| Number of control tasks | 8 |
| Realtime clock | Yes |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Interference emission | Noise emission test as per EN 61000-6-4 EN 55011 (emitted interference) Class A |
| Noise immunity | Noise immunity test in accordance with EN 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 EN 61000-4-3 (radiated noise immunity) Criterion A, 10 V/m |
| Immunity to surge | Noise immunity test in accordance with EN 61000-6-2 Transient overvoltage (surge) EN 61000-4-5/IEC 61000-4-5 EN 61000-4-5 (surge) Criterion B |
| Immunity to burst | Noise immunity test in accordance with EN 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 EN 61000-4-4 (EFT burst) Criterion B; Supply lines: 2 kV; Signal/data lines: 2 kV |
| Immunity to ESD | Noise immunity test in accordance with EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 EN 61000-4-2 (ESD) Criterion B, 6 kV contact discharge, 8 kV air discharge |
| Immunity to conducted interference | Noise immunity test in accordance with EN 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 EN 61000-4-6 (line noise immunity) Criterion A; Test voltage 10 V |
| Noise emission | EN 61000-6-4 |
| Vibration (storage/transport) | 5g |
| Shock | 25g, Criterion 1, according to IEC 60068-2-27 |
| Vibration (operation) | 5g |
| Shock (operation) | 10g (Bump endurance test according to DIN EN 60068-2-27) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027240602eCl@ss 4.127240602eCl@ss 5.027242589eCl@ss 5.127242700eCl@ss 6.027242200eCl@ss 7.027242207eCl@ss 8.027242207eCl@ss 9.027242207
