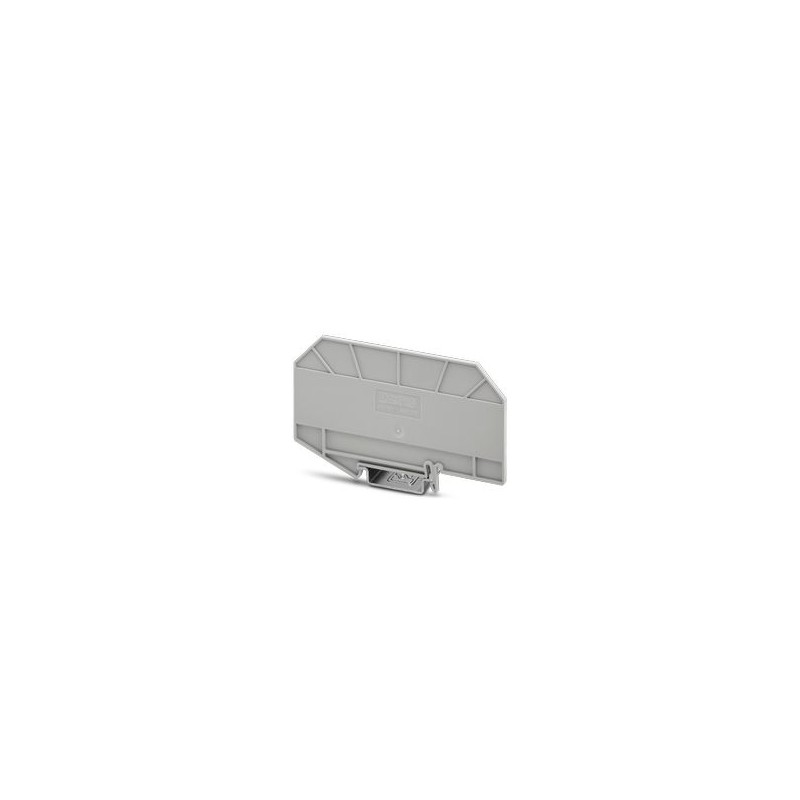

ATP-XTV 6-QUATTRO 1398831 PHOENIX CONTACT Separator plate, depth: 53.6 mm, width: 2.2 mm, height: 100.6 mm, ..
ATP-XTV 6-QUATTRO
1398831
PHOENIX_CONTACT
50
Separator plate, depth: 53.6 mm, width: 2.2 mm, height: 100.6 mm, colour: grey
Separator plate, width: 2.2 mm, height: 100.6 mm, colour: grey
Terminal blocks > Endplate and partition plate for terminal block
Modular TBs
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Separator plate |
| Width | 2.2 mm |
| Height | 100.6 mm |
| Depth | 53.6 mm |
| Depth at NS 35/7.5 | 61.1 mm |
| Depth at NS 35/15 | 68.6 mm |
| Colour | grey |
| Material | PA |
| Flammability class according to UL 94 | V0 |
| Environmental conditions | |
| Ambient Temperature (Service) | -60 °C ... 105 °C (for max. short-term operating temperature, see RTI Elec.) |
| Ambient Temperature (Storage/Transport) | -25 °C ... 60 °C (for a short time, no more than 24 hours, -60 °C to +70 °C) |
| Ambient Temperature (Mounting) | -5 °C ... 70 °C |
| Ambient Temperature (Drive) | -5 °C ... 70 °C |
| Permissible air humidity (storage/transport) | 30 % ... 70 % |
| Feature Name | Feature Value |
|---|---|
| End plate model (EF006586) | No |
| Partition model (EF006587) | Yes |
| Colour (EF000007) | Grey |
| Thickness (EF000125) | 2.2 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX TERMINAL BLOCKS EN.pdf | 69 Mbytes |
|
