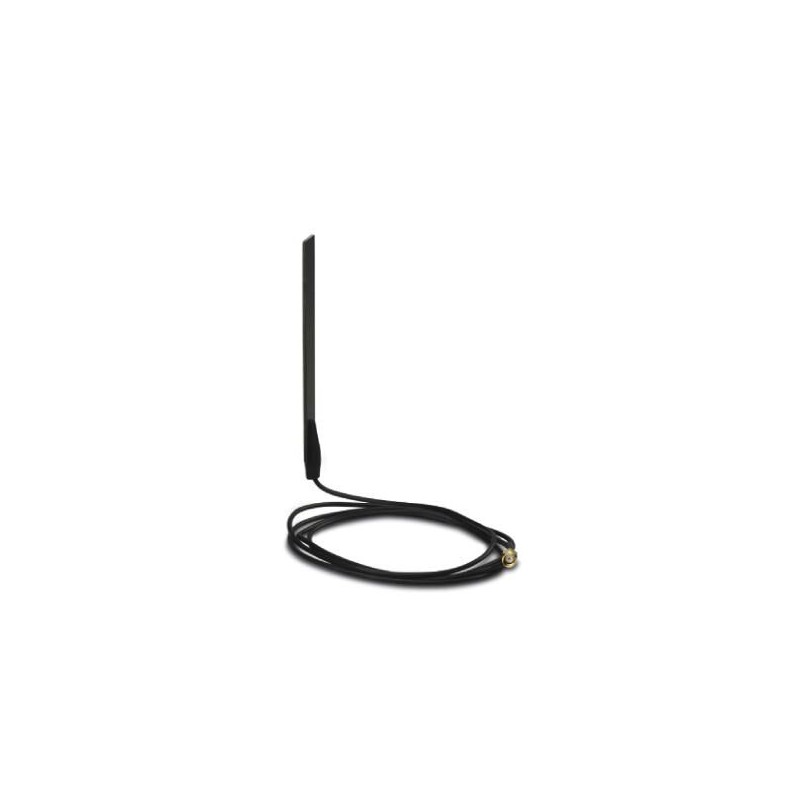

ANT-OMNI-0627-01 1089617 PHOENIX CONTACT Omnidirectional antenna, 689 ...2700 MHz, gain: 2 dBi, polarization..
ANT-OMNI-0627-01
1089617
PHOENIX_CONTACT
Omnidirectional antenna, 689 ...2700 MHz, gain: 2 dBi, polarization: linear, opening angle: h 360°, degree of protection: IP67, connection: RSMA (male), including 1.5 m connecting cable and adhesive tape for mounting
Data and telecommunication > Wireless antenna
Safety
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1089617 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626894706 |
| Weight per Piece (excluding packing) | 40.000 g |
| Custom tariff number | 85177000 |
| Country of origin | TW (Taiwan) |
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
General
| With connecting cable | yes |
|---|---|
| Frequency range | 689 ... 960 MHz |
| 1.7... 2.7 GHz | |
| 689 MHz ... 960 MHz | |
| 1.7 GHz ... 2.7 GHz | |
| Horizontal beamwidth | 360 ° |
| Vertical beamwidth | 70 ° (689 ... 960 MHz) |
| Polarization | Linear vertical |
| Impedance | 50 Ω |
| Gain | 1 dBi (689 ... 960 MHz) |
| 2 dBi (1.7 ... 2.7 GHz) | |
| Connection method | RSMA (male) |
| Fixed cable length | 1.50 m |
| Smallest bending radius, fixed installation | 5 mm |
| Cable, attenuation | 2 dB |
| Material | TPE (Antenna housing) |
| 3M™ VHB™ Tape 4622 (Double-sided adhesive tape) | |
| Mounting type | Control cabinet |
| Mast | |
| Assembly instructions | Remove any dust, moisture or dirt from the surface. If possible, adhere the entire surface of the adhesive tape. |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
