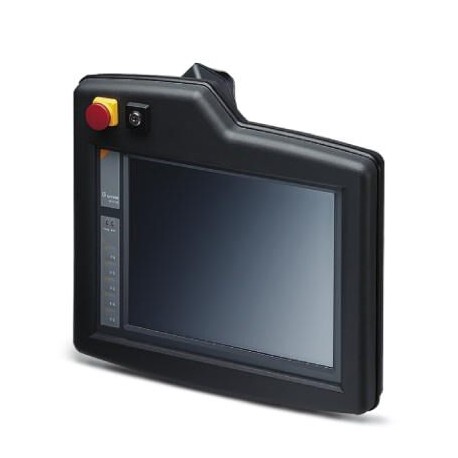

81324,203 S00006 2400582 PHOENIX CONTACT Mobile panel with 26.4 cm/10.4" TFT-display (Resistive industrial t..
81324,203 S00006
2400582
PHOENIX_CONTACT

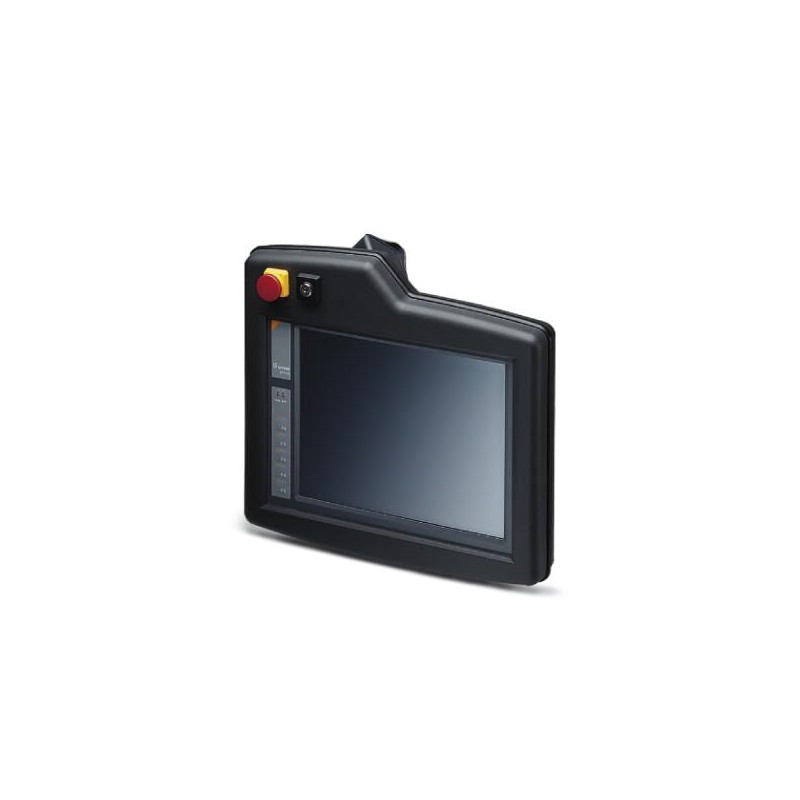

Mobile panel with 26.4 cm/10.4" TFT-display (Resistive industrial touch screen), 800 x 600 pixel(s) (SVGA), 262144 colors, Xscale
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Display
| Display | 26.4 cm/10.4" TFT |
|---|---|
| Screen resolution | 800 x 600 Pixel(s) (SVGA) |
| Touch technology | Resistive industrial touch screen |
| Brightness | 340 cd/m² typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | 50000 h |
| Colors | 262144 colors |
| Reading angle left | 70 ° |
| Reading angle right | 70 ° |
| Reading angle top | 50 ° |
| Reading angle bottom | 60 ° |
Computer data
| Processor | Xscale®PXA320, 806 MHz |
|---|---|
| Operating system | Windows®CE 5.0 |
| User software | TSvisRT |
| RAM | 128 MB SDRAM |
| 1 MB SRAM | |
| Mass storage | NAND-Flash, 1 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 1x USB Host 1.1 |
| Bus system | without |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Operating buttons | 5x System keys (Software keyboard, change task Alt+Tab, right mouse button, brightness, user-specific function) |
|---|---|
| Optional operating keys | 3-stage enable switch (2-channel), integrated in the handle |
| Weight | 3200 g |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 85 % (non-condensing) |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 15; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 4.0 | 27330200 |
|---|---|
| eCl@ss 4.1 | 27330200 |
| eCl@ss 5.0 | 27330200 |
| eCl@ss 5.1 | 27330200 |
| eCl@ss 6.0 | 27242300 |
| eCl@ss 7.0 | 27242303 |
| eCl@ss 8.0 | 27242303 |
| eCl@ss 9.0 | 27330202 |
UNSPSC
| UNSPSC 13.2 | 43211712 |
|---|---|
| UNSPSC 18.0 | 43211712 |
| UNSPSC 19.0 | 43211712 |
| UNSPSC 20.0 | 43211712 |
| UNSPSC 21.0 | 43211712 |
