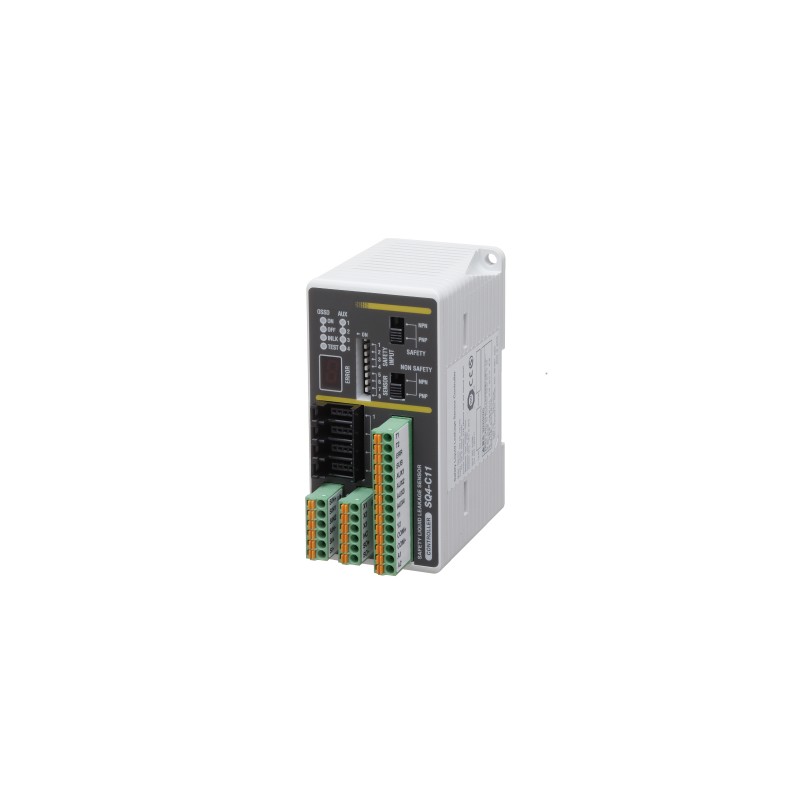

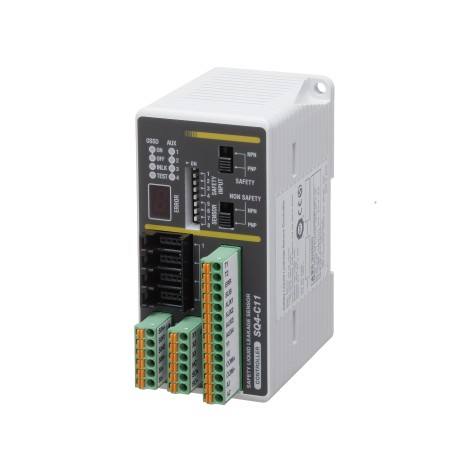

USQ4C11 SQ4-C11 PANASONIC Safety Controller, Control Category 4, Ple SIL3, safety liquid leak sensors can be..
USQ4C11
SQ4-C11
SQ4-C11
PANASONIC
Safety Controller, Control Category 4, Ple SIL3, safety liquid leak sensors can be connected up to 4 units
Safety Controller; Category 4, Ple SIL3; up to 4 safety sensors can be connected for liquid detection
SQ4-C11_Safety Liquid Leak Sensor [Control Category 4 PLe SIL3]_Safety Liquid Leak Sensor [Control Category 4 PLe SIL3] SQ4_Controller
Special Photoelectric Sensors - PANASONIC > SQ4 Leak detection photoelectric sensors. Pie SIL3 - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | SQ4-C11 |
| Part Number | SQ4-C11 |
| Product | Safety Liquid Leak Sensor [Control Category 4 PLe SIL3] |
| Details | Controller |
| Product name | Safety Liquid Leak Sensor [Control Category 4 PLe SIL3] SQ4 |
| Item | Specifications |
|---|---|
| Product Number | SQ4-C11 |
| Part Number | SQ4-C11 |
| Applicable standards:International standard | ISO 13849-1 (Category 4, PLe), IEC 61508-1 to 7 (SIL3) |
| Applicable standards:Japan | JIS B 9705-1 (Category 4), JIS C 0508-1 to 7 (SIL3) |
| Applicable standards:Europe | EN 55011 Class A, EN 61000-6-2, EN 50178, EN ISO 13849-1 (Category 4, PLe), EN 61508-1 to 7 (SIL3) (Note) Regarding EU Machinery Directive, a Notified Body, TÜV SÜD, has certified with the type examination certificate. |
| Applicable standards:North America | ANSI/UL 508, CAN/CSA C22.2 No.14 (Note) With regards to the standards in the US, under the US regulation 29 CFR 1910.7, TÜV SÜD America, a Nationally Recognized Testing Laboratory (NRTL) certified by OSHA, has certified with the safety certificate based on UL / ANSI standards. With regards to the standards in Canada, under the safety regulations based on CEC (Canadian Electric Code), TÜV SÜD America, a Certification Body accredited by SCC, has certified with the safety certificate based on CSA standards. |
| Applicable standards:South Korea | S1-G-1, S2-W-5, KS C IEC 60947-5-2 |
| Applicable standards:SEMI | Conforming to SEMI-S2-0310a |
| Power voltage | 24 V DC+10-15 % Ripple P-P 10 % or less |
| Current consumption | 200 mA or less |
| Control outputs (OSSD 1, OSSD 2) | PNP open-collector transistor / NPN open-collector transistor (switch method) [Selecting PNP output] - Maximum source current: 200 mA - Applied voltage: Same as power voltage (between control output to +V) - Residual voltage: 2.5 V or less (at 200 mA source current) [Selecting NPN output] - Maximum sink current: 200 mA - Applied voltage: Same as power voltage (between control output to 0 V) - Residual voltage: 2.0 V or less (at 200 mA sink current) |
| Control output(OSSD 1, OSSD 2):Response time | 20 ms or less (excluding the response time of the sensor) |
| Control outputs (OSSD 1, OSSD 2):Operation mode | ON when normal condition or initial detection, OFF when detection leakage or wrong installation |
| Control output(OSSD 1, OSSD 2):Protection circuit (Short-circuit protection) | Incorporated |
| Sensor monitor output(AUX1, 2, 3, 4, Non-safety output) | PNP open-collector transistor / NPN open-collector transistor (switch method) [Selecting PNP output] - Maximum source current: 60 mA - Applied voltage: Same as power voltage(between sensor monitor output to +V) - Residual voltage: 2.5 V or less (at 60 mA source current) [Selecting NPN output] - Maximum sink current: 60 m A - Applied voltage: Same as power voltage(between sensor monitor output to 0 V) - Residual voltage: 2.0 V or less (at 60 mA sink current) |
| Sensor monitor output(AUX1, 2, 3, 4, Non-safety output):Response time | 100 ms or less (excluding the response time of the sensor) |
| Sensor monitor output(AUX1, 2, 3, 4, Non-safety output):Operation mode(Output operation) | ON when normal condition, OFF when initial detection or accidental leakage |
| Sensor monitor output(AUX1, 2, 3, 4, Non-safety output):Protection circuit (Short-circuit protection) | Incorporated |
| Lockout output | OFF for lockout (Rating: Same as sensor monitor output) |
| Auxiliary output | Negative logic output of control output 1 / 2 (OSSD 1 / 2) (Rating: Same as sensor monitor output) [Auxiliary output ON when control output 1 / 2 (OSSD 1/2) is OFF] |
| Functions | Interlock / lockout cancel / Test input / External device monitor / Safety input / Control output polarity selection / Non-safety output polarity selection / Sensor connection number setting |
| Protection | IP20 (IEC) (However, it should be in IP54 protection structure of control panel) |
| Ambient temperature | -10 to +55 ℃ +14 to +131℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℃ -4 to +158 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| PFHD | When PNP output is selected: 1.89 × 10-9 (when connecting 4 safety liquid leak sensors) When NPN output is selected: 1.80 × 10-9 (when connecting 4 safety liquid leak sensors) |
| MTTFD | 100 years or more |
| Material | Main unit case: PC + ABS (alloy) |
| Weight | Net weight: 170 g approx Gross weight: 440 g approx |
