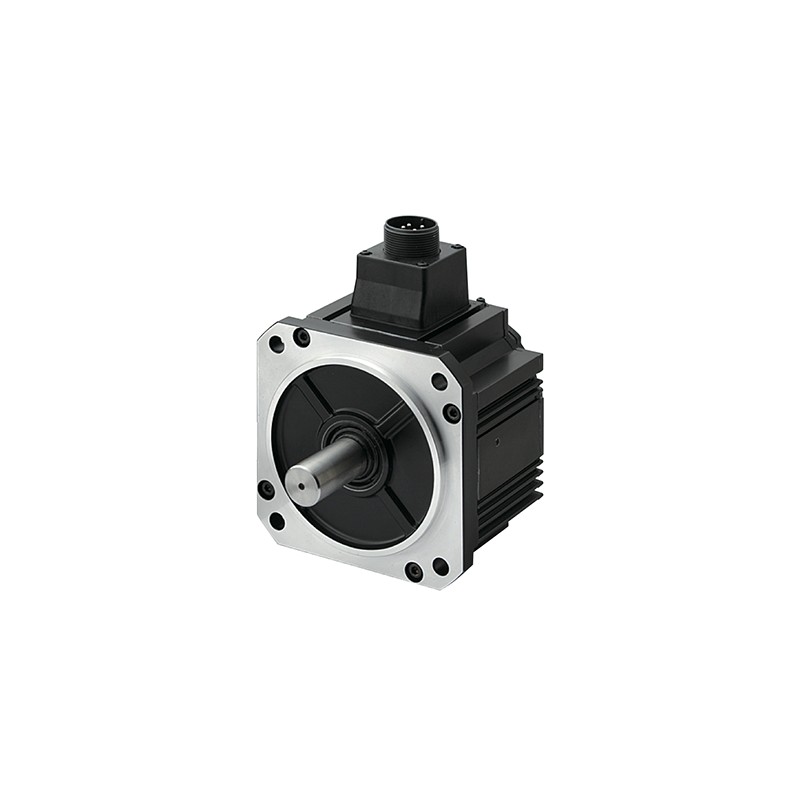

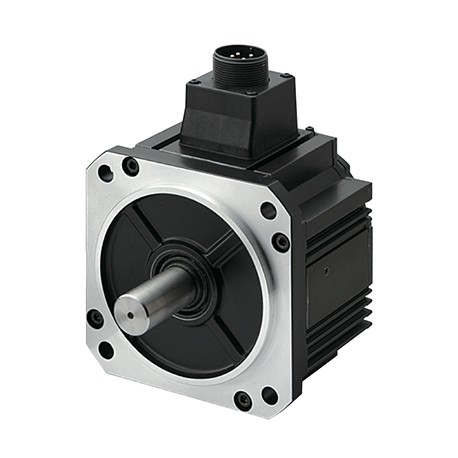

MDME302G1G PANASONIC MINAS A5 Family Servo Motor
MDME302G1G
PANASONIC
MINAS A5 Family Servo Motor
MDME302G1G_Servo Motor_MINAS A5 Family Servo Motor_Middle inertia, Connector type, IP67
Minas A5 Series - PANASONIC > MINAS A5, Drivers, 1 phase 200V power supply - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Part Number | MDME302G1G |
| Product | Servo Motor |
| Details | Middle inertia, Connector type, IP67 |
| Product name | MINAS A5 Family Servo Motor |
| Features | Servo motor that bring out potential of the machine. |
| Item | Specifications |
|---|---|
| Part Number | MDME302G1G |
| Details | Middle inertia, Connector type, IP67 |
| Family Name | MINAS A5 |
| Series | MDME Series |
| Type | Middle inertia |
| Protection class | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 130 mm sq. |
| Flange sq. dimension (Unit:mm) | 130 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 4.5 |
| Voltage specifications | 200 V |
| Rated output | 3000 W |
| Rated current (A (rms)) | 17.4 |
| Holding brake | without |
| Mass (kg) | 11.0 |
| Oil seal | with |
| Shaft | Key-way |
| Rated torque (N ⋅ m) | 14.3 |
| Momentary Max. peak torque (N ⋅ m) | 43.0 |
| Max. current (A (o-p)) | 74 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4285 x 2 in parallel |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 2000 |
| Rated rotational Max. speed (r/min) | 3000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 12.9 |
| Recommended moment of inertia ratio of the load and the rotor | 10 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SERVO A5 LIQI EN.pdf | 5 Mbytes |
|
| PDF CATALOGUE PANASONIC EN.pdf | 15 Mbytes |
|
| Data sheet MDME302G1G PANASONIC MINAS A5 Family Servo Motor | 10 Mbytes |
|
| Download general catalog |
|
