MDDHT3420
PANASONIC
1

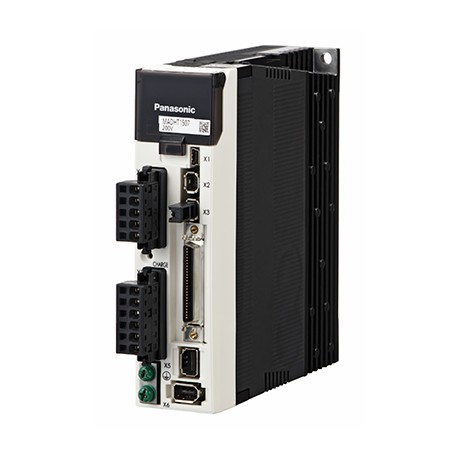

Servo drive MINAS A5, position, velocity and torque control, with Safety Torque Off function(STO), for 1 to 1.5kW MSME and 1.5kW MHME motors , 3x400VAC
Minas A5 Series - PANASONIC > MINAS A5, Drivers, 3 phase 400V power supply - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Part Number | MDDHT3420 |
Product | Servo Driver |
Details | A5 series Speed, Position, Torque, Full-closed type with the safety function |
Product name | MINAS A5 Family Servo Driver |
Features | Servo motor that bring out potential of the machine. |
Item | Specifications |
---|---|
Part Number | MDDHT3420 |
Details | A5 series Speed, Position, Torque, Full-closed type with the safety function |
Family Name | MINAS A5 |
Series | A5 series |
Type | Speed, Position, Torque, Full-closed type |
Frame | D-Frame |
Frequency response | 2.3 kHz |
Control method | Position control, Velocity control, Torque control, and Full-closed control |
Safety Function | with the safety function |
Power device Max. current rating | 30A |
Current detector current rating | 20A |
Supply voltage | 3-phase 400 V |
I/F Classification of type | Analog/Pulse |
Dimensions (W) (Unit: mm) | 85 |
Dimensions (H) (Unit: mm) | 150 |
Dimensions (D) (Unit: mm) | 170 |
Mass (kg) | 1.8 |
Environment | For more details, please refer to the instruction manual. |
