View larger

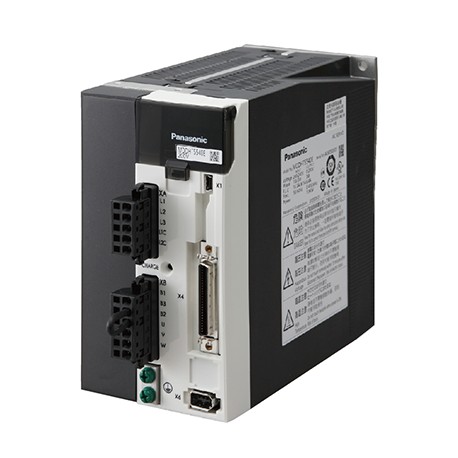

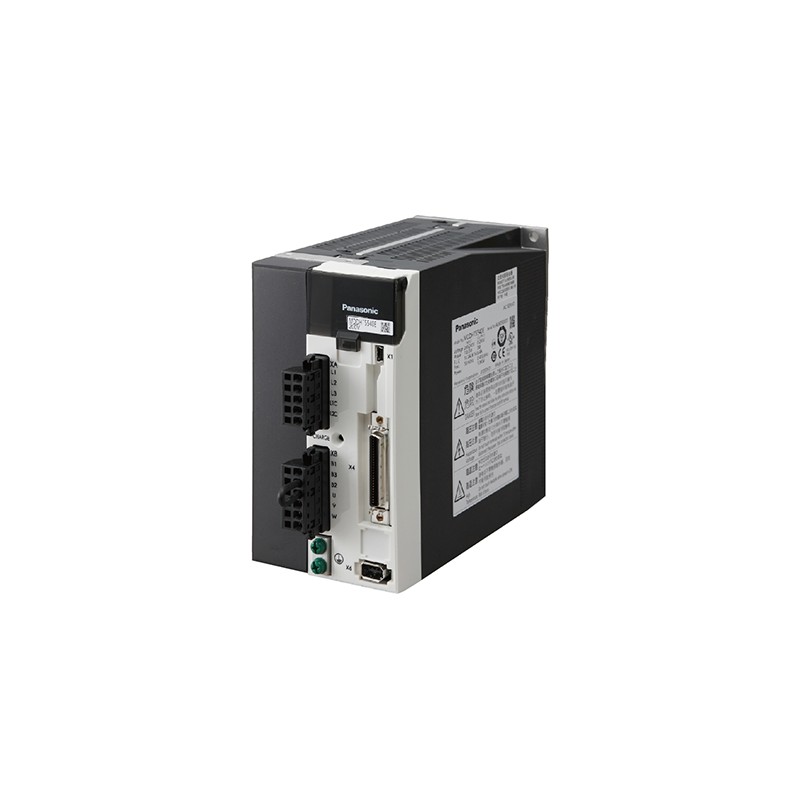

MADHT1505E PANASONIC Servo drive MINAS A5E series, position control via address input, without analog input,..
MADHT1505E
PANASONIC
MADHT1505E_Servo Driver_MINAS A5 Family Servo Driver_A5E seriesPosition control typewithout the safety function
Minas A5 Series - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Part Number | MADHT1505E |
| Product | Servo Driver |
| Details | A5E series Position control type without the safety function |
| Product name | MINAS A5 Family Servo Driver |
| Features | Servo motor that bring out potential of the machine. |
| Item | Specifications |
|---|---|
| Part Number | MADHT1505E |
| Details | A5E series Position control type without the safety function |
| Family Name | MINAS A5 |
| Series | A5E series |
| Type | Position control type |
| Frame | A-Frame |
| Frequency response | 2.3 kHz |
| Control method | Position control |
| Safety Function | without the safety function |
| Power device Max. current rating | 10A |
| Current detector current rating | 5A |
| Supply voltage | Single/3-phase 200 V |
| I/F Classification of type | Analog/Pulse |
| Dimensions (W) (Unit: mm) | 40 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 130 |
| Mass (kg) | 0.8 |
| Environment | For more details, please refer to the instruction manual. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SERVO A5 LIQI EN.pdf | 5 Mbytes |
|
| MADHT1505E MADHT1505E MADHT1505E | 20 Kbytes |
|
| MADHT1505E MADHT1505E MADHT1505E madht1505e_e_cata2.pdf | 201 Kbytes |
|
| MADHT1505E MADHT1505E MADHT1505E madht1505e_e_cata3.pdf | 183 Kbytes |
|
| Download general catalog |
|
