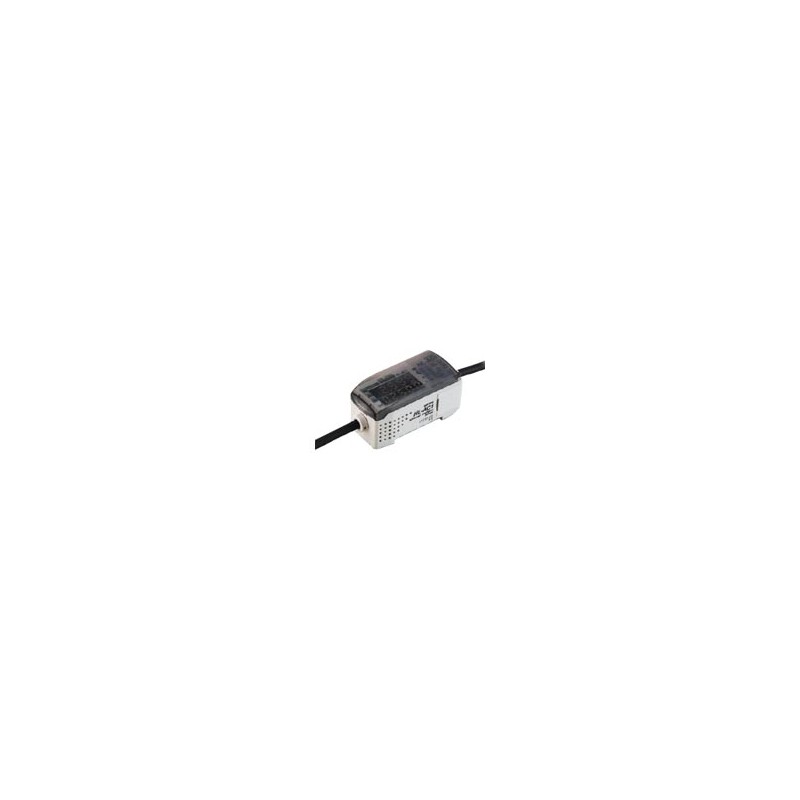

HLAC1P HL-AC1P PANASONIC HL-T1 sensor controller PNP, 12-24VDC
HLAC1P
HL-AC1P
PANASONIC
HL-T1 sensor controller PNP, 12-24VDC
Laser Sensors - Spot Type - AN - PANASONIC > HL-T1 Controller - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | HL-AC1P |
| Part Number | HL-AC1P |
| Product | Ultra-compact Laser Collimated Beam Sensor |
| Details | Controller (PNP output) |
| Product name | Ultra-compact Laser Collimated Beam Sensor HL-T1 |
| Item | Specifications |
|---|---|
| Product Number | HL-AC1P |
| Part Number | HL-AC1P |
| Type | PNP output |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Applicable sensor head | HL-T1001A/T1001F, HL-T1005A/T1005F, HL-T1010A/T1010F |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 190 mA or less (when connected to the sensor head) |
| Measuring cycle | 150 micro s |
| Linear output | Current / voltage output switchable (Note) -During current output: 4 to 20 mA/F.S., Maximum load resistance: 300 Ohm -During voltage output: plus or minus 4 V/F.S., Output impedance 100 Ohm (In the monitor focus function, it can also be set at plus or minus 5 V, 0 to 5 V, etc.) (Note) Switching between current and voltage is accomplished by a switch on the bottom of the controller. |
| Linear output : Temperature characteristics | plus or minus 0.2 % F.S./℃ (Note) These are the temperature characteristics of the linear output when the sensor head is connected. |
| Settable average sampling rate | 1 / 2 / 4 / 8 / 16 / 32 / 64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 (Note) The judgment output and linear output and linear output response time is calculated by (Measuring cycle) x (Set average sampling rate + 1). |
| Judgment outputs (HIGH, PASS, LOW) | PNP open-collector transistor -Maximum source current: 50 mA -Applied voltage: 30 V DC or less (between judgment output and +V) -Residual voltage: 2 V or less (at 50 mA source current) |
| Judgment outputs (HIGH, PASS, LOW) : Utilization category | DC-12 or DC-13 |
| Judgment outputs (HIGH, PASS, LOW) : Number of outputs | HIGH / PASS / LOW 3 values output |
| Judgment outputs (HIGH, PASS, LOW) : Output operation | HIGH: ON when measured value > HIGH threshold value PASS: ON when HIGH threshold value >= measured value >= LOW threshold value LOW: ON when LOW threshold value > measured value |
| Judgment outputs (HIGH, PASS, LOW) : Short-circuit protection | Incorporated |
| Laser OFF input | +V connection: Laser emission halt Open: Laser emission -Applied voltage: 30 V DC or less (leak current: 0.1 mA or less) |
| Zero reset input | +V connection: Zero reset operates Open: Zero reset ineffective -Applied voltage: 30 V DC or less (leak current: 0.1 mA or less) |
| Timing input | +V connection: Effective Open: Ineffective -Applied voltage: 30 V DC or less (leak current: 0.1 mA or less) |
| Reset input | +V connection: Effective Open: Ineffective -Applied voltage: 30 V DC or less (leak current: 0.1 mA or less) |
| Indicators : Laser emitting (LD ON) | Green LED (lights up during laser emission) |
| Indicators : Judgment outputs | HIGH: Orange LED (lights up when measured value > HIGH threshold value) PASS: Green LED (lights up when HIGH threshold value >= measured value >= LOW threshold value) LOW: Yellow LED (lights up when LOW threshold value > measured value) |
| Indicators : Enable (ENABLE) | Green LED (lights up during normal operation) |
| Indicators : Zero reset (ZERO) | Green LED (lights up when the zero reset function is enabled) |
| Main digital display | 5 digit red LED display [RUN mode: Either the measured value (mm) or the hold value will be displayed. Reverse mode: The display orientation will be reversed.] |
| Sub-digital display | 5 digit yellow LED display [RUN mode: Either the resolution or laser beam reception amount will be displayed. THR mode: The threshold value will be displayed., Reverse mode: The display orientation will be reversed.] |
| Main functions | ・Measured value display ・Setting value, light amount value resolution display ・Standard received light setting ・Automatic scaling ・Scaling ・Display reverse ・ECO display ・Display digits limitation ・Sample hold ・Peak hold ・Bottom hold ・Peak to peak hold ・Self peak hold ・Self bottom hold ・Zero reset ・Initial reset ・ON-delay timer ・OFF-delay timer ・One-shot timer ・Differentiation ・Sensitivity selection ・Threshold value direct setting ・Positioning teaching ・2-point teaching ・Automatic teaching ・Hysteresis width variability ・Monitor focus ・Non-measuring time setting ・(A – B) calculation(Note：The calculation unit is necessary.) ・(A + B) calculation(Note：The calculation unit is necessary.) ・Mutual interference prevention (Note：The calculation unit is necessary.) ・Laser deterioration detection ・Key lock ・Zero reset memory |
| Pollution degree | 3 (industrial environment) |
| Environmental resistance : Ambient temperature | 0 to +50 ℃+32 to +122 ℉(No dew condensation allowed), Storage: -25 to +65 ℃-13 to +149 ℉ |
| Environmental resistance : Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MOhm , or more, with 500 V DC megger between all supply terminals connected together and enclosure |
| Environmental resistance : Vibration resistance | 10 to 150 Hz frequency, 0.7 mm0.028 indouble amplitude in X, Y and Z directions for 80 min. |
| Environmental resistance : Shock resistance | 300 m/s2acceleration (30 G approx.) in X, Y and Z directions three times each |
| Material | Enclosure: Polybutylene terephthalate Transparent cover: Polycarbonate |
| I/O cable | 0.09 mm210-core composite cable, 2 m6.562 ftlong |
| I/O cable extension | Extension up to total 10 m32.808 ftis possible, with 0.09 mm2or more, cable. (Note) If the extension cable is longer than 10 m32.808 ft, then it will not qualify for CE marking. |
| Weight | Net weight: 140 g approx. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| Datasheet 1: HLAC1P - HLAC1P | HL-AC1P | 3 Mbytes |
 |
| Download general catalog |
|
