PANASONICLaser Sensors - Spot Type - AN - PANASONICUHGC1200L3P HG-C1200L3-P PANASONIC Compact Laser Displacement Sensor, 200mm+/-80mm, IO Link, cable 2m

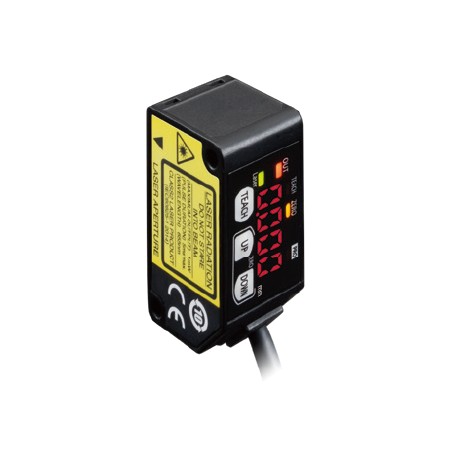

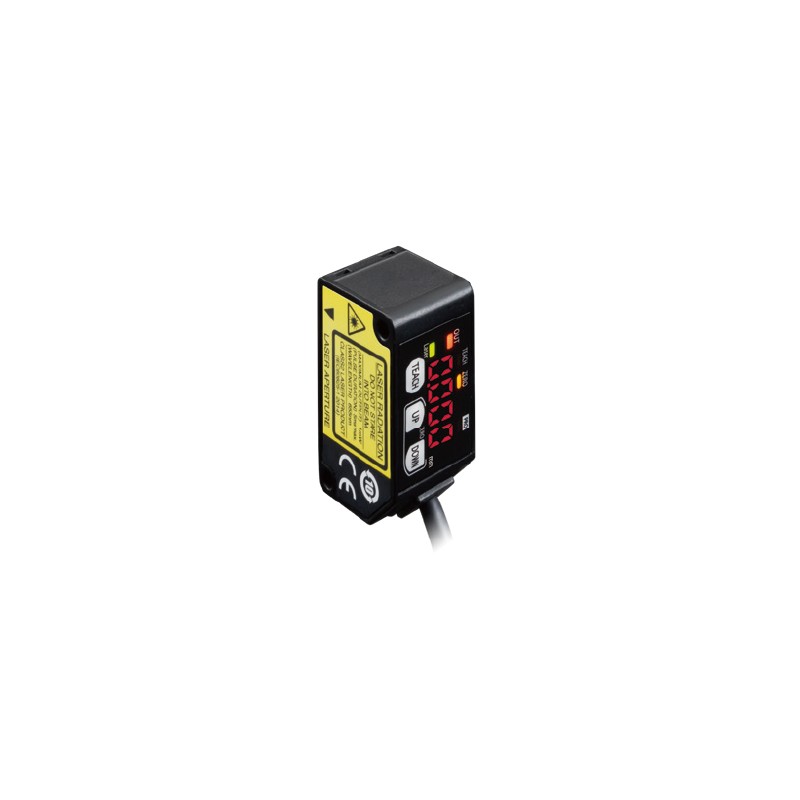

PANASONIC UHGC1200L3P HG-C1200L3-P - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

UHGC1200L3P HG-C1200L3-P PANASONIC Compact Laser Displacement Sensor, 200mm+/-80mm, IO Link, cable 2m

Reference: UHGC1200L3P

Code: HG-C1200L3-P

Manufacturer: PANASONIC

Description:

Compact Laser Displacement Sensor, 200mm+/-80mm, IO Link, cable 2m
Micro Laser Displacement Sensor, measuring range 200mm. ± 80mm., repeatability 200μm., beam diameter approx. 300μm., PNP digital output, IO-Link interface, 2m cable
HG-C1200L3-P_CMOS Type Micro Laser Distance Sensor_CMOS type Micro Laser Distance Sensor HG-C1000L_Discrete wire type

Categories:

  • PANASONIC > Laser Sensors - Spot Type - AN - PANASONIC

Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 426,10 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product NumberHG-C1200L3-P
Part NumberHG-C1200L3-P
ProductCMOS Type Micro Laser Distance Sensor
DetailsDiscrete wire type
Product nameCMOS type Micro Laser Distance Sensor HG-C1000L

ItemSpecifications
Product NumberHG-C1200L3-P
Part NumberHG-C1200L3-P
Applicable regulations and certificationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA Regulations, UL/c-UL Certification
Measurement center distance200 mm 7.874 in
Measuring range±80 mm 3.150 in
Repeatability200 μm 7.874 mil
Linearity±0.2 % F.S.
Temprerature characteristics0.03%F.S./℃
Light sourceRed semiconductor laser Class 2 [IEC / EN/ JIS / GB / KS / FDA (Note)] Max. output: 1 mW, emission peak wavelength: 655 nm 0.026 mil
(Note:)This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3.
Beam diameterø300 μm 11.811 mil approx.
Supply voltage24 V DC ±10 % Ripple P-P 10 %
Current consumption40 mA or less (at 24 V DC supply voltage)
Communication output (C/Q) : IO-Link communicationIO-Link Specification V1.1
Communication output (C/Q) : Baud rateCOM3 (230.4 kbps)
Communication output (C/Q) : Process data4 byte
Communication output (C/Q) : Minimum cycle time1.0 ms
Control outputPNP open-collector transistor
• Maximum source current: 50 mA
• Applied voltage: 30 V DC or less (Between control output to +V)
• Residual voltage: 1.5 V or less (at 50 mA source current)
• Leakage current: 0.1 mA or less
Control output:Output operationSwitchable between either Light-ON or Dark-ON
Control output:Short-circuit protectionIncorporated (auto reset type)
Response timeSwitchable between 1.5 ms / 5 ms / 10 ms
Pollution degree2
Operating altitude2,000 m 6561.680 ft or less
ProtectionIP67(IEC)
Ambient temperature-10 to +45℃ -14 to 113℉ (No dew condensation or icing allowed), Storage: -20 to +60℃ -4 to 140℉
Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminanceIncandescent light: 3,000 ℓx or less at the light-receiving face
Vibration resistance10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock resistance500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
CableDiscrete wire type: 0.2 mm2 4-core PVC cable, 2 m 6.562 ft long
M12 connector type: 0.2 mm2 4-core PVC cable with connector, 0.3 m 0.984 ft long
Cable extensionExtension up to total 20 m 65.617 ft is possible with 0.3 mm2, or more, cable.
MaterialEnclosure: Aluminum die-cast, Front cover: Acrylic
Weight30 g approx. (without cable), 80 g approx. (including cable)
Remark(Note):Supply voltage: 24 V DC, ambient temperature: +20℃ +68℉, response time: 10 ms, and analog output value of measurement center distance are used for unspecified measurement conditions. The subject is white ceramics.
