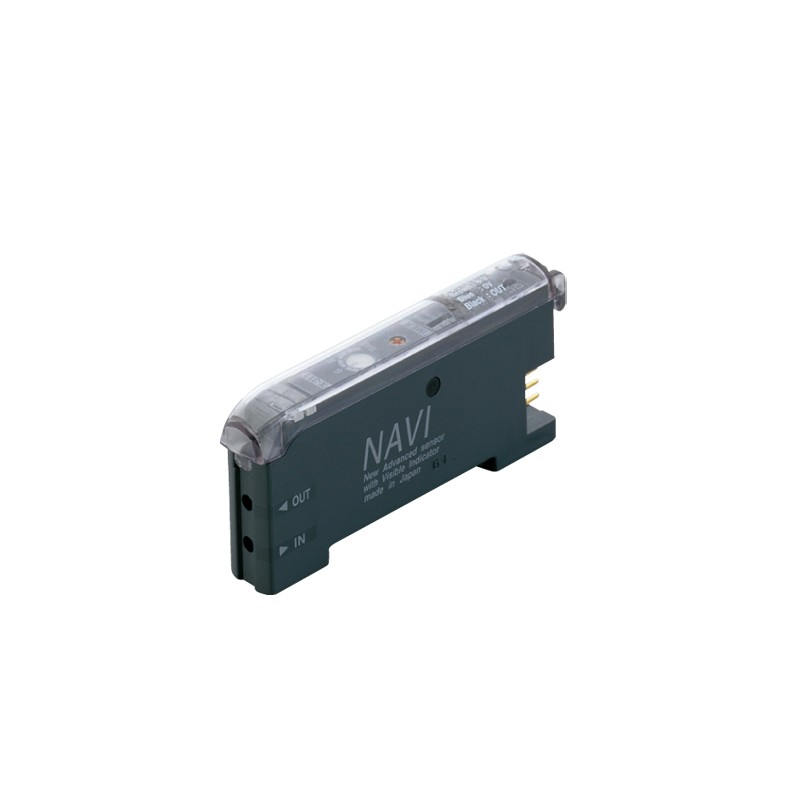

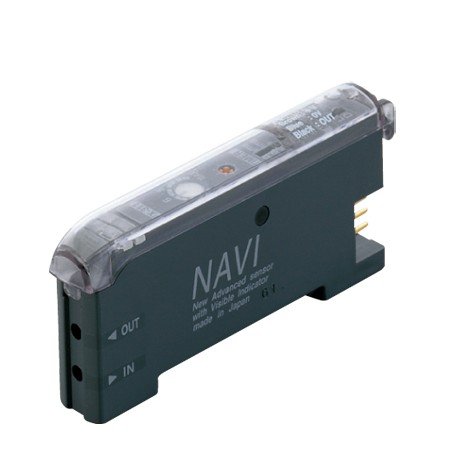

FX311P FX-311P PANASONIC Fiber amplifier, PNP, 12-turn potentiometer, connector type
FX311P
FX-311P
PANASONIC
Fiber amplifier, PNP, 12-turn potentiometer, connector type
Fiber - PANASONIC > FX311 preset digital fiber sensor - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Often bought together
▲More info
▲| Product Number | FX-311P |
| Part Number | FX-311P |
| Product | Manually Set Fiber Sensor |
| Details | PNP output |
| Product name | Manually Set Fiber Sensor FX-311 |
| Item | Specifications |
|---|---|
| Product Number | FX-311P |
| Part Number | FX-311P |
| Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Power consumption | 840 mW or less (Current consumption 35 mA or less at 24 V supply voltage) |
| Output | PNP open-collector transistor • Maximum source current: 100 mA(50 mA, if five, or more, amplifiers are connected in cascade) • Applied voltage: 30 V DC or less (between output and +V) • Residual voltage: 1.5 V or less[at 100 mA sink current (50 mA, if five, or more, amplifiers are connected in cascade)] |
| Output:Output operation | Selectable either Light-ON or Dark-ON, with selection switch |
| Output:Short-circuit protection | Incorporated |
| Response time | 250 μs or less (STD / S-D), 2 ms or less (LONG) selectable with selection switch |
| Operation indicator | Orange LED (lights up when the output is ON) |
| Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
| Sensitivity adjuster | 12-turn potentiometer with indicator (Pointer part: red backlight) (Note):The red backlight of the pointer part lights up more brightly when the power is turned ON and when the sensitivity is adjusted. |
| Timer function | Incorporated with OFF-delay timer, selectable either effective (approx. 10 ms or 40 ms) or ineffective |
| Automatic interference prevention function | Incorporated (Up to 4 sets of fiber heads can be mounted close together.) (Note):When the power supply is switched on, the emission timing are automatically set for interference prevention. |
| Ambient temperature | -10 to +55 ℃ -14 to +131 ℉ (If 4 to 7 units are connected in cascade: -10 to +50 ℃ +14 to +122 ℉, if 8 to 16 units are connected in cascade: -10 to +45 ℃ +14 to +113 ℉) (No dew condensation or icing allowed) Storage: -20 to +70 ℃ -4 to +158 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 ℓx at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure (Note):The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only. |
| Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure (Note):The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only. |
| Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.03 in amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions for five times each |
| Emitting element (modulated) | Red LED |
| Emitting element (modulated):Peak emission wavelength | 650 nm 0.026 mil |
| Material | Enclosure: Heat-resistant ABS, Case cover: Polycarbonate |
| Connection method | Connector (Note):The cable for amplifier connection is not supplied as an accessory. Make sure to use the optional quick-connection cable given below. Main cable (3-core): CN-73-C1 (cable length 1 m 3.281 ft), CN-73-C2 (cable length 2 m 6.562 ft), CN-73-C5 (cable length 5 m 16.404 ft) Sub cable (1-core): CN-71-C1 (cable length 1 m 3.281 ft), CN-71-C2 (cable length 2 m 6.562 ft), CN-71-C5 (cable length 5 m 16.404 ft) |
| Cable length | Total length up to 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. |
| Weight | Net weight: 15 g approx., Gross weight: 20 g approx. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| Datasheet 1: FX311P - FX311P | FX-311P | 4 Mbytes |
 |
| Download general catalog |
|
