UFTV40 FT-V40 PANASONIC Fiber (thru-beam, cylindrical, ø 4mm, side-view, bending radius R4, 2m, IP50)
UFTV40
FT-V40
PANASONIC
Fiber (thru-beam, cylindrical, ø 4mm, side-view, bending radius R4, 2m, IP50)
Fiber optic Flexible barrier, cylindrical, ø 4mm., side detection, bending radius, cable 2 m., IP50
FT-V40_Thru-beam type Fiber_Cylindrical Type Fiber_Cylindrical Type Fiber
Fiber - PANASONIC > CYLINDRICAL type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FT-V40 |
| Part Number | FT-V40 |
| Product | Thru-beam type Fiber |
| Details | Cylindrical Type Fiber |
| Product name | Cylindrical Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-V40 |
| Part Number | FT-V40 |
| Sensing mode | Thru-beam type |
| Fiber type | Cylindrical type Side-view |

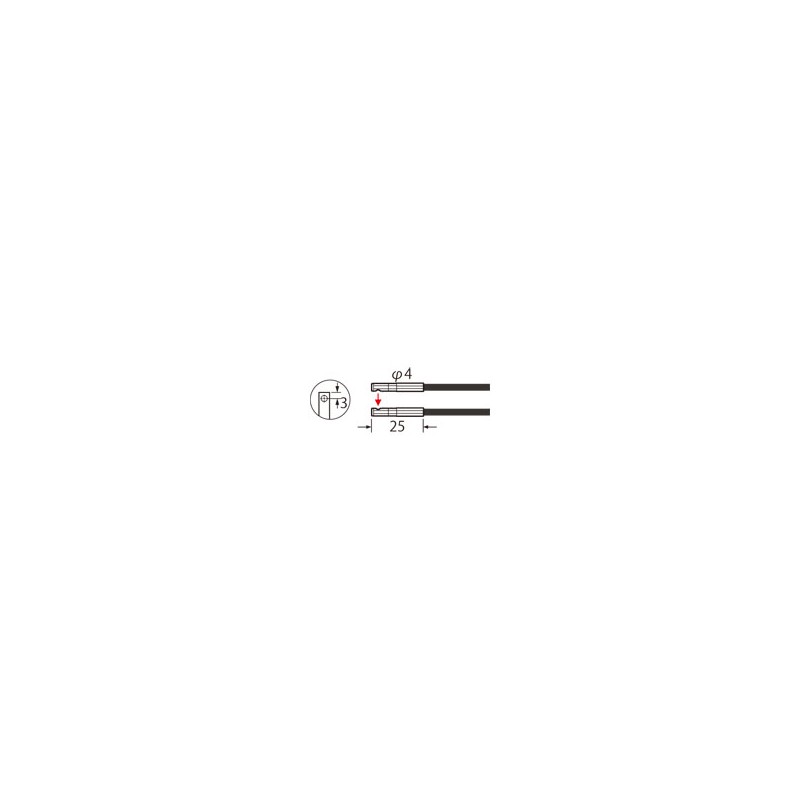

| Fiber head dia. | dia. 4 mm |
| Fiber head length | 25 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 2.5 mm |
| Fiber cable length | 2 m |
| Allowable bending radius | R4 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP50 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 3,500 mm 137.795 in (FX-500 series) |
| Sensing range（HYPR） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（U-LG） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（LONG） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（FAST） | 2,400 mm 94.488 in (FX-500 series) |
| Sensing range（H-SP） | 850 mm 33.465 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FTV40 - FT-V40 | 4 Mbytes |
|
| Download general catalog |
|
