FT-R44Y
PANASONIC
1
Fiber (thru-beam, elbow-type 90°, M4, 2m, oil-resistant)
Barrier optical fiber, flexible (R4), oil resistant, rectangular head projection at 90°, barrier, M4, range 3 m (FX500), temperat range. -55/+80ºC, beam diameter 1 mm, fiber length 2 m, IP67
FT-R44Y_Thru-beam type Fiber_Square Head Fiber_Square Head type Fiber
Fiber - PANASONIC > CHEMICAL-RESISTANT type optical fibers - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | FT-R44Y |
Part Number | FT-R44Y |
Product | Thru-beam type Fiber |
Details | Square Head type Fiber |
Product name | Square Head Fiber |
Item | Specifications |
---|---|
Product Number | FT-R44Y |
Part Number | FT-R44Y |
Sensing mode | Thru-beam type |
Fiber type | Square head type |
Fiber head dia. | M4 |

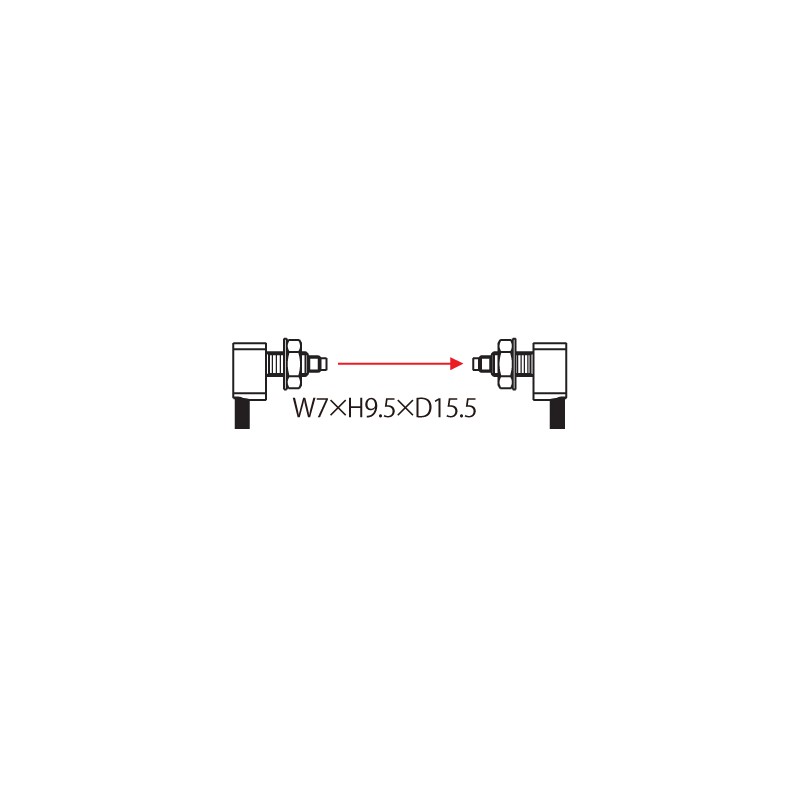

Fiber head length | W7 x H9.5 x D15.5 mm |
With sleeve | No |
Beam direction | Top-view |
Beam axis dia./ Spot diameter | dia. 1 mm |
Fiber cable length | 2 m |
Allowable bending radius | R4 mm |
Free-cut | Available |
Semi-custom | Not available |
Mounting lens | Not available |
Applicable lens | FX-LE1,FX-LE2,FX-SV1 |
Mounting protective tube | Not available |
Application | Oil-resistant |
Environmental resistance : Protection | IP67 |
Environmental resistance : Ambient temperature MAX | 80 degrees |
Environmental resistance : Ambient temperature MIN | -55 degrees |
Sensing range(STD) | 720 mm 28.346 in (FX-500 series) |
Sensing range(HYPR) | 3,000 mm 118.110 in (FX-500 series) |
Sensing range(U-LG) | 1,600 mm 62.992 in (FX-500 series) |
Sensing range(LONG) | 1,100 mm 43.307 in (FX-500 series) |
Sensing range(FAST) | 430 mm 16.929 in (FX-500 series) |
Sensing range(H-SP) | 130 mm 5.118 in (FX-500 series) |
