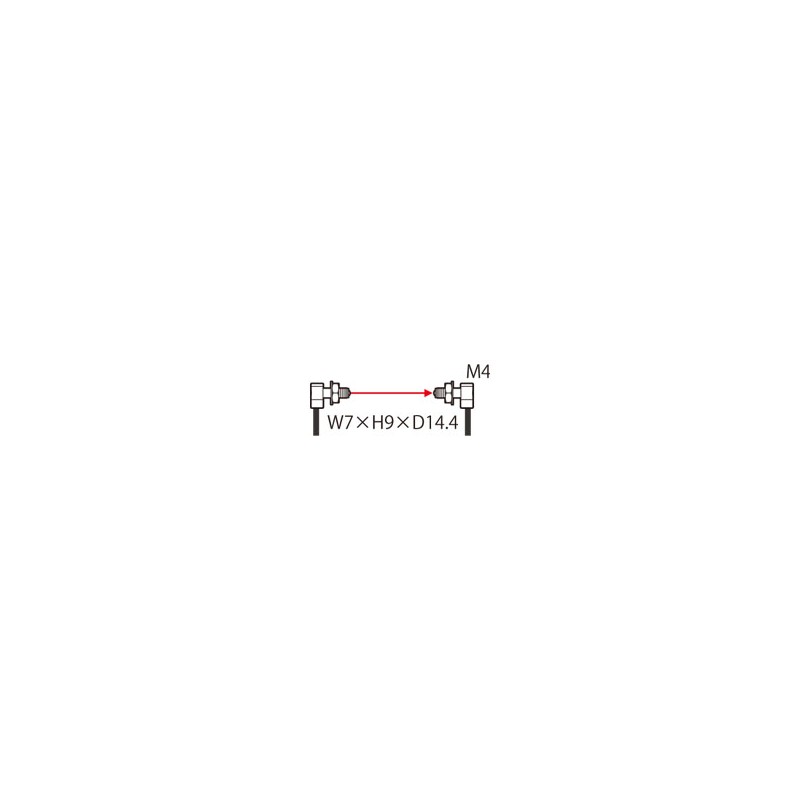

UFTR42W FT-R42W PANASONIC Fiber (thru-beam, square-head 90°, bending radius R1, M4, 2m, IP40)
UFTR42W
FT-R42W
FT-R42W
PANASONIC
Fiber (thru-beam, square-head 90°, bending radius R1, M4, 2m, IP40)
Fiber Optic Rectangular Head 90° Projection, Barrier, M4, Range 3.6 m, Beam Diameter 2.2 mm, Fiber Length 2 m, IP40
FT-R42W_Thru-beam type Fiber_Square Head Fiber_Square Head type Fiber
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FT-R42W |
| Part Number | FT-R42W |
| Product | Thru-beam type Fiber |
| Details | Square Head type Fiber |
| Product name | Square Head Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-R42W |
| Part Number | FT-R42W |
| Sensing mode | Thru-beam type |
| Fiber type | Square head type |
| Fiber head dia. | M4 |
| Fiber head length | W7 x H9 x D14.4 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 2.2 mm |
| Fiber cable length | 2 m |
| Allowable bending radius | R1 mm |
| Free-cut | Available |
| Semi-custom | Available |
| Mounting lens | Available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 2,200 mm 86.614 in (FX-500 series) |
| Sensing range（HYPR） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（U-LG） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（LONG） | 3,500 mm 137.795 in (FX-500 series) |
| Sensing range（FAST） | 1,300 mm 51.181 in (FX-500 series) |
| Sensing range（H-SP） | 460 mm 18.110 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FTR42W - FT-R42W | FT-R42W | 4 Mbytes |
|
| Download general catalog |
|
