UFDS33GW FD-S33GW PANASONIC Fiber (reflective, cylindrical, ø 3mm, bending radius R1, 2m, IP40)
UFDS33GW
FD-S33GW
FD-S33GW
PANASONIC
Fiber (reflective, cylindrical, ø 3mm, bending radius R1, 2m, IP40)
Direct reflection optical fiber, cylindrical, ø 3mm, bend radius R1, 2m, IP40
FD-S33GW_Reflective type Fiber_Cylindrical Type Fiber_Cylindrical Type Fiber
Fiber - PANASONIC > CYLINDRICAL type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FD-S33GW |
| Part Number | FD-S33GW |
| Product | Reflective type Fiber |
| Details | Cylindrical Type Fiber |
| Product name | Cylindrical Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-S33GW |
| Part Number | FD-S33GW |
| Sensing mode | Reflective type |
| Fiber type | Cylindrical type |

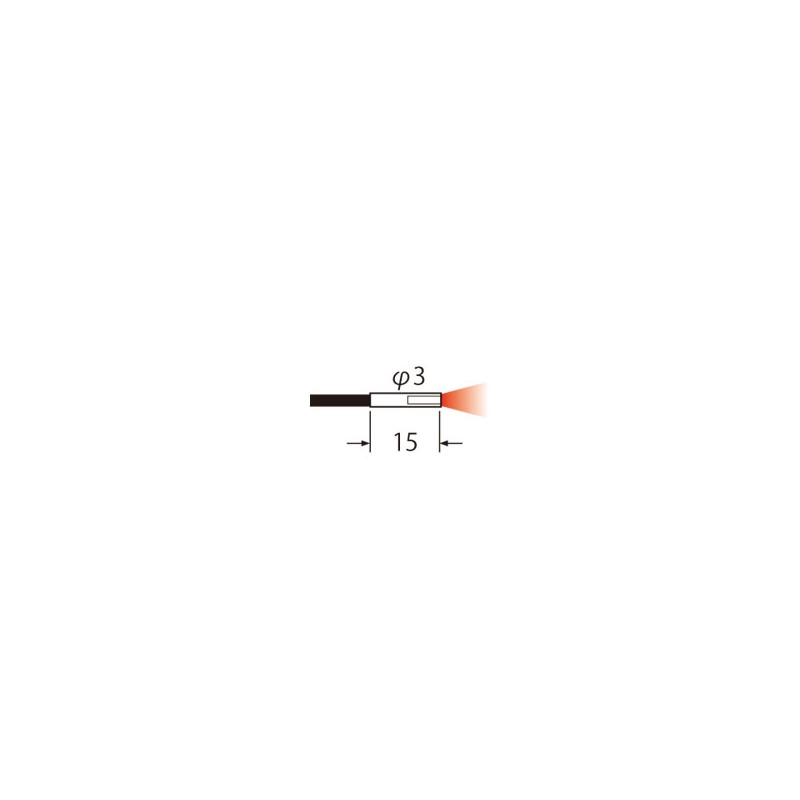

| Fiber head dia. | dia. 3 mm |
| Fiber head length | 15 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Fiber cable length | 2 m |
| Allowable bending radius | R1 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 150 mm 5.906 in (FX-500 series) |
| Sensing range（HYPR） | 670 mm 26.378 in (FX-500 series) |
| Sensing range（U-LG） | 340 mm 13.386 in (FX-500 series) |
| Sensing range（LONG） | 280 mm 11.024 in (FX-500 series) |
| Sensing range（FAST） | 90 mm 3.543 in (FX-500 series) |
| Sensing range（H-SP） | 25 mm 0.984 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FDS33GW - FD-S33GW | FD-S33GW | 4 Mbytes |
|
