UFDS32W FD-S32W PANASONIC Fiber (reflective, cylindrical, ø 3mm, bending radius R1, 2m, IP67)
UFDS32W
FD-S32W
FD-S32W
PANASONIC
Fiber (reflective, cylindrical, ø 3mm, bending radius R1, 2m, IP67)
Direct reflection optical fiber, cylindrical, ø 3mm, bend radius R1, 2m, IP67
FD-S32W_Reflective type Fiber_Cylindrical Type Fiber_Cylindrical Type Fiber
Fiber - PANASONIC > CYLINDRICAL type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FD-S32W |
| Part Number | FD-S32W |
| Product | Reflective type Fiber |
| Details | Cylindrical Type Fiber |
| Product name | Cylindrical Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-S32W |
| Part Number | FD-S32W |
| Sensing mode | Reflective type |
| Fiber type | Cylindrical type |

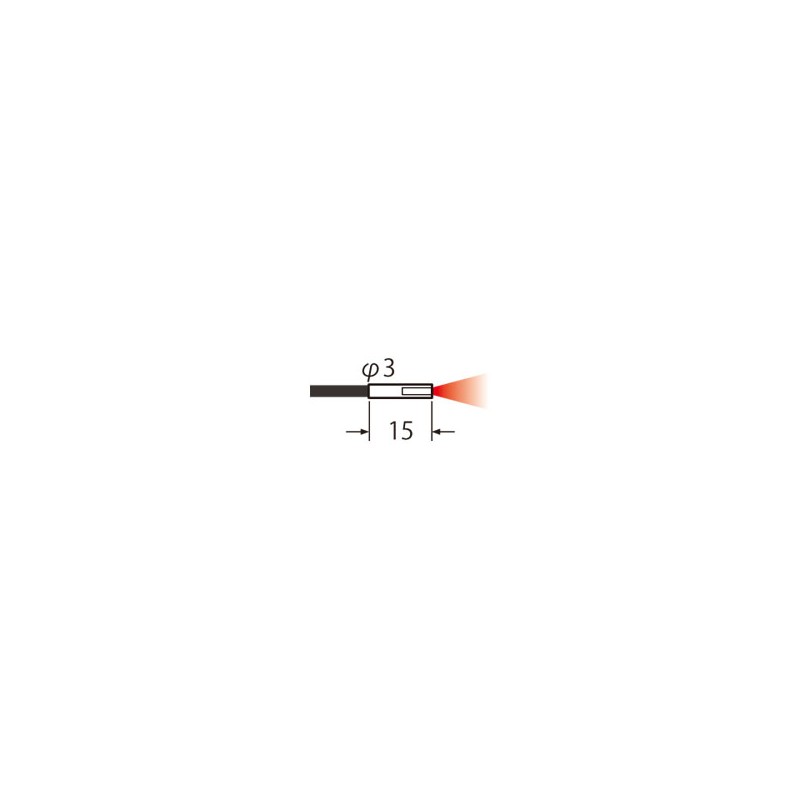

| Fiber head dia. | dia. 3 mm |
| Fiber head length | 15 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Fiber cable length | 2 m |
| Allowable bending radius | R1 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 270 mm 10.630 in (FX-500 series) |
| Sensing range（HYPR） | 900 mm 35.433 in (FX-500 series) |
| Sensing range（U-LG） | 630 mm 24.803 in (FX-500 series) |
| Sensing range（LONG） | 430 mm 16.929 in (FX-500 series) |
| Sensing range（FAST） | 150 mm 5.906 in (FX-500 series) |
| Sensing range（H-SP） | 45 mm 1.772 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FDS32W - FD-S32W | FD-S32W | 4 Mbytes |
|
