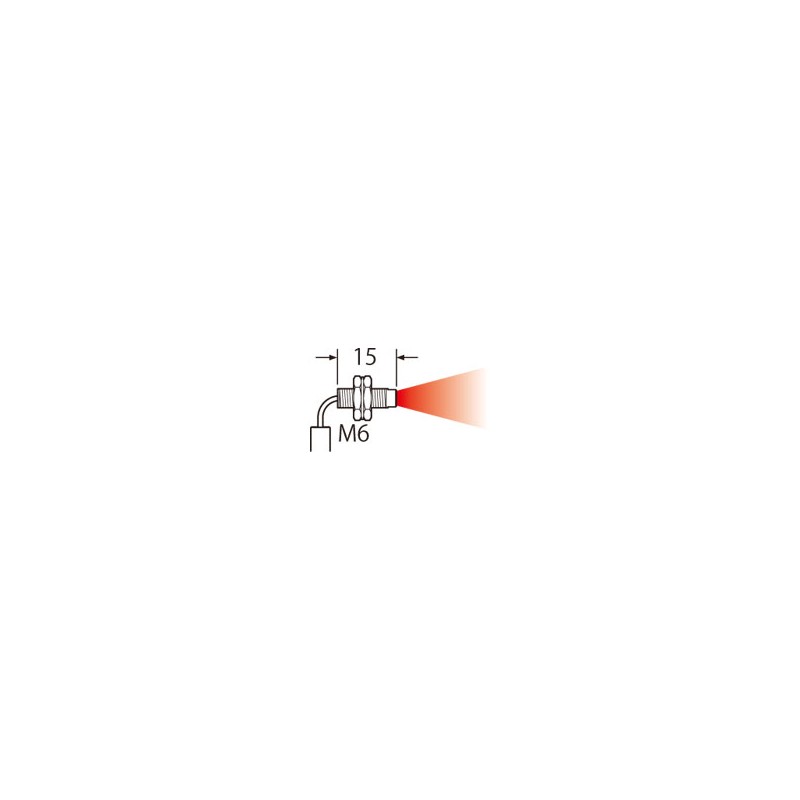

UFDR60 FD-R60 PANASONIC Fiber (reflective, elbow-type 90°, bending radius R4, M6, 2m, IP67)
UFDR60
FD-R60
FD-R60
PANASONIC
Fiber (reflective, elbow-type 90°, bending radius R4, M6, 2m, IP67)
Reflex fiber optics. direct, angled (90º), M6, "Tough" model; Detection range. 1100 mm (FX500), curved radius. 4mm (R4), long. 2 m, cuttable, temp. range -55º/+80ºC, IP67
FD-R60_Reflective type Fiber_Threaded Type Fiber_Threaded Type Fiber
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Often bought together
▲Best sellers
▲More info
▲| Product Number | FD-R60 |
| Part Number | FD-R60 |
| Product | Reflective type Fiber |
| Details | Threaded Type Fiber |
| Product name | Threaded Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-R60 |
| Part Number | FD-R60 |
| Sensing mode | Reflective type |
| Fiber type | Threaded type Elbow |
| Fiber head dia. | M6 |
| Fiber head length | 15 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis accuracy : Beam axis position | 150 micro m |
| Beam axis accuracy : Beam axis Inclination | plus or minus 3 degrees |
| Fiber cable length | 2 m |
| Allowable bending radius | R4 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 290 mm 11.417 in (FX-500 series) |
| Sensing range（HYPR） | 1,100 mm 43.307 in (FX-500 series) |
| Sensing range（U-LG） | 600 mm 23.622 in (FX-500 series) |
| Sensing range（LONG） | 550 mm 21.654 in (FX-500 series) |
| Sensing range（FAST） | 190 mm 7.480 in (FX-500 series) |
| Sensing range（H-SP） | 65 mm 2.559 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FDR60 - FD-R60 | FD-R60 | 4 Mbytes |
|
| Download general catalog |
|
