View larger

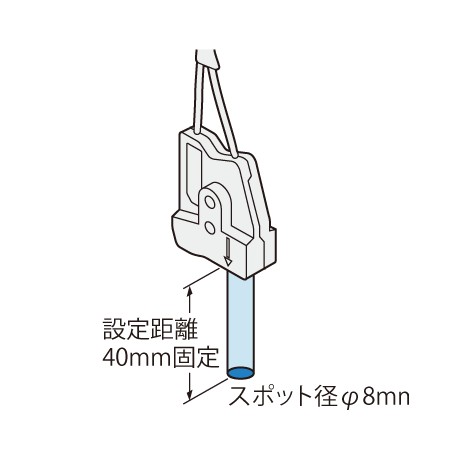

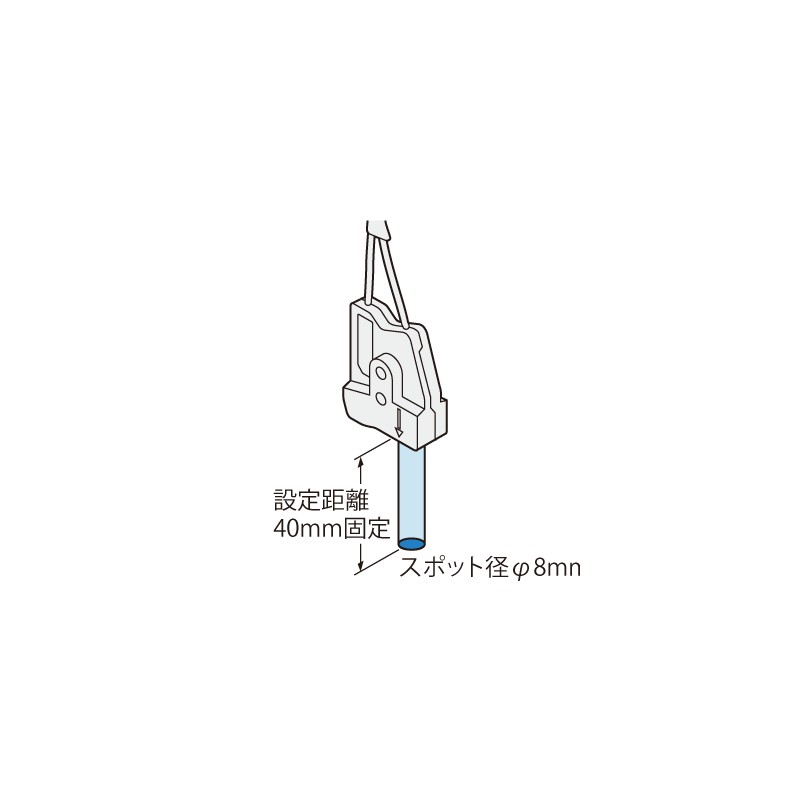

UFDL54 FDL54 FD-L54 PANASONIC Fiber for FZ-10, long sens. ramge type, 40 mm, 8 mm spot diam.
UFDL54
FDL54
FD-L54
PANASONIC
Fiber for FZ-10, long sens. ramge type, 40 mm, 8 mm spot diam.
FZ-10 Series Direct Reflective Fiber Optics, Long Range, 40mm, Spot Diameter 6mm
Fiber - PANASONIC > FZ Colour detection sensor amplifier accessories - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FD-L54 |
| Part Number | FD-L54 |
| Product | Color Detection Fiber Sensor |
| Details | Fiber [Long sensing range] |
| Product name | Color Detection Fiber Sensor FZ-10 |
| Item | Specifications |
|---|---|
| Product Number | FD-L54 |
| Part Number | FD-L54 |
| Material | Fiber core: Acrylic Sheath: Polyethylene Fiber head: Polycarbonate Lens: Acrylic |
| Weight | Net weight: 15 g approx. |
| Applicable amplifiers | FZ-11, FZ-11P |
| Sensing range | 30 to 50 mm 0.181 to1.969 in (Note) The sensing range of each fiber is the range for which white non-glossy paper can be detected at the sensitivity for which teaching has been done with a white non-glossy paper (50 x 50 mm 1.969 x1.969 in) at the respective rated setting distance and at the 16th grade of tolerance. |
| Setting distance | 40 mm1.575 in(fixed) |
| Spot diameter (at setting distance) | dia. 8 mm dia.0.315 in |
| Allowable bending radius | R25 mm R0.984 in or more (Note) If the fiber cable is bent at less than R25 mm R0.984 in or less, the detectability may deteriorate. |
| Fiber cable length | 1 m3.281 ft |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FDL54 - FDL54 | FD-L54 | 4 Mbytes |
|
| Download general catalog |
|
