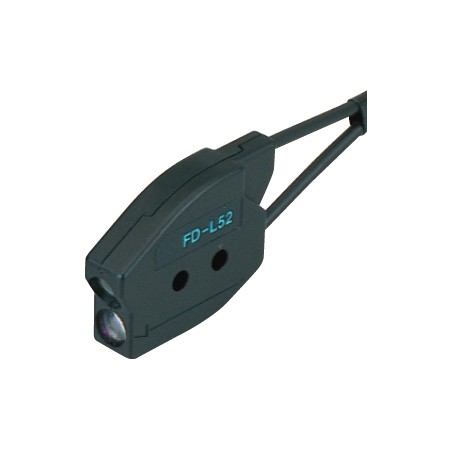

UFDL52 FDL52 FD-L52 PANASONIC Fiber for FZ-10, high precision type, 10 mm, 2,5 mm spot diam.
UFDL52
FDL52
FD-L52
PANASONIC
Fiber for FZ-10, high precision type, 10 mm, 2,5 mm spot diam.
FZ-10 Series Direct Reflection Fiber Optics, High Precision, 10mm, Spot Diameter 2.5mm
Fiber - PANASONIC > FZ Colour detection sensor amplifier accessories - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FD-L52 |
| Part Number | FD-L52 |
| Product | Color Detection Fiber Sensor |
| Details | Fiber [High precision] |
| Product name | Color Detection Fiber Sensor FZ-10 |
| Item | Specifications |
|---|---|
| Product Number | FD-L52 |
| Part Number | FD-L52 |
| Material | Fiber core: Acrylic Sheath: Polyethylene Fiber head: Polycarbonate Lens: Polyalylate |
| Weight | Net weight: 15 g approx. |
| Applicable amplifiers | FZ-11, FZ-11P |
| Sensing range | 8 to 11 mm 0.315 to0.433 in (Note) The sensing range of each fiber is the range for which white non-glossy paper can be detected at the sensitivity for which teaching has been done with a white non-glossy paper (50 x 50 mm 1.969 x1.969 in) at the respective rated setting distance and at the 16th grade of tolerance. |
| Setting distance | 10 mm0.394 in(fixed) |
| Spot diameter (at setting distance) | dia. 2.5 mm dia.0.098 in |
| Allowable bending radius | R25 mm R0.984 in or more (Note) If the fiber cable is bent at less than R25 mm R0.984 in or less, the detectability may deteriorate. |
| Fiber cable length | 1 m3.281 ft |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FDL52 - FDL52 | FD-L52 | 4 Mbytes |
|
| Download general catalog |
|
