UFDL20H FD-L20H PANASONIC Fiber (convergent reflective, fixed focus, general purpose type, 6 x 18 x 14mm, be..
UFDL20H
FD-L20H
FD-L20H
PANASONIC
Fiber (convergent reflective, fixed focus, general purpose type, 6 x 18 x 14mm, bending radius R2, 2m, IP40)
Flexible Fiber Optic Direct Reflection, Fixed Focus, for Generic Applications, 6 x 18 x 14mm, R2 Bend Radius, 2m, IP40
Fiber - PANASONIC > CONVERGENT REFLECTIVE type optical fibers - PANASONIC CONVERGENT REFLECTIVE type - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FD-L20H |
| Part Number | FD-L20H |
| Product | Convergent Reflective type Fiber |
| Details | Convergent Reflective type Fiber |
| Product name | Convergent Reflective Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-L20H |
| Part Number | FD-L20H |
| Sensing mode | Convergent Reflective type |
| Fiber type | General purpose |

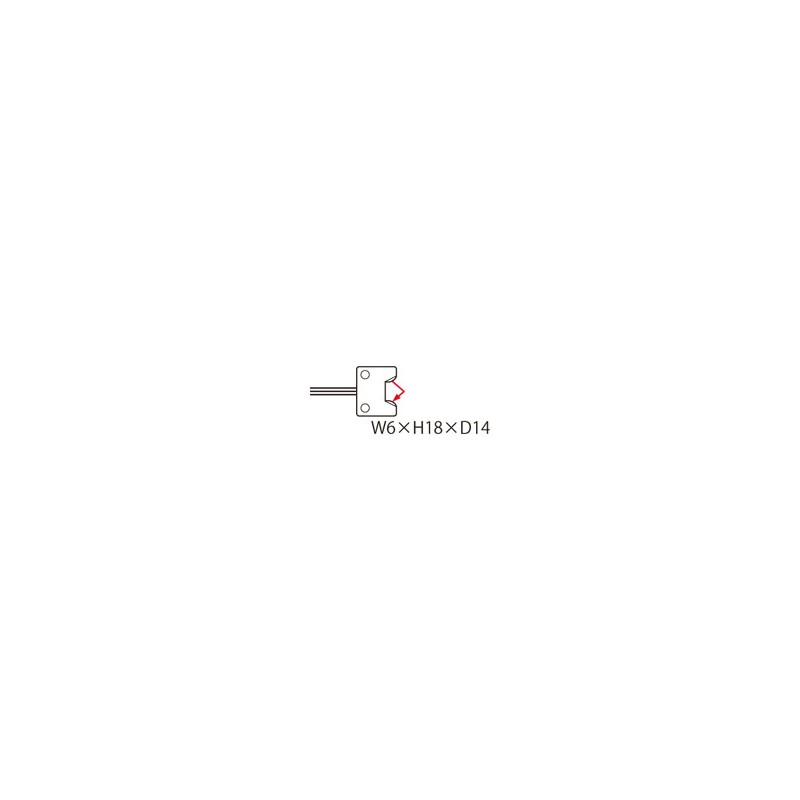

| Fiber head length | W6 x H18 x D14 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Fiber cable length | 2 m |
| Allowable bending radius | R2 mm |
| Free-cut | Available |
| Semi-custom | Fiber length change |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 70 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 23 mm 0.906 in (FX-500 series) |
| Sensing range（HYPR） | 45 mm 1.772 in (FX-500 series) |
| Sensing range（U-LG） | 35 mm 1.378 in (FX-500 series) |
| Sensing range（LONG） | 32 mm 1.260 in (FX-500 series) |
| Sensing range（FAST） | 2 to 15 mm 0.079 to 0.591 in (FX-500 series) |
| Sensing range（H-SP） | 5 to 9 mm 0.197 to 0.354 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FDL20H - FD-L20H | FD-L20H | 4 Mbytes |
|
