FDH18L31 FD-H18-L31 PANASONIC Fiber, heat resistant 180°C , free cut type
FDH18L31
FD-H18-L31
PANASONIC
Fiber, heat resistant 180°C , free cut type
Fiber - PANASONIC > HEAT-RESISTANT type optical fibers - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | FD-H18-L31 |
| Part Number | FD-H18-L31 |
| Product | Convergent Reflective type Fiber |
| Details | Heat-resistant Fiber |
| Product name | Heat-resistant Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-H18-L31 |
| Part Number | FD-H18-L31 |
| Sensing mode | Convergent Reflective type |
| Fiber type | Glass substrate detection |

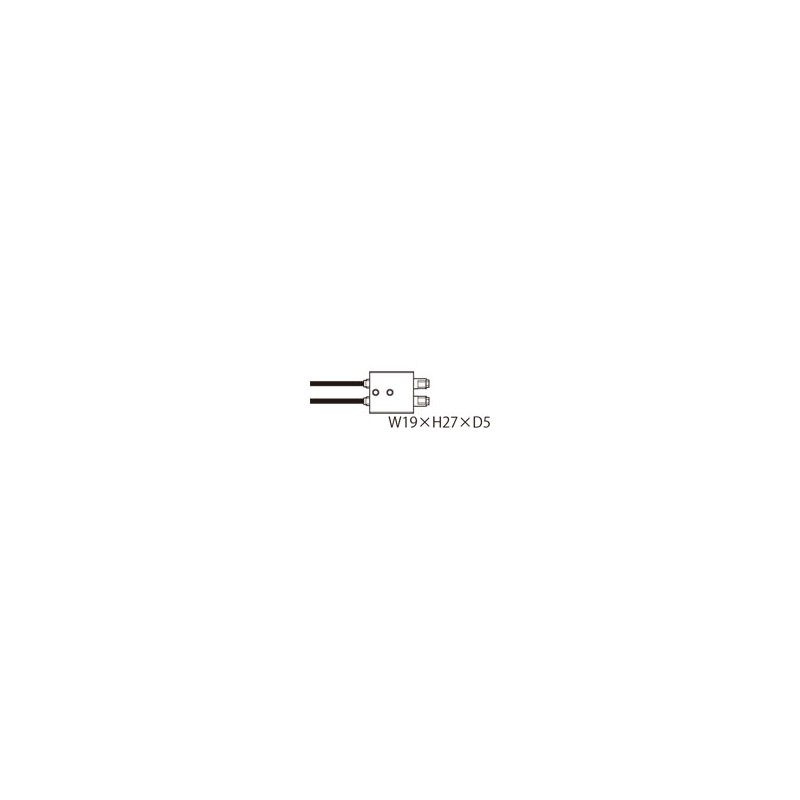

| Fiber head length | W19 x H27 x D5 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Fiber cable length | 2m |
| Allowable bending radius | R25 mm |
| Free-cut | Available |
| Semi-custom | Fiber length change |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | Heat-resistant |
| Environmental resistance : Ambient temperature MAX | 180 degrees |
| Environmental resistance : Ambient temperature MIN | -60 degrees |
| Sensing range（STD） | 16 mm 0.630 in (FX-500 series) |
| Sensing range（HYPR） | 60 mm 2.362 in (FX-500 series) |
| Sensing range（U-LG） | 32 mm 1.260 in (FX-500 series) |
| Sensing range（LONG） | 24 mm 0.945 in (FX-500 series) |
| Sensing range（FAST） | 13 mm 0.512 in (FX-500 series) |
| Sensing range（H-SP） | 2 to 6.5 mm 0.079 to 0.256 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| Datasheet 1: FDH18L31 - FDH18L31 | FD-H18-L31 | 4 Mbytes |
 |
| Download general catalog |
|
