UFDFA93 FD-FA93 PANASONIC Fiber (reflective, liquid sensing, pipe-mountable type, 6.5 x 28.3 x 17mm, bending..
UFDFA93
FD-FA93
FD-FA93
PANASONIC
Fiber (reflective, liquid sensing, pipe-mountable type, 6.5 x 28.3 x 17mm, bending radius R4, 2m, IP40)
Fiber Optic Flexible Direct Reflection, Liquid Detection, Pipe Mounting, 6.5 x 28.3 x 17mm, Bend Radius R4, 2m, IP40
FD-FA93_Reflective type Fiber_Liquid Leak / Liquid Detection Fiber_Liquid Leak / Liquid Detection Fiber
Fiber - PANASONIC > LIQUID DETECTION type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FD-FA93 |
| Part Number | FD-FA93 |
| Product | Reflective type Fiber |
| Details | Liquid Leak / Liquid Detection Fiber |
| Product name | Liquid Leak / Liquid Detection Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-FA93 |
| Part Number | FD-FA93 |
| Sensing mode | Reflective type |
| Fiber type | Pipe-mountable type, Liquid sensing |

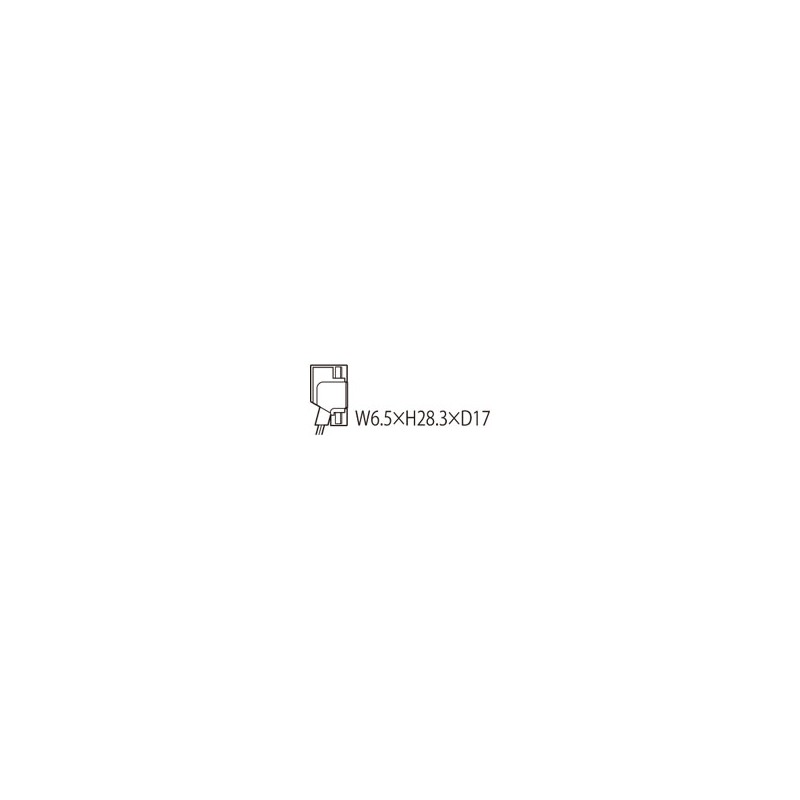

| Fiber head length | W6.5 x H28.3 x D17 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Fiber cable length | 2 m |
| Allowable bending radius | R4 mm |
| Free-cut | Available |
| Semi-custom | Fiber length change |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | Liquid leak detection / Liquid sensing |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 70 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FDFA93 - FD-FA93 | FD-FA93 | 4 Mbytes |
|
