Product Number | DP-102-M |
Part Number | DP-102-M |

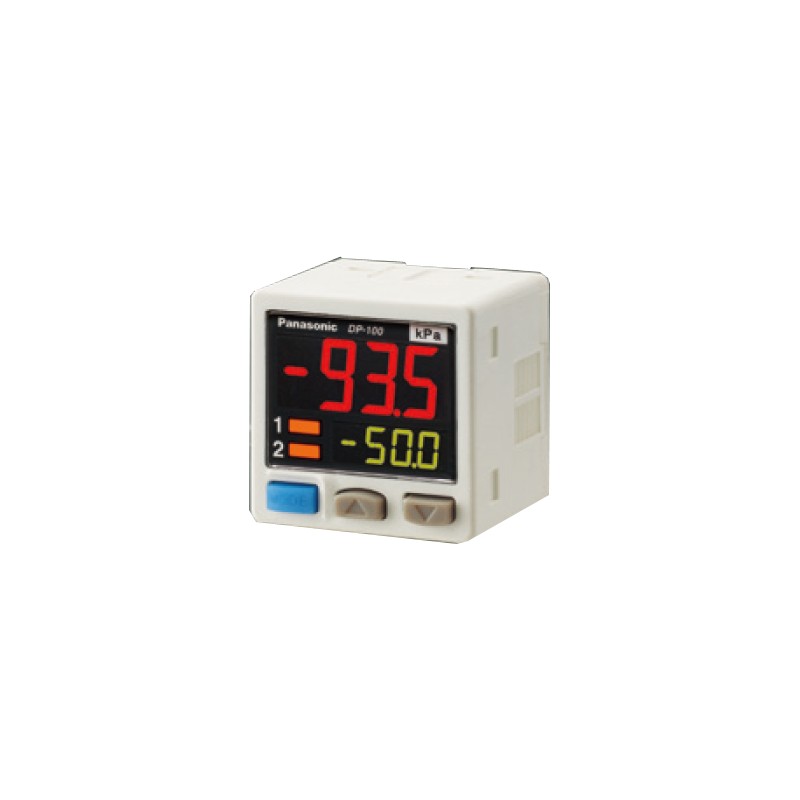

Product | Dual Display Digital Pressure Sensor [For Gas] |
Details | Short pressure port type |
Product name | Dual Display Digital Pressure Sensor [For Gas] DP-100 |
Item | Specifications |
---|---|
Product Number | DP-102-M |
Part Number | DP-102-M |
CE marking directive compliance | EMC Directive, RoHS Directive |
Type of pressure | Gauge pressure |
Rated pressure range | -0.100 to +1.000 MPa |
Set pressure range | -0.101 to +1.010 MPa -101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Pressure withstandability | 1.5 MPa |
Applicable fluid | Non-corrosive gas |
Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
Power consumption | Normal operation : 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
Comparative output | <NPN output> NPN open-collector transistor - Maximum sink current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and 0 V) - Residual voltage : 2 V or less (at 100 mA sink current) |
Comparative output : Output operation | NO / NC (selectable by key operation) |
Comparative output : Output modes | EASY mode / Hysteresis mode / Window comparator mode |
Comparative output : Hysteresis | Minimum 1 digit (variable)(however, 2 digits when using psi unit) |
Comparative output : Repeatability | ±0.2 % F.S. (within ±2 digits) |
Comparative output : Response time | 2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation |
Comparative output : Short-circuit protection | Incorporated |
External input | - |
Analog voltage output | - |
Analog current output | - |
Display | 4 digits + 4 digits 3-color LCD display (Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
Display : Displayable pressure range | -0.101 to +1.010 MPa -101 to +1,010 kPa -1.03 to +10.30 kgf/cm2 -1.01 to +10.10 bar -14.6 to +146.4 psi |
Indicator | Orange LED (Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
Protection | IP40 (IEC) |
Ambient temperature | -10 to +50 ℃+14 to +122 ℉, Storage : -10 to +60 ℃+14 to +140 ℉ |
Ambient humidity | 35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH |
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
Insulation resistance | 50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure |
Vibration resistance | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each (when panel is mounted: 10 to 150 Hz frequency, 0.75 mm0.030 inamplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
Shock resistance | 100 m/s2acceleration (10 G approx.) in X, Y and Z directions three times each |
Temperature characteristics | Within ±1 % F.S. (at +20 ℃+68 ℉) |
Material | Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber |
Connecting method | Connector |
Cable length | Total length up to 100 m328.084 ft(less than 30 m98.425 ftwhen conforming to CE marking) is possible with 0.3 mm2, or more, cable |
Weight | Net weight: 30 g approx., Gross weight: 120 g approx. |
Accessories | CN-14A-C2 (Connector attached cable 2 m6.562 ft): 1pc. (excluding M8 plug-in connector type) |
