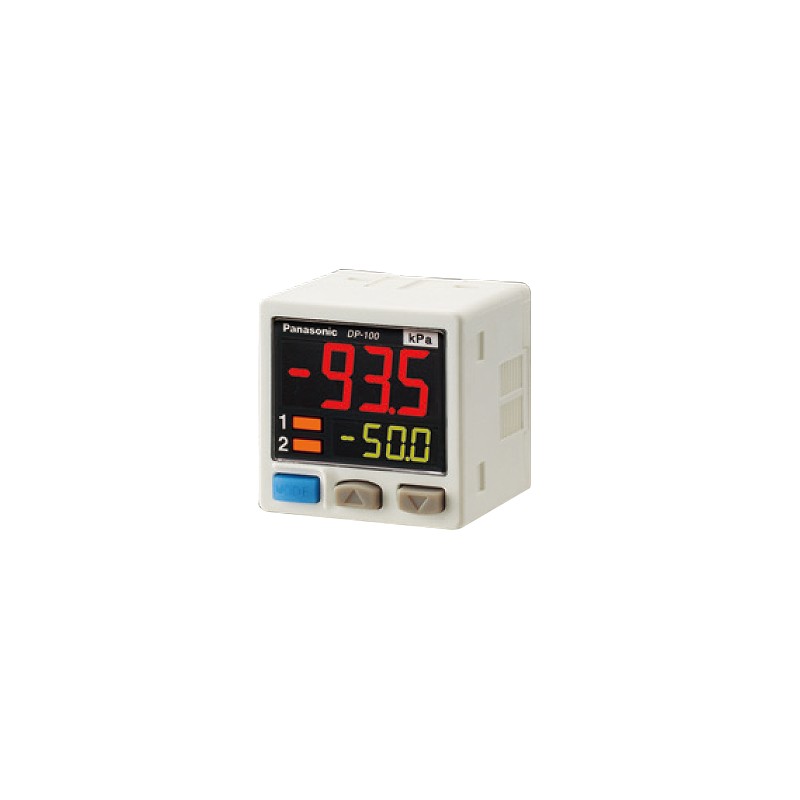

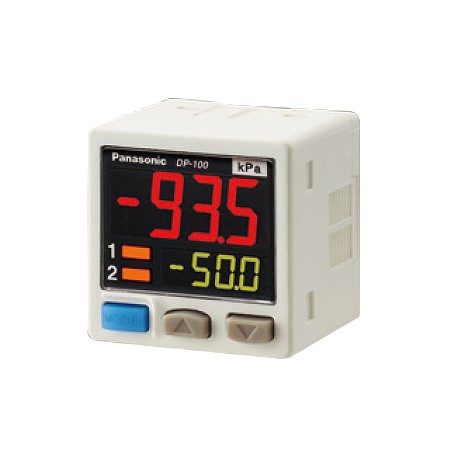

DP-101ZL3-M-P-C PANASONIC Pressure sensor, -1 to 1bar, IO Link, pressure connector short M5 female thread, M..
DP-101ZL3-M-P-C
PANASONIC
Pressure sensor, -1 to 1bar, IO Link, pressure connector short M5 female thread, M12 Pigtail type 0.3m
Pressure sensors - PANASONIC > DP100 dual display pressure sensor - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | DP-101ZL3-M-P-C |
| Part Number | DP-101ZL3-M-P-C |
| Product | Dual Display Digital Pressure Sensor [For Gas] |
| Details | M12 connector type |
| Product name | Dual Display Digital Pressure Sensor [For Gas] DP-100L |
| Item | Specifications |
|---|---|
| Product Number | DP-101ZL3-M-P-C |
| Part Number | DP-101ZL3-M-P-C |
| Regulatory compliance and certification | EMC Directive, RoHS Directive, UL/c-UL Certification |
| Type of pressure | Gauge pressure |
| Rated pressure range | −100.0 to +100.0 kPa |
| Set pressure range | -101.0 to +101.0kPa |
| Pressure withstandability | 500kPa |
| Applicable fluid | Non-corrosive gas |
| Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Power consumption | Normal operation: 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode: 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
| Communication output (C/Q):IO-Link communication | IO-Link Specification V1.1 (Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO). |
| Communication output (C/Q):Baud rate | COM3 (230.4 kbps) (Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO). |
| Communication output (C/Q):Process data | 4 byte (Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO). |
| Communication output (C/Q):Minimum cycle time | 1.0ms (Note:)When the sensor is used as an ordinary sensor, the communication output (C/Q) provides the same output operation as the control output (DO). |
| Control output (DO) | PNP open-collector transistor •Maximum source current: 50 mA • Applied voltage: 30 V DC or less (between output and +V) • Residual voltage: 2 V or less (at 50 mA source current) |
| Control output (DO):Output operation | NO/NC (selectable by key operation) |
| Control output (DO):Output operationOutput modes | EASY mode / Hysteresis mode / Window comparator mode |
| Control output (DO):Hysteresis | Minimum 1 digit (variable) |
| Control output (DO):Repeatability | ±0.1 % F.S. (within ±2 digits) |
| Control output (DO):Response time | 2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation |
| Control output (DO):Short-circuit protection | Incorporated |
| Display | 4 digits + 4 digits 3-color LCD display (Display refresh rate: 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
| Display:Displayable pressure range | -101.0 to +101.0 kPa |
| Output indicator | Orange LED(Output operation indicator 1: Flashes during IO-Link communication, Lights up when the control output is ON during non-IO-Link communication (synchronized with the output operation indicator 2) Output operation indicator 2: Lights up when the control output is ON) |
| Protection | IP40(IEC） |
| Ambient temperature | −10 to +50℃+14 to +122 ℉(No dew condensation or icing allowed), Storage: −10 to +60℃+14 to +140 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 50 MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each(when panel or flat attachment is mounted: 10 to 150 Hz frequency, 0.75 mm0.030 indouble amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
| Shock resistance | 100 m/s2acceleration (10 G approx.) in X, Y and Z directions three times each |
| Temperature characteristics | Within ±0.5 % F.S. (at +20℃+68℉) |
| Pressure port | M5 female thread |
| Material | Enclosure: PBT (glass fiber reinforced), LCD display: Acrylic, Pressure port: Stainless steel (SUS303) , Mounting threaded part: Brass (nickel plated), Switch part: Silicone rubber |
| Connecting method | Connector |
| Cable length | Total length up to 20 m65.617 ft(Condition of CE compliance less than 20 m65.617 ft)is possible with 0.3 mm2, or more, cable. |
| Weight | Net weight: 30 g approx., Gross weight: 95 g approx. |
| Accessories | Dedicated M12 connector cable, 0.3 m0.984 ftlong: 1 pc. |
| Remark | (Note:)measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20℃ +68℉. |
