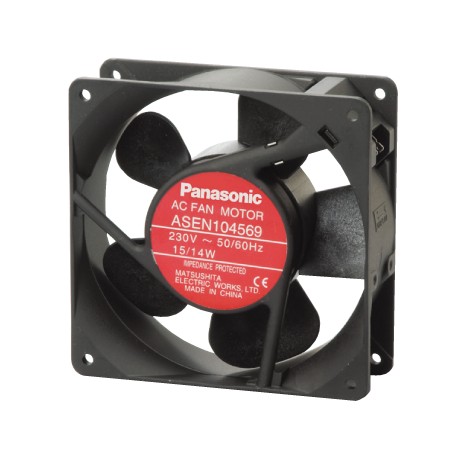

ASEN10416 PANASONIC AC fan motor,120x120x38mm, lead wire type standard speed 230V AC
ASEN10416
PANASONIC
AC fan motor,120x120x38mm, lead wire type standard speed 230V AC
Fans - PANASONIC > ASEN AC Fans - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | ASEN10416 |
| Part Number | ASEN10416 |
| Product | AC Fan Motor 120 x 38t |
| Details | Lead wire type, Standard speed |
| Product name | AC Fan Motor 120 x 38t(ASEN1) |
| Item | Specifications |
|---|---|
| Product Number | ASEN10416 |
| Part Number | ASEN10416 |
| Rated voltage | 230 V |
| Frequency | 50/60 Hz |
| Input power | 15/14 W +10/-20% |
| Rated current | 120/100 mA max |
| Locked current | 160/140 mA AVE |
| Rotation speed | 2,600/2,900 r/min |
| Max. air flow | 2.5/2.9 m3/min |
| Max. static pressure | 63.8/70.7 Pa min |
| Noise | 37/41(44/48) dB(A) AVE |
| Operating voltage range | plus or minus 10 % |
| Weight | 0.55 kg |
| Ambient temperature | -10degrees to +60degrees +14degrees Fahrenheit to +140degrees Fahrenheit |
| Ambient humidity | 15 to 85%RH |
| Storage temperature | -20degrees to +70degrees -4degrees Fahrenheit to +158degrees Fahrenheit |
| Breakdown voltage | 1,500 V AC for 1 min. (between charging section and frame) |
| Insulation resistance | Min. 100MOhm (at 500 V DC megger) (between charging section and frame) |
| Insulation class | UL: A class CSA: B class |
| Vibration resistance:Frequency | 10 to 55Hz |
| Vibration resistance:Double amplitude width | 0.75 mm |
| Vibration resistance:Applied direction | X, Y and Z directions |
| Vibration resistance:Applied time | 10 min. in each direction |
| Protection | Impedance protected |
| Mean life | MTTF: 50,000 hrs. (Time it takes until rotation frequency drops 30% of initial value when run continuously under 25degrees 77degrees Fahrenheit and room humidity at the nominal voltage.) |
| Materials used | Frame: aluminum alloy die-casting Propeller: plastic Bearings: ball bearings Lead wires: UL3266 and AWG22 Terminal: Equivalent to Faston #110 Label: 100 V class...black base, 200 V class...red base |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| ASEN10416 ASEN10416 ASEN10416 asen10416_e_cata1.pdf | 201 Kbytes |
 |
| ASEN10416 ASEN10416 ASEN10416 asen10416_e_cata2.pdf | 98 Kbytes |
|
| Download general catalog |
|
