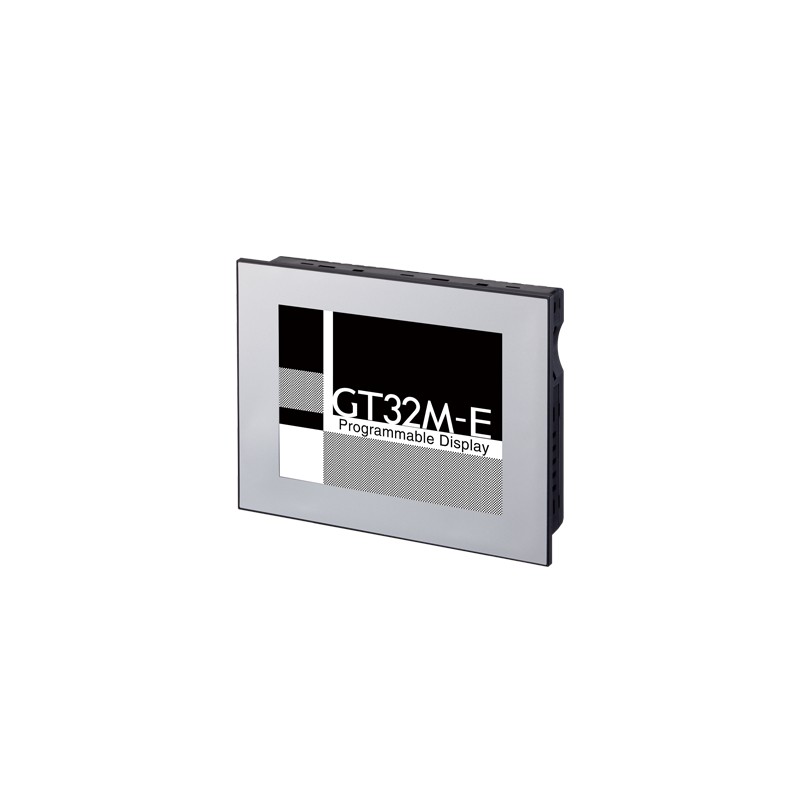

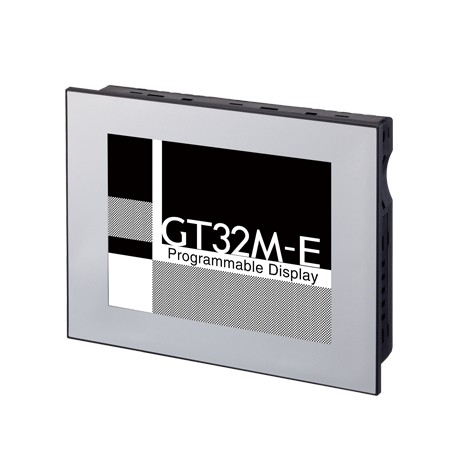

AIG32MQ05DE PANASONIC Touch panel GT32M-E 5.7", IP67, -20°C to + 60°C, Anti ultraviolet rays, Non-glare trea..
AIG32MQ05DE
PANASONIC
Touch panel GT32M-E 5.7", IP67, -20°C to + 60°C, Anti ultraviolet rays, Non-glare treatment, monochrome, 320x240 pix., RS422/485 + USB-B (prog.), 24V DC, SD/SDHC Card Slot, silver frame
GT32M 5.7" Touch Screen, Silver Frame, IP67, -20 to +60°, UV Filter, 16 Shades of Gray, RTC, 320 x 240 Dots. 24 VDC, USB, RS422/485
AIG32MQ05DE_Programmable Display_GT32-E_GT32M-E (Tough Series)
GT-series touch terminals - PANASONIC > GT32-E, outdoor 5,7" touch terminal - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | AIG32MQ05DE |
| Part Number | AIG32MQ05DE |
| Product | Programmable Display |
| Details | GT32M-E (Tough Series) |
| Product name | GT32-E |
| Item | Specifications |
|---|---|
| Product Number | AIG32MQ05DE |
| Part Number | AIG32MQ05DE |
| Power supply | 24 V DC |
| Operating voltage range | 21.6 to 26.4 V DC |
| Power consumption | 4.8 W or less |
| Power supply unit isolation method | Transformer isolation |
| Ambient temperature | -20 to +60 ℃ -4 to +140 ℉ Note: Please use within a temperature range of −20 to +55 ℃ −4 to +131 ℉ when horizontally installed and vertically installed in a portrait orientation and when using battery. |
| Ambient humidity | 10 to 90 %RH (at 25 ℃ 77 ℉), (No dew condensation allowed) |
| Storage temperature | -20 to +60 ℃ -4 to +140 ℉ |
| Storage humidity | 10 to 90 %RH (at 25 ℃ 77 ℉), (No dew condensation allowed) |
| Vibration resistance | 5 to 8.4 Hz, amplitude: 3.5 mm 0.138 in, 8.4 to 150 Hz, acceleration 9.8 m/s2, 10 sweeps each in X, Y and Z directions (1 octave / min.) |
| Shock resistance | 147 m/s2, 3 times in each of the X, Y and Z directions |
| Superposed noise suppression | 1,000 V [P-P] or more, pulse width of 50 ns, 1 micros between power supply terminals (by a noise simulator) |
| Environmental resistance | IP67 (in the initial stages), Dust-proof and drip-proof from the front of the panel only (Rubber packing is attached to the panel contact surface.) Note: This protective structure condition applies to the front surface of the installed panel. This condition does not guarantee usage in all environments provided by users. When reattaching the panel, replace the waterproof packing. |
| Net weight | 470 g approx. |
| Display:Display device | TFT monochrome LCD |
| Display:Resolution | 320 (W) x 240 (H) dots |
| Display:Display color | 2 colors (black/white, 16-gray scale) |
| Display:Displayable area | 115.2 (W) x 86.4 (H) mm 4.535 (W) x 3.402 (H) in |
| Display:Backlight | White LED |
| Functions:Font types | Fixed (GTWIN) : 8 × 8, 16 × 8, and 16 × 16 dots, CharacteRS- can be displayed in the 1, 2, 4, 8 or 16 times width or height. True Type (GTWIN): 10 to 192 dots, Windows®: 10 to 240 dots |
| Functions:Languages | Japanese, English, Simplified Chinese, Traditional Chinese, Korean, German, Italian, Spanish, French, Turkish, Russian, Vietnamese |
| Functions:Graphics | Straight lines, Continuous straight lines, Squares, Circles, Ovals, Arcs, Elliptic arcs, Fan shapes, Elliptic fan shapes, Beveled squares, Bitmaps |
| Functions:Number of screens | 180 screens approx. Note: The number of screens that can be registered varies according to the registered contents. |
| Functions:Screen setting No. | Base screens: No. 0 to 3FF, Key board screens: No. 0 to 7, Login screens: No. 0 to F |
| Functions:Part functions | Messages, Lamps, Switches, Function switches, Data, Bar graphs, Clocks, Keyboards, Line graphs, Alarm list, Alarm history, Custom parts (messages, lamps, switches) |
| Functions:Other functions | Recipe, Flow display, Write device, Multiple PLC connection, FP monitor, Language switching, GT link, Operation security, Data logging, SD recipe Note: The data logging and SD recipe functions are available with only models equipped with an SD / SDHC memory card slot. |
| Functions:Clock function | Provided with a built-in clock. (Can also refer to and display a PLC clock.) * Buy a commercially available battery. |
| Functions:Backlight brightness adjustment | Can be set on the menu screen, via the GT configuration screen of GTWIN, or via PLC. |
| Functions:Contrast adjustment | Unnecessary |
| Functions:Buzzer | Installed |
| Functions:Automatic communication settings | The communication speed (baud rate) is automatically changed if there is no response from the target equipment. |
| Functions:Through function | GT connected between PC and PLC allows PLC to be debugged without a direct connection to a PC. |
| Functions:Screen creation | Dedicated software should be used. Applicable OS: Windows® 2000 / XP / Vista / 7 / 8 / 8.1 / 10 Note:The 64-bit version is not supported except for Windows® 7 / 8 / 8.1 / 10. Windows is registered trademark or trademark of Microsoft Corporation in the United States and other countries. |
| Touch key resolution | Free layout (8 dots min.) |
| Touch key operation force | 0.8 N or less |
| Touch key life | 1 million operations or more (at 25 ℃ 77 ℉) |
| COM. Port:Communication standard | Conforms to RS422 / RS485 |
| COM. Port:External communication conditions | Baud rate: 9,600 bps, 19,200 bps, 38,400 bps, 57,600 bps, and 115,200 bps Data bits: 7 or 8 bits, Parity: None, Odd, Even, Stop bits: 1 bit |
| COM. Port:Protocol | Our FP series supported, General-purpose serial interface supported, and Other companies' PLC supported (Refer to the "PLC COMPATIBILITY TABLE" for manufacturers and models.) |
| COM. Port:Connector | Connector terminal block (8 pins) |
| Screen data transfer interface:Communication standard | USB1.1 |
| Screen data transfer interface:Protocol | Our dedicated protocol |
| Screen data transfer interface:Connector | USB TYPE-B |
| User’s memory:Memory | F-ROM |
| User's memory:Capacity | 12 Mbyte |
| Memory backup:Memory | SRAM |
| Memory backup:Backup battery | Lithium battery (replaceable) AFPX-BATT (Does not include with product.) |
