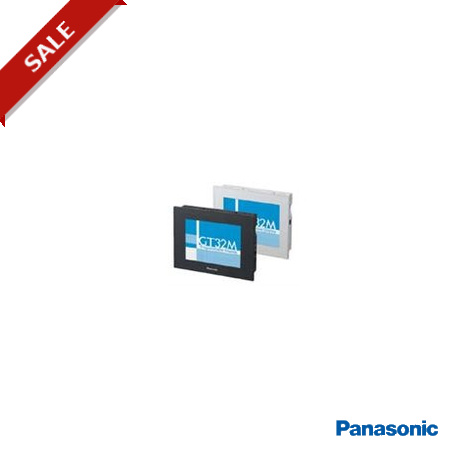

AIG32MQ04DJ AIG32MQ04D PANASONIC Touch panel GT32M 5.7", monochrome, 320x240 pix., RS422/485 + USB-B (prog.)..
AIG32MQ04DJ
AIG32MQ04D
PANASONIC
Touch panel GT32M 5.7", monochrome, 320x240 pix., RS422/485 + USB-B (prog.), 24V DC, SD/SDHC Card Slot, black frame
AIG32MQ04D_Programmable Display_GT32(Discontinued)_GT32M
GT-series touch terminals - PANASONIC > GT32, high performance 5,7" touch terminal - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | AIG32MQ04D |
| Part Number | AIG32MQ04D |
| Product | Programmable Display |
| Details | GT32M |
| Product name | GT32(Discontinued) |
| Item | Specifications |
|---|---|
| Product Number | AIG32MQ04D |
| Part Number | AIG32MQ04D |
| Power supply | 24 V DC |
| Operating voltage range | 21.6 to 26.4 V DC |
| Power consumption | 10 W or less |
| Power supply unit isolation method | Transformer isolation |
| Ambient temperature | 0 to 50 degrees 32 to 122 degrees Fahrenheit*5 *5 When the unit is being installed in a horizontal orientation, the usable range is 0 to +40 degrees 32 to +104 degrees Fahrenheit. |
| Ambient humidity | 20 to 85 % RH (at 25 degrees 77 degrees Fahrenheit), No condensation |
| Storage temperature | –20 to 60 degrees –4 to 140 degrees Fahrenheit |
| Storage humidity | 10 to 85 % RH (at 25 degrees 77 degrees Fahrenheit), No condensation |
| Vibration resistance | 10 to 55 Hz (1 minute cycle): Double amplitude: 0.75 mm 0.03 in, 10 minutes in each of the X, Y, and Z directions |
| Shock resistance | 98 m/s2 or more, 4 times in each of the X, Y, and Z directions |
| Superposed noise suppression | 1,000 V [P-P] or more, pulse width of 50 ns, 1 micros between power supply terminals (by a noise simulator) |
| Environmental resistance | IP65 (in the initial stages)*1 *1 This protective structure condition applies to the front surface of the installed panel. This condition does not guarantee usage in all environments provided by users. When reattaching the panel, replace the waterproof packing. |
| Net weight | 500 g approx. |
| Display:Display device | STN monochrome LCD |
| Display:Resolution | 320 (W) x 240 (H) dots |
| Display:Display color | 2 colors (blue/white) |
| Display:Displayable area | 113.2 (W) x 86.4 (H) mm 4.46 (W) x 3.40 (H) in |
| Display:Backlight | CFL *Not replaceable. Average life for backlight; GT32M: 75,000 hours (at 25 degrees 77 degrees Fahrenheit) |
| Functions:Font types | Fixed (GTWIN) : 8 x 8, 16 x 8, and 16 x 16 dots, Characters can be displayed in the 1, 2, 4, or 8 times width or height. True Type (GTWIN): 10 to 240 dots, Windows®: 10 to 240 dots |
| Functions:Languages | Japanese, English, Simplified Chinese, Traditional Chinese, Korean, German, Italian, Spanish, French, and Turkish |
| Functions:Graphics | Straight lines, Continuous straight lines, Squares, Circles, Ovals, Arcs, Elliptic arcs, Fan shapes, Elliptic fan shapes, Beveled squares and Bitmaps |
| Functions:Number of screens | 240 screens approx. *2 The number of screens that can be registered varies according to the registered contents. |
| Functions:Screen setting No. | No. 0 to 3FF |
| Functions:Part functions | Messages, Lamps, Switches, Function switches, Data, Bar graphs, Clocks, Keyboards, Line graphs, Alarm list, and Custom parts (messages, lamps, switches) |
| Functions:Other functions | Recipe, Flow display, Write device, Multiple PLC connection, FP monitor, Language switching, GT link, Operation security, Data logging and SD recipe*3 *3 The data logging and SD recipe functions are available with only models equipped with an SD / SDHC memory card slot. |
| Functions:Clock function | Provided with a built-in clock. (Can also refer to and display a PLC clock.) *Buy a commercially available battery. |
| Functions:Contrast adjustment | Contrast can be adjusted by using the touch panel. |
| Functions:Buzzer | Installed |
| Functions:Automatic communication settings | The communication speed (baud rate) is automatically changed if there is no response from the target equipment. |
| Functions:Through function | GT connected between a PC and PLC allows the PLC to be debugged without a direct connection with the PC. |
| Functions:Screen creation | Dedicated software should be used. Applicable OS: Windows® 2000/XP/Vista/7*9 *9 Not compatible with any 64-bit version of Windows®. |
| Touch key resolution | Free layout (8 dots min.) |
| Touch key operation force | 0.8 N or less |
| Touch key life | 1 million operations or more (at 25 degrees 77 degrees Fahrenheit) |
| COM. Port:Communication standard | Conforms to RS422 / RS485 |
| COM. Port:External communication conditions | Baud rate: 9,600 bps, 19,200 bps, 38,400 bps, 57,600 bps and 115,200 bps Data bits: 7 or 8 bits, Parity: None, Odd, Even, Stop bits: 1 bit |
| COM. Port:Protocol | Our FP series supported, General-purpose serial interface supported, Other companies' PLC supported (Refer to the "PLC COMPATIBILITY TABLE" for manufacturers and models.) |
| COM. Port:Connector | Connector terminal block (8 pins) |
| Screen data transfer interface:Communication standard | USB1.1 |
| Screen data transfer interface:Communication conditions with PC | — |
| Screen data transfer interface:Protocol | Our dedicated protocol |
| Screen data transfer interface:Connector | USB TYPE-B |
| Screen data transfer interface:Ethernet port | — *4 Simultaneous USB and Ethernet communications are not possible. |
| User’s memory:Memory | F-ROM |
| User's memory:Capacity | 2 Mbyte |
| Memory backup:Memory | SRAM |
| Memory backup:Backup battery | Lithium battery (replaceable) AFPX-BATT *Does not come with product. |
