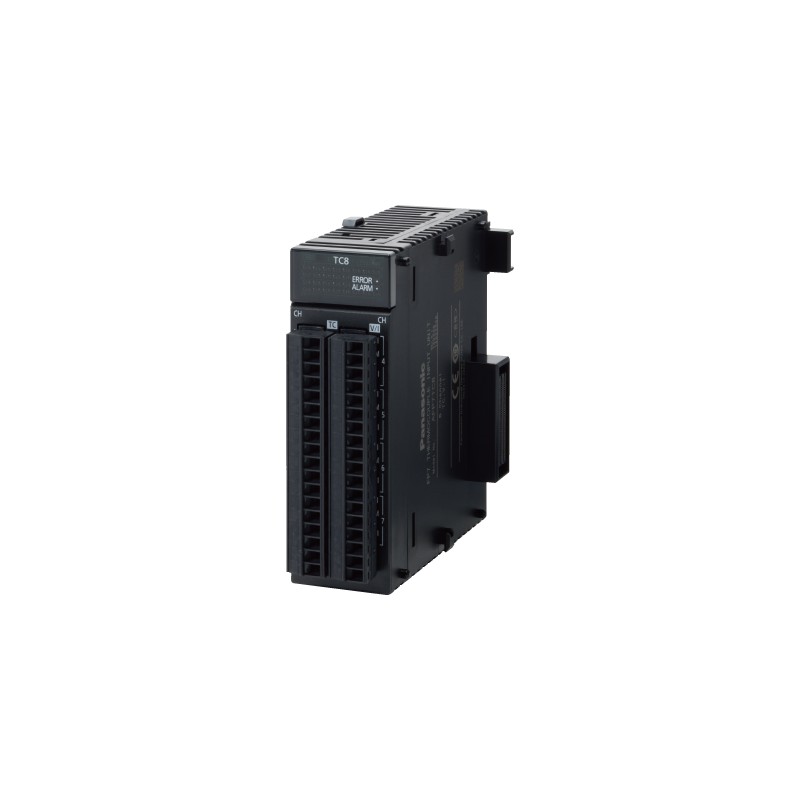

AFP7TC8 PANASONIC FP7 analog input unit 8x14/16-bit channels(+/-10V,0-5V, +/-100mV, 0-20mA, thermocoup.: S(-..
AFP7TC8
PANASONIC
FP7 analog input unit 8x14/16-bit channels(+/-10V,0-5V, +/-100mV, 0-20mA, thermocoup.: S(-15°C b. +1715°C),J,K(-215°C b. +1015°C),T,R,N,B,E,PLII,WRe5-26), MC conenctor
FP7 Programmable controllers
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | AFP7TC8 |
| Part Number | AFP7TC8 |
| Product | FP7 Temperature input units |
| Product name | FP7 Temperature input units |
| Item | Specifications |
|---|---|
| Product Number | AFP7TC8 |
| Part Number | AFP7TC8 |
| Number of channels | 8 channels |
| Input range(resolution):Thermocouple(resolution: 0.1℃ 32.18℉) | K1: -100.0 to 600.0degrees -148.0 to 1112.0degrees Fahrenheit / K2: -200.0 to 1000.0degrees -328.0 to 1832.0degrees Fahrenheit J1: -100.0 to 400.0degrees -148.0 to 752.0degrees Fahrenheit / J2: -200.0 to 750.0degrees -328.0 to 1382.0degrees Fahrenheit T: -270.0 to 400.0degrees -270.0 to 752.0degrees Fahrenheit / N: -270.0 to 1300.0degrees -270.0 to 2372.0degrees Fahrenheit R: 0.0 to 1760.0degrees 32.0 to 3200.0degrees Fahrenheit / S: 0.0 to 1760.0degrees 32.0 to 3200.0degrees Fahrenheit B: 0.0 to 1820.0degrees 32.0 to 3308.0degrees Fahrenheit / E: -270.0 to 1000.0degrees -270.0 to 1832.0degrees Fahrenheit PLII: 0.0 to 1390.0degrees 32.0 to 2534.0degrees Fahrenheit / WRe5-26: 0.0 to 2315.0degrees 32.0 to 4199.0degrees Fahrenheit |
| Input range(resolution):Voltage | -10 to 10V DC (resolution: 1/62,500) 0 to 5V DC (resolution: 1/31,250) 1 to 5V DC (resolution: 1/25,000)(Note) -100 to 100mV DC (resolution: 1/62,500) Resolution: max. 16 bits (Note) The full scale (F.S.) ranges of accuracy is 1 to 5 V DC for current input, respectively. |
| Input range(resolution):Current | 0 to 20 mA (resolution: 1/31,250) 4 to 20 mA (resolution: 1/25,000)(Note) Resolution: max. 16 bits (Note) The full scale (F.S.) ranges of accuracy is 0 to 20 mA for current input, respectively. |
| Conversion speed | 5 ms/channel + 5 ms (Note) 25 ms/channel + 25 ms Add the drift compensation measuring time to the number of measuring channels. (Note) The AC noise removal is disabled. |
| Overall accuracy | plus or minus 0.1%F.S.or less(at 25degrees 77degrees Fahrenheit ) plus or minus 0.3%F.S.or less(at 0 to +55degrees +32 to +131degrees Fahrenheit ) |
| Reference contact compensation accuracy | plus or minus 1.0degrees 33.8degrees Fahrenheit (with thermocouple input) |
| Input impedance:Voltage | 1 MOhm |
| Input impedance:Current | 250 Ohm |
| Insulation method:Between input terminals and internal circuit | Photocoupler and isolated DC/DC converter |
| Insulation method:Between channels | PhotoMOS relay |
| Conversion execution / non-execution channel setting | Selectable per channel unit |
| Input range change method | Selectable per channel |
| Digital processing:Averaging | Cycle, time, moving |
| Digital processing:Scale conversion setting | Any value within plus or minus 30,000 (Voltage and current range only) |
| Digital processing:Offset setting | Any value within plus or minus 3,000 |
| Digital processing:Gain setting | plus or minus 10% |
| Comparison of upper and lower limit values | Selectable for one channel |
| Max. and min. value holding | Selectable for one channel |
| Broken wire detection | Available |
| Connection method | Connector type terminal block |
