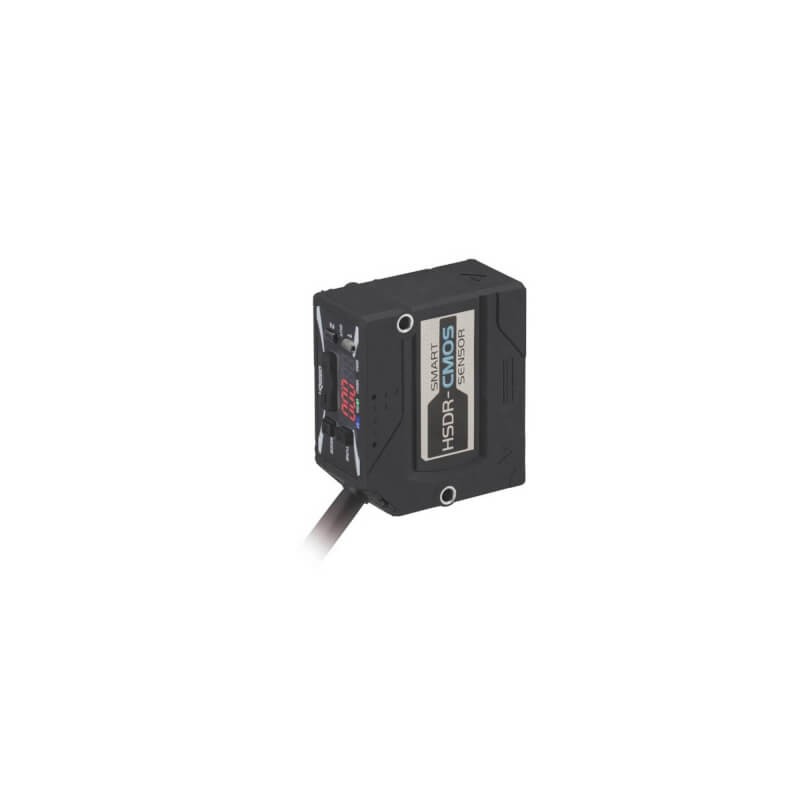

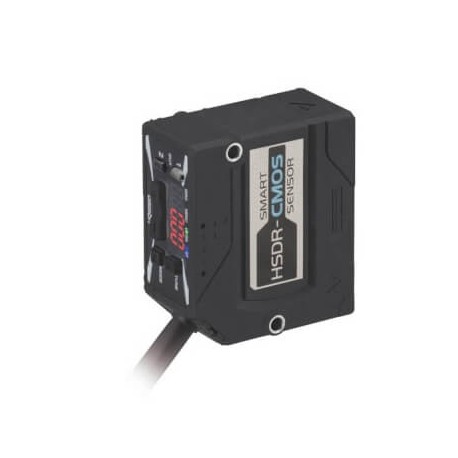

ZX1-LD50A81 2M ZX 1154D ZX1LD50A812M OMRON Laser Sensor ZX1 50±10mm 2micras PNP Cable 2m
ZX1-LD50A81 2M
ZX 1154D
ZX1LD50A812M
OMRON
Laser Sensor ZX1 50±10mm 2micras PNP Cable 2m
Laser displacement sensor, 50 +/- 10 mm. PNP, 2m cable
Sensors > Optical distance sensor
Advanced sensors > ZX
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cuboid |
| Laser protection class (EF004027) | Class 2 |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Standard for interfaces (EF004017) | Analogue |
| Setting procedure (EF003994) | Teach-In |
| Scanning principle (EF003935) | Reflection system |
| Type of analogy output (EF003958) | 4 mA ... 20 mA |
| Material of optical surface (EF004134) | Glass |
| Sensing mode (EF007503) | Light switching |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Cable |
| Housing material (EF001596) | Plastic |
| Type of light (EF004029) | Laser diode, red light |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Type of switching output (EF003962) | PNP |
| Operation agent-safety class (EF003982) | Safety class 3 |
| Explosion safety category for gas (EF003997) | None |
| Measuring principle for optical distance measurement (EF004060) | Triangulation |
| With time function (EF003582) | Yes |
| Pre failure notice (EF004129) | No |
| AWG-number (EF007010) | 26 |
| Relative linearity deflection (EF004034) | 0.3 % |
| Signalling interval (EF003964) | 500 Hz |
| Light dot (EF004030) | 0.02 mm² |
| Width sensor (EF007094) | 24.1 mm |
| Height of sensor (EF007283) | 52.5 mm |
| Geometrical resolution (EF004010) | 0.002 mm |
| Max. output current (EF001315) | 100 mA |
| Relative repeat accuracy (EF004100) | 0.004 % |
| Length of sensor (EF007334) | 49 mm |
| Switching frequency (EF003587) | 500 Hz |
| Measuring range length (EF008213) | 40 mm |
| Supply voltage (EF004127) | 10 V |
| Ambient temperature (EF002386) | -10 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| ZX1-LD50A81 2M ZX1LD50A812M ZX 1154D EN_ZX1-LD50A81-2M.pdf | 2 Mbytes |
|
| ZX1-LD50A81 2M ZX1LD50A812M ZX 1154D e416_zx1_smart_laser_sensor_with_built_in_amplifier_datasheet_en.pdf | 2 Mbytes |
|
