ZX-GT28S41 ZX 5004C ZXGT28S41 OMRON Sensor in barrier 500mm 10µ Width max. 28mm PNP
ZX-GT28S41
ZX 5004C
ZXGT28S41
OMRON
Sensor in barrier 500mm 10µ Width max. 28mm PNP

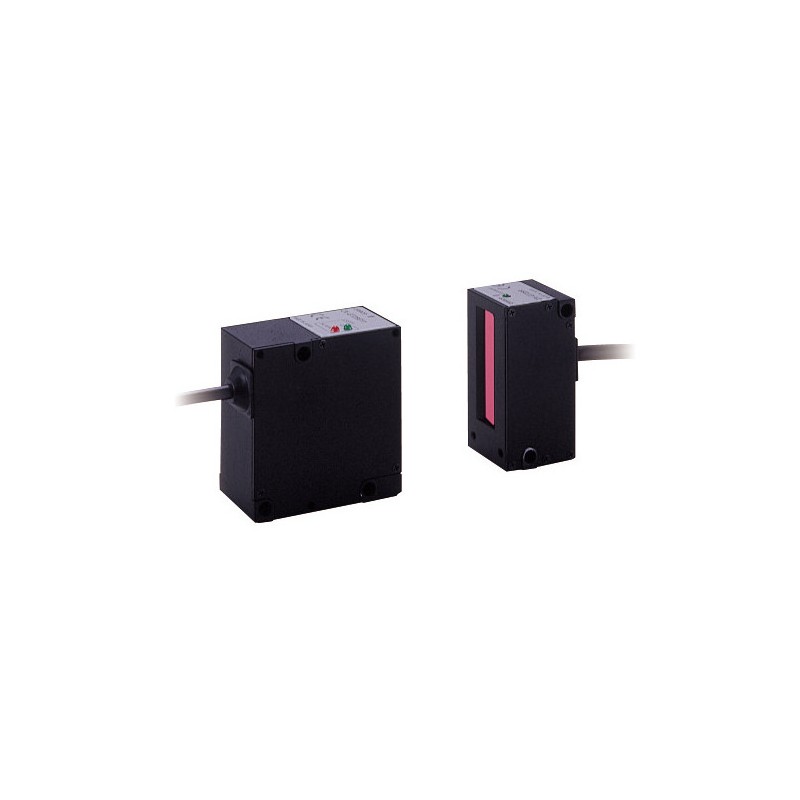

Sensor head separate type, measuring width 28mm, distance 500mm, PNP (for use with ZX-GTC)
Sensors > Through beam photoelectric sensor
Advanced sensors > ZX
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲- High accuracy: 5 – 10µm
- All surfaces
- Long sensing distance: < 500 mm
- Line width up to 28mm
- Calculation unit for multiple heads
Specifications & ordering info
Ordering information
Sensors
Controller
Accessories (order separately)
Set of interface unit and setup software PCs
Interface unit(RS-232C/binary output)
Setup software PCs
Calculating units
Receiver-controller extension cable
Up to two extension cables can be connected. However, be sure to limit the total extension cable length between the receiver and the controller to 30 meters (including the receiver cable). | |||
|---|---|---|---|
Specifications
Sensor
Visible semiconductor laser diode (wavelength 650 nm, CLASS 1 of EN60825-1/IEC60825-1, CLASS of FDA(21CFR 1040.10 and 1040.11) | ||||
0.5 mm dia.1 | 0.5 mm dia.1 | |||
±0.1% F.S.2 | ||||
10 µm (number of process values to average: 16)3 | ||||
±0.01% F.S/C4 | ||||
ON: Short-circuited with 0 V or 1.5 V max. | ON: Short-circuited with power supply voltage or | |||
NPN open-collector output | PNP open-collector output | |||
1,000 lx (incandescent light)5 | ||||
Operating: 0 to 40°C, storage: -15 to 50°C (with no icing or condensation) | ||||
10 to 150 Hz single-amplitude: 0.75 mm for 80 min each in X, Y and Z directions | ||||
Controller
Measurement cycle6 | 1.5 ms (standard mode (NORM)) | ||
Analog output8 | For current output: 4 to 20 mA/F.S., max. load resistance 300Ω | ||
Timing input, bank switching input, zero reset input, reset input | ON: short-circuited with 0 V or 1.5 V max. | ON: short-circuited with power supply voltage or | |
NPN open-collector output | PNP open-collector output | ||
Judgment output indicator: HIGH (orange), PASS (green), LOW (orange) | |||
Interrupted beam width measurement, incident beam width measurement, outer diameter measurement, center position measurement, IC lead pitch, | |||
Measured value, resolution, threshold, voltage output value, current output value (number of display digits can be changed) | |||
Sample hold, peak hold, bottom hold, peak-to-peak hold, average hold, delay hold | |||
Optical axis adjust mode/light intensityt writing mode, variable binary level, variable edge filter, analog output scaling | |||
2 possible on up to two controllers (calculation Unit ZX-CAL2 is required for connecting controllers to each other.) A-B, A+B, width | |||
Measurement cycle setting, threshold setting, hysteresis setting, initialization, key lock | |||
Operating: 0 to 50°C, storage: -15 to 60°C (with no icing or condensation) | |||
10 to 150 Hz single-amplitude: 0.35 mm for 80 min each in X, Y and Z directions | |||
Case: PBT (polybutylene terephthalate), cover: Polycarbonate | |||
Interface unit
1.Distance between emitter and receiver: 500 mm, measurement object at 250 mm from receiver. Glass ends of chamfer 0.1 mm or more can be detected in glass edge measurement mode. (at binary level 70%)
2.Linearity is given to be a typical error with respect to an ideal straight line when the distance between the emitter and receiver is 100 mm and light is blocked at a distance of 50 mm from the receiver. (On the ZX-GT2840_, the measurement object is measured at a distance of 20 mm from the receiver.)
3.The amount of fluctuation (±3σ) in the analog output when the distance between the emitter and receiver is 100 mm and a ZX-GTC_ is connected
4.Change in the light cutoff value on one side when the distance between the emitter and receiver is 100 mm and the light is half-cutoff at a distance of 50 mm from the receiver (On the
ZX-GT2840_, the measurement object is measured at a distance of 20 mm from the receiver.)
6.The first response time is “measurement cycle x (number of samples to average setting + 1) + 1 ms” max. For the second response time onwards, the specified measurement cycle time is output.
7.The response time in the high-speed mode (FAST) for the IC lead pitch and IC lead width judgment modes is 1 ms.
11.Normally, wire the sync output wire directly to the emitter's sync input wire and run the controller in the standard mode. On an NPN type controller, use an NPN type emitter, and on a PNP type controller, use a PNP type emitter. Wiring of the sync wires is not required when the controller is run in the high-speed mode.
(Note, however, that the controller becomes more susceptible to the influence of ambient light in this case.)
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP40 |
| Material of optical surface (EF004134) | Glass |
| Type of interface for safety communication (EF003956) | Other |
| Housing material (EF001596) | Plastic |
| Operation agent-safety class (EF003982) | Safety class 1 |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cuboid |
| Scope of delivery of the one-way system (EF004032) | Transmitter and receiver |
| Laser protection class (EF004027) | Class 1 |
| Setting procedure (EF003994) | Other |
| Sensing mode (EF007503) | Light switching |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Cable with connector |
| Type of light (EF004029) | Laser diode, red light |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Type of switching output (EF003962) | PNP |
| With communication interface RS-485 (EF007314) | No |
| With communication interface SSD (EF007315) | No |
| With communication interface SSI (EF007316) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With communication interface RS-232 (EF007312) | No |
| With monitoring function downstream switching devices (EF004052) | No |
| With communication interface INTERBUS (EF007310) | No |
| With communication interface CANOpen (EF007307) | No |
| With communication interface Ethernet (EF007309) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With communication interface AS-Interface (EF007306) | No |
| With restart blockage (EF004054) | No |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| With communication interface DeviceNet (EF007308) | No |
| With reflector (EF007448) | No |
| With communication interface PROFIBUS (EF007311) | No |
| Suitable for safety functions (EF001597) | No |
| With communication interface analogue (EF007305) | No |
| With communication interface RS-422 (EF007313) | No |
| With time function (EF003582) | No |
| Pre failure notice (EF004129) | No |
| With other analogue output (EF007485) | No |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Max. opening angle (EF002642) | 0 ° |
| Height of sensor (EF007283) | 31 mm |
| Switching frequency (EF003587) | 1000 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Number of protected contact energized outputs (EF003952) | 0 |
| Max. switching distance (EF007367) | 500 mm |
| AWG-number (EF007010) | 24 |
| Light dot (EF004030) | 14 mm² |
| Wavelength of the sensor (EF004132) | 650 nm |
| Response time (EF004094) | 0.5 ms |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Width sensor (EF007094) | 57.5 mm |
| Rated switching distance (EF008289) | 500 mm |
| Max. output current (EF001315) | 20 mA |
| Length of sensor (EF007334) | 91 mm |
| Rated control supply voltage DC (EF003980) | 21.6 V |
| Ambient temperature (EF002386) | -25 °C |
