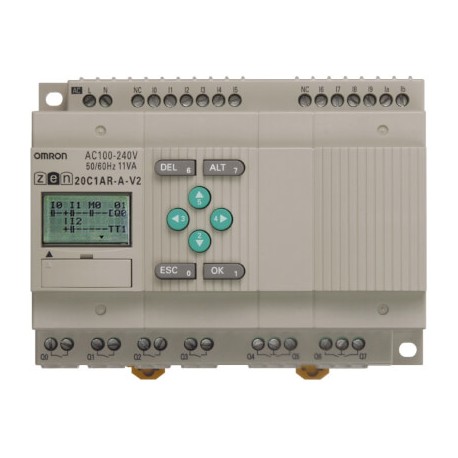

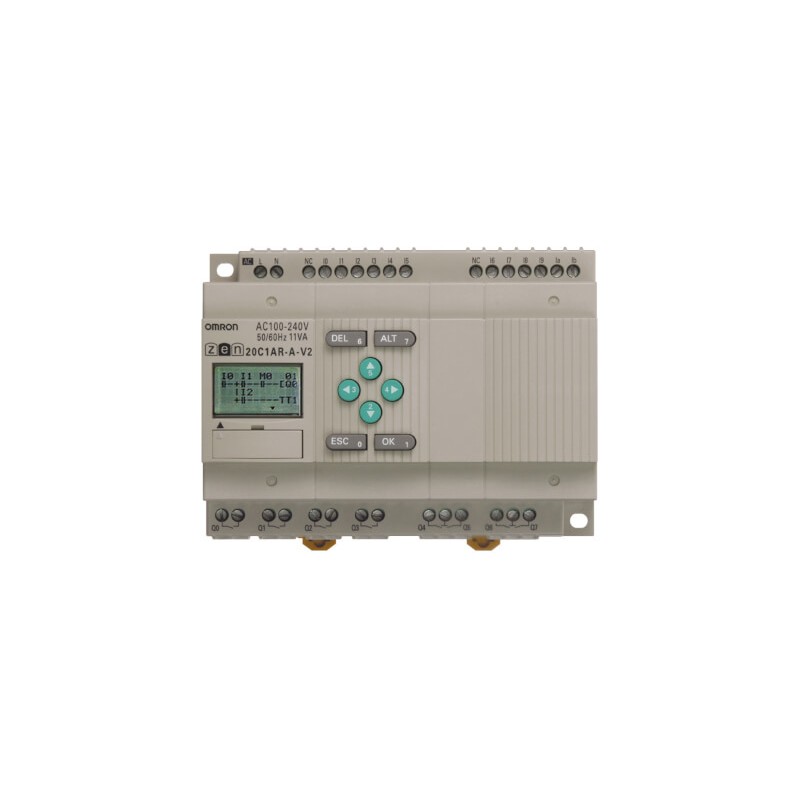

View larger Images are for illustrative purposes only. Please refer to data sheet for details.

ZEN-20C3DR-D-V2 ZEN 3018D ZEN20C3DRDV2.1 OMRON CPU 12/8 Ent. DC Salt. relay LCD RTC Not exp 24DC

Name: ZEN-20C3DR-D-V2 ZEN 3018D ZEN20C3DRDV2.1 OMRON CPU 12/8 Ent. DC Salt. relay LCD RTC Not exp 24DC
Brand: OMRON
SKU: OMRZEN3018D
Availability: Discontinued

0/5 - 0 Opiniones

Reference: ZEN-20C3DR-D-V2

Code: ZEN 3018D

Catalog Number: ZEN20C3DRDV2.1

Manufacturer: OMRON

Description:

CPU 12/8 Ent. DC Salt. relay LCD RTC Not exp 24DC

CPU 12/8 Ent. DC Ps. LCD Relay RTC No exp 24DC

More details

Categories:

Programmable relays > ZEN

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Guarantee, repair and return.

* This article may be obsolete.

Go to successor article: CP2E-N20DR-D CP2W0007A

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products

Best sellers

▲

More info

▲

Features

Extended flexible automation

With the ZEN-20 I/O you get in one unit 12 Inputs and 8 Outputs relays or transistor. Herewith you can do a lot of bigger scale automation whereas the 10 I/O versions are just to short of I/O’s. The 20 I/O unit is available in three different versions starting from C1 with LCD display, control/ program buttons, calendar and clock or C2 with LED status indication or C3 same as C1 but fixed I/O.

ZEN-20C1/C2 expandable up to 44 I/Os
ZEN DC units have analogue input 0-10 VDC
DC models have as well high speed counter 150 Hz.
Expansion available with relay output or transistor output

Ordering information

Name	Number of I/O points	Inputs (I)/ power supply		Outputs (Q)		Type	LCD, buttons (B), calendar and clock	Analog input/ comparators (A)	8-digit counter (F)/ comparators (G)	No. of bits 16	No. of bits 8	Size in mm (H×W×D)	Order code
CPU units	20	12	100 to 240 VAC	8	Relays	LCD	yes	-	-	Work bits (M) Holding bits (H) Timers (T) Counters (C) Weekly timers (☐) LCD display (D) Timer/counter comparator (P)	Holding timers (#) Button input (B)	90×122.5×56	ZEN-20C1AR-A-V2
	Expandable up to 44 I/O		100 to 240 VAC			LED	-	-	-				ZEN-20C2AR-A-V2
			12 to 24 VDC			LCD	yes	yes / 4	yes / 4				ZEN-20C1DR-D-V2
						LED	-	yes / 4	yes / 4				ZEN-20C1DR-D-V2
					Transistors	LCD	yes	yes / 4	yes / 4				ZEN-20C1DT-D-V2
					Transistors	LED	-	yes / 4	yes / 4				ZEN-20C2DT-D-V2
	Fixed I/O		100 to 240 VAC		Relays	LCD	yes	-	yes / 4				ZEN-20C3AR-A-V2
	Fixed I/O		12 to 24 VDC		Relays	LCD	yes	yes / 4	yes / 4				ZEN-20C3DR-D-V2

Specifications

Item	Specifications
Item	ZEN-20C_AR-A-V2	ZEN-20C_D_-D-V2
Power supply voltage	100 to 240 VAC, 50/60 Hz	12 to 24 VDC (DC ripple rate: 5%)
Rated power supply voltage	85 to 264 VAC	10.8 to 28.8 VDC
Power consumption	11 VA max.	5 W max.
Inrush current	4 A max.	30 A max.
Ambient temperature	0°C to 55°C (-25°C to 55°C for ZEN-20C2 models (LED))
Ambient storage	-20°C to 55°C (-40°C to 75°C for ZEN-20C2 models (LED))
Control method	Stored program control
I/O control method	Cyclic scan
Programming language	Ladder diagram
Program capacity	96 lines (3 input conditions and 1 output per line)
LCD display	12 characters x 4 lines, with backlight (LCD-type CPU unit only)
Operation keys	8 (4 cursor keys and 4 operation keys) (LCD-type CPU unit only)
Super-capacitor holding time	2 days min. (25°C)
Battery life (ZEN-BAT01)	10 years min. (25°C)
Calendar & Clock function	Accuracy: ±15 s/month (at 25°C) if applicable

Accessories

Name	Description	Order code
Memory Cassette	EEPROM (for data security and copying)	ZEN-ME01
Battery unit	Battery (keeps time, date and bit values for 10 years at 25°C)	ZEN-BAT01
Connecting Cable	For the programming software, RS-232C cable, 9-way `D' connector for PC	ZEN-CIF01
USB-Serial conversion cable	USB-Serial conversion cable (to be used in combination with ZEN-CIF01)	CS1W-CIF31
ZEN support software	Runs on Windows ME, 2000, XP, NT4.0 Service Pack 3, Vista	ZEN-SOFT01-V4

Datasheet - PDF

▲

Title:	Size:	Type:
PDF CATALOGO OMRON AUTOMATION EN.pdf	19 Mbytes
PDF CATALOG OMRON 2024 EN.pdf	25 Mbytes
ZEN-20C3DR-D-V2 ZEN20C3DRDV2.1 ZEN 3018D l106_zen_v2_programmable_relay_datasheet_en.pdf	3 Mbytes
ZEN-20C3DR-D-V2 ZEN20C3DRDV2.1 ZEN 3018D z211_zen_v2_operation_manual_en.pdf	3 Mbytes
