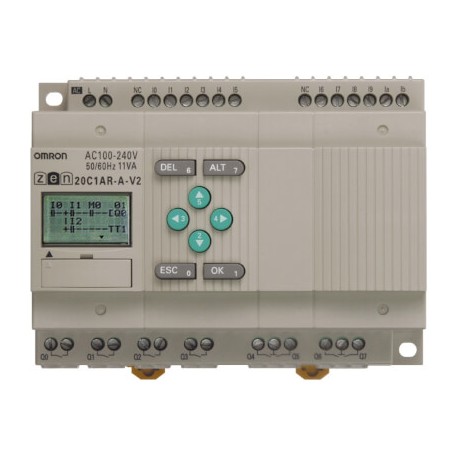

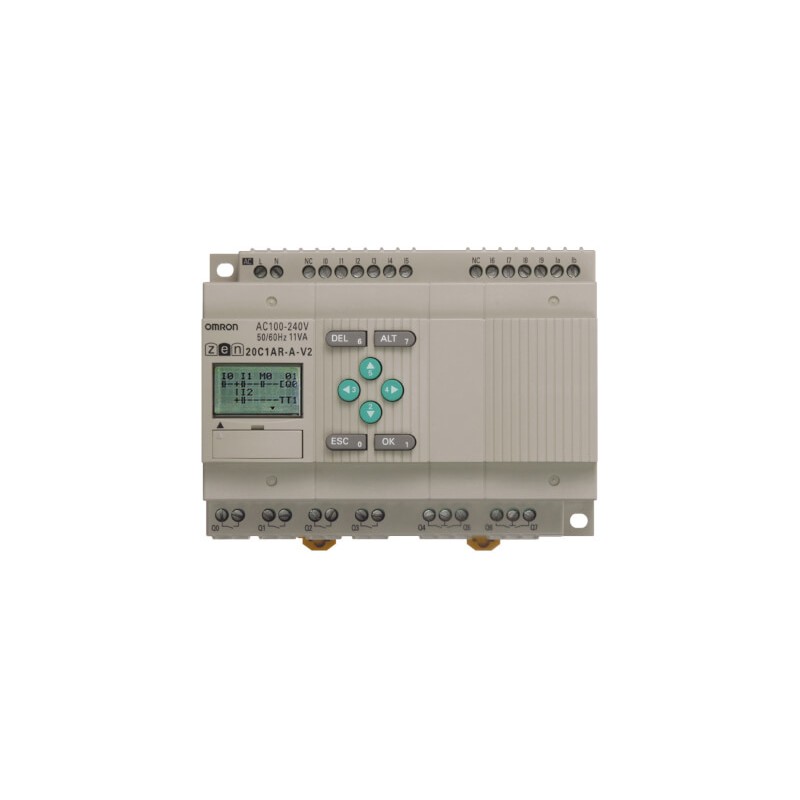

ZEN-20C1DR-D-V2 ZEN 3023M ZEN20C1DRDV2,1 OMRON CPU 12/8 Ent. DC Salt. relay LCD RTC 24DC
ZEN-20C1DR-D-V2
ZEN 3023M
ZEN20C1DRDV2.1
OMRON
CPU 12/8 Ent. DC Salt. relay LCD RTC 24DC
CPU 12/8 Ent. DC Ps. RTC 24DC LCD relay
Programmable relay, 24 VDC supply, 12x 24 VDC inputs (2 of which can be 0-10 V analog inputs), 8x relay outputs 5 A, RTC, LCD display
PLC's > Logic module
Programmable relays > ZEN
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Extended flexible automation
With the ZEN-20 I/O you get in one unit 12 Inputs and 8 Outputs relays or transistor. Herewith you can do a lot of bigger scale automation whereas the 10 I/O versions are just to short of I/O’s. The 20 I/O unit is available in three different versions starting from C1 with LCD display, control/ program buttons, calendar and clock or C2 with LED status indication or C3 same as C1 but fixed I/O.
- ZEN-20C1/C2 expandable up to 44 I/Os
- ZEN DC units have analogue input 0-10 VDC
- DC models have as well high speed counter 150 Hz.
- Expansion available with relay output or transistor output
Ordering information
Work bits (M) | |||||||||||||
Specifications
12 characters x 4 lines, with backlight (LCD-type CPU unit only) | ||
8 (4 cursor keys and 4 operation keys) (LCD-type CPU unit only) | ||
Accessories
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP20 |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Radio standard UMTS (EF008525) | No |
| Expansion device (EF007163) | Yes |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| IO link master (EF007298) | No |
| Rack-assembly possible (EF007018) | No |
| Supporting protocol for KNX (EF003055) | No |
| Basic device (EF007279) | Yes |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Radio standard GSM (EF008524) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| With time switch clock (EF000256) | Yes |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Certified for UL hazardous location class III (EF017627) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Radio standard GPRS (EF008523) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| With relay output (EF003198) | Yes |
| Certified for UL hazardous location class I (EF017622) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Wall mounting/direct mounting (EF007020) | Yes |
| Front built-in possible (EF007016) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Redundancy (EF003156) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Radio standard Bluetooth (EF007178) | No |
| Suitable for safety functions (EF001597) | No |
| With display (EF000458) | Yes |
| With optical interface (EF003028) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Expandable (EF000119) | Yes |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| Supporting protocol for ASI (EF003051) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Number of HW-interfaces other (EF003027) | 1 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Width (EF000008) | 122.5 mm |
| Number of digital inputs (EF001992) | 12 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Depth (EF000049) | 56 mm |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of analogue inputs (EF001994) | 2 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of digital outputs (EF001993) | 8 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Switching current (EF000188) | 5 A |
| Number of analogue outputs (EF001995) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 1 |
| Number of HW-interfaces RS-485 (EF003023) | 1 |
| Height (EF000040) | 90 mm |
| Supply voltage DC (EF007534) | 10.8 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| ZEN-20C1DR-D-V2 ZEN20C1DRDV2.1 ZEN 3023M l106_zen_v2_programmable_relay_datasheet_en.pdf | 3 Mbytes |
|
| ZEN-20C1DR-D-V2 ZEN20C1DRDV2.1 ZEN 3023M z211_zen_v2_operation_manual_en.pdf | 3 Mbytes |
|
